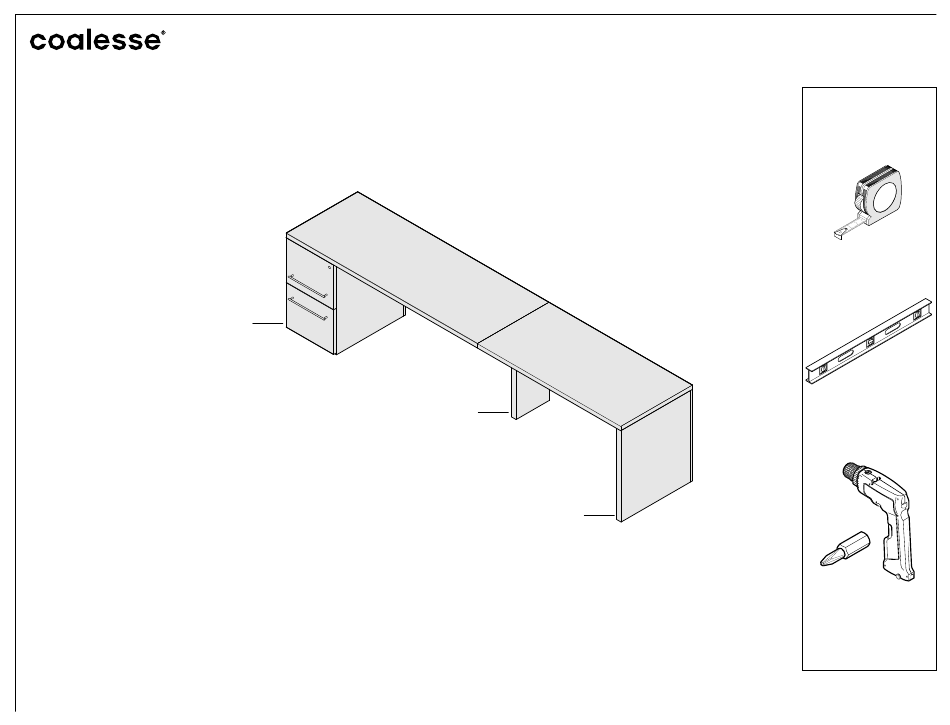

Coalesse tX2 Assembly Instructions

Flex-tops, includes pedestals, inside supports, and end panels

tX2 - Flex-Tops, includes Pedestals,

Inside Supports, and End Panels

PEDESTAL, page 2

INSIDE SUPPORT, page 4

END PANEL, page 3

If you have a problem, ques tion, or reques t, call

your local dealer, or S teelcas e Line 1 at

888.S T E E L C A S E (888.783.3522)

for immediate action by people who want to help you.

(Outs ide the U.S .A., C anada, Mexico, P uerto R ico,

and the U.S . V irgin Is lands , call: 1.616.247.2500)

Or vis it our webs ite: www.s teelcas e.com

2008 S teelcas e Inc.

G rand R apids , MI 49501

P age 1 of 4

U.S .A.

939503304 R ev A

P rinted in U.S .A.

Table of Contents

Need help?

Do you have a question about the tX2 and is the answer not in the manual?

Page 1 - Flex-Tops, includes Pedestals, Inside Supports, and End Panels PEDESTAL, page 2 INSIDE SUPPORT, page 4 END PANEL, page 3 If you have a problem, ques tion, or reques t, call your local dealer, or S teelcas e Line 1 at 888.S T E E L C A S E (888.783.3522)
Page 2 INSTALLING A PEDESTAL TO A WORKSURFACE Remove drawers from pedestal. Attach FILLER STRIP Install Filler Strip on rear of pedestal. to rear panel of pedestal with screws. Carefully lay top bottom side up onto carpet or other soft, clean material. Position pedestal as shown, with the filler strip flush with the back edge of top.
Page 3 INSTALLING AN END PANEL TO A WORKSURFACE Attach FILLER STRIP Carefully lay top bottom side up onto carpet to end panel with or other soft, clean material. (3) screws. Assemble filler strip to end panel as shown. Attach a cantilever bracket to end panel. Install (2) angle brackets to end panel.
Page 4 INSTALLING AN INSIDE SUPPORT NOTE: You must use an inside support panel to join and provide support when two tops join together, or when there is an unsupported span of more than 62" . Attach (2) angle brackets to support leg. Attach (2) cantilever brackets to support leg.
