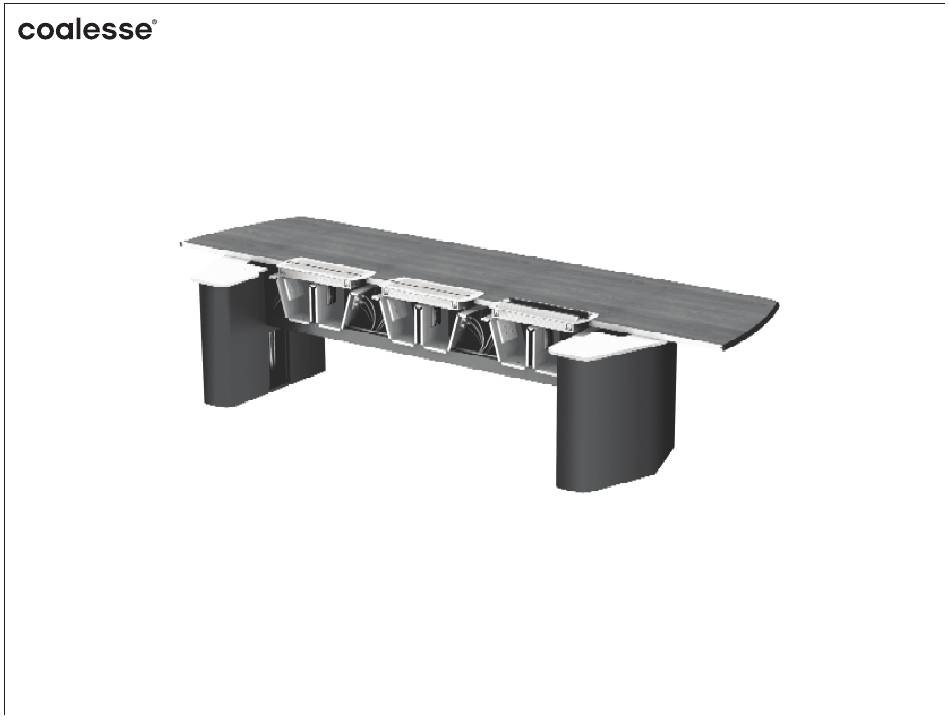

- Page 1 ™ E-table 2 Keep These Instructions For Future Reference If you have a problem, question, or request, call your local dealer, or Coalesse at 1.800.627.6770 Or visit our website: www.coalesse.com © 2013 Coalesse San Francisco, California U.S.A. Page 1 of 15 939500448 Rev E Printed in U.S.A.
-
Page 2: Before You Begin
BEFORE YOU BEGIN: Make sure you have all the table components: Table Top (1) piece table top OR multiple piece table top. Tite-Joint ™ Fasteners will be included multiple piece table. Keep all top sections with matching set ID numbers together Table Bases (2) bases for tables 12' or shorter OR (3) bases for tables from 14', up to 20' long OR... -
Page 3: Wiring Schematic
Wiring Schematic Three-Circuit, also known as a 3+0 (color-coded black). Two-Circuit Separate Neutrals Two circuits are each provided with their own neutral wire. Hardware #10-24 X 3/8” #12 Type A X machine screws 1" Pan Head Phillips wood NOTE: BE CAREFUL! #10 Type A x 1¼... - Page 4 1. DETERMINE FINAL LOCATION OF THE TABLE The table base can be placed directly over a flush-floor monument no larger than 6 3/4” diameter (shown), or adjacent to either a flush floor or above floor monument. 2. LOCATE AND INSTALL THE POWER INFEED (Note: A licensed electrician can install the power infeed before, during, or after the table assembly process.) There are three power infeed options available: 3-circuit hardwire (2a), single-circuit plug (2b), or 3-circuit...
- Page 5 3. PULL THE POWER INFEED UP THROUGH THE BASE. Remove the base access door. Pull the infeed up through the base and out the opening in the top. Communications cables (not shown) should also be pulled through the base at this time. The New York City infeed box should be attached to the inside of the base using the hook and loop fasteners provided.
- Page 6 4. REMOVE BOTTOM COVER Push down on one side of bottom cover (4a). Slide bottom cover in so that opposite side can be lifted out of wireway (4b). Page 6 of 15 939500448 Rev E...
- Page 7 5. ASSEMBLE WIREWAY TO TABLE BASES Support brackets are installed so that the Wireway is ready to install on all End-Bases and 30” wide Laminate and Veneer Mid-Bases, if Support Bracket screws are accessible. If Support Bracket screws are not accessible or Wireway is to be attached to 24” wide Laminate or Veneer Mid-Base or any Aluminum Mid-Base End Support Brackets will need to be removed.
- Page 8 7. Attach the beams to the base brackets Each universal base bracket has a color-coded sticker that indicates the correct mounting position for the beam depending on the type of base. IT IS EXTREMELY IMPORTANT THAT THE BEAM IS MOUNTED USING THE CORRECT HOLES! Carefully refer to the diagram on the sticker and install ALL twelve (12) screws.
- Page 9 8. (FOR THREE OR FOUR-BASE TABLES ONLY) CONNECT JUMPER FROM ONE WIREWAY TO THE NEXT WIREWAY (On all two-base tables, the jumpers connecting power blocks are factory-installed). On three or four-base tables, a jumper (or jumpers) must be field installed to connect the last power block on one beam to the first power block on the next beam.
-
Page 10: Very Important
Reattach Jumper Bracket. NOTE: Careful scheduling coordination of the various contractors involved in any E-Table 2 installation will simplify the process for all. At this point it is recommended that the furniture installers “step aside” and allow the cabling installers to install communications cables. If this is not practical, then the cabling installers will need to remove one or both side panels after the table is completely assembled. - Page 11 10. Install table top: two-base tables Carefully set the table top into place on top of the completed base/wireway assembly. There are predrilled pilot holes in the table top for connecting the base and the side panels. Line up these holes in the top with the corresponding holes in the base/wireways assembly.
- Page 12 11. Install the Tite-Joint™ fasteners on multi-piece table tops (If the table top is one piece, see step 12). BE CAREFUL NOT TO DAMAGE THE TOP! If the top is a multi-piece top, Tite-Joint Fasteners will need to be installed before connecting the top to the base assembly.
- Page 13 Insert the locking sleeves so the notch in the sleeve engages the rounded portion of the draw bolt. At this time, only install the locking sleeves in those locations that are accessible (the sleeves for the center bolts will be installed later). Tighten the nuts using a nail set.
- Page 14 12. Installing Bombay doors The Bombay doors are shipped inside the base cartons. They should be installed with the buttons facing toward the closest end of the table. Each Bombay door has four tabs that should be depressed when installing so as not to damage the table top.
-
Page 15: Appendix A: Optional Floor Monument Kit
APPENDIX A: OPTIONAL FLOOR MONUMENT KIT If the optional Floor Monument Kit is supplied, install it over the floor monument and cords. Cut out the grommet in the base door and run wires and cables through the grommet. Insert the end of the Cord Conduit into the grommet opening (”friction fit”).
