Heaven Seating & Table Cushion
™
The emu logo is a registered trademark of EMU GROUP S.P.A.. ITALY.

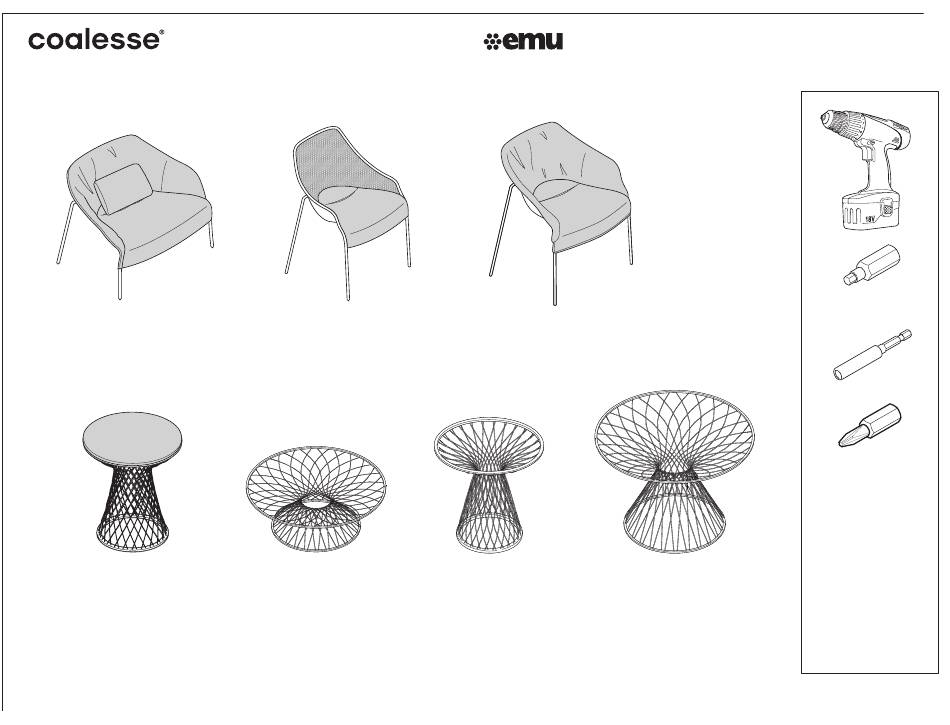

HEX DRIVE

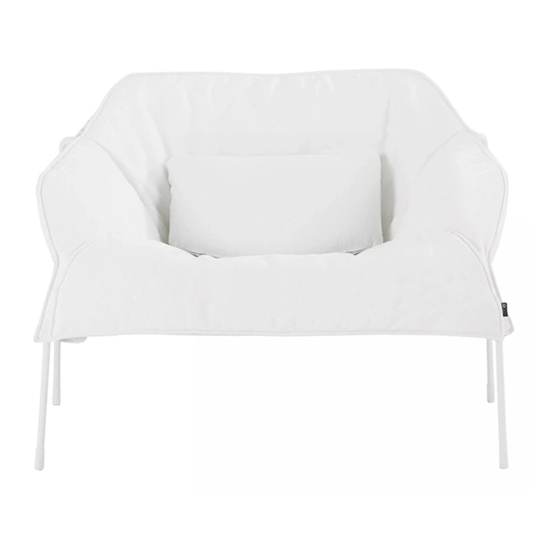

LOUNGE CHAIR
ARM CHAIR
ARM CHAIR
(SHOWN WITH SEAT CUSHION,
(SHOWN WITH SEAT CUSHION)
(SHOWN WITH SEAT CUSHION
BACK CUSHION AND PILLOW)
AND BACK CUSHION)
NOTE: PILLOW OPTION ONLY
AVAILABLE ON LOUNGE.
#2 PHILLIPS
POUF/SIDE TABLE
LOW TABLE BASE
ROUND TABLE BASE
ROUND TABLE BASE
If you have a problem, question, or request, call
your local dealer, or Coalesse at 1.800.627.6770
Or visit our website: www.coalesse.com
©
2019 Coalesse
Page 1 of 7
San Francisco, California U.S.A.
939500509 Rev C
Printed in U.S.A.
Advertisement
Related Manuals for Coalesse emu Heaven Seating & Table Cushion
Summary of Contents for Coalesse emu Heaven Seating & Table Cushion
- Page 1 POUF/SIDE TABLE LOW TABLE BASE ROUND TABLE BASE ROUND TABLE BASE If you have a problem, question, or request, call your local dealer, or Coalesse at 1.800.627.6770 Or visit our website: www.coalesse.com © 2019 Coalesse Page 1 of 7 San Francisco, California U.S.A.
- Page 2 SEAT CUSHION Installing the Seat Cushion onto a Heaven Chair For the five (5) balls located on the seat cushion, press button on ball inward (1a) and slide ball off string (1b). Place seat cushion in the center of the chair (2a).
- Page 3 Installing the Seat Cushion and Back Cushion onto a Heaven Chair For the five (5) balls located on the cushion, Route four (4) seat cushion strings through four (4) press button on ball inward (1a) and slide ball off eyelets on the back cushion. string (1b).
- Page 4 BACK CUSHION SEAT CUSHION Place seat cusion and back cushion in the center of the chair (3c). Slide string through chair webbing (3d). Place ball back onto string and slide upward (3e) so it fits snugly against chair webbing. Line up front NOTE: STRING edge of the cushion...
- Page 5 Slide string through chair webbing (4a). Place ball back onto string and slide upward (4b) so it fits snugly against chair webbing (4c). STRING CHAIR WEBBING Page 5 of 7 939500509 Rev C...
- Page 6 UNDERSIDE OF CHAIR Installing a Pillow NOTE: Pillow option only available on Lounge Chair. For the two (2) balls located on the pillow, press button on ball inward (1a) and slide ball off string (1b). Route two (2) pillow strings through the rain slit of chair cushion and then through the chair webbing (2a).
- Page 7 POUF BASE Installing the Pouf Cushion GLIDE Lower pouf base onto underside of pouf cushion. Secure pouf base to cushion using SCREW three (3) screws. Screw must be inserted through each bracket and into underside of pouf cushion. Secure (4) glides to underside of base.
- Page 8 POUF / 31-1/2” BASE Installing the Pouf and 31-1/2” Glass Top GLIDE Secure (4) glides to underside of base. Flip base over. SCREW Install (3-4) rubber washers onto METAL WASHER each bracket. Lower glass top onto top side of base aligning the glass top standoffs with the brackets.
- Page 9 Installing the 47-1/2” Glass Top Secure (6) glides to underside of base (see Figure 1 on page 8). Flip base over. Secure (10) bumpers evenly about 14-3/4”. Lower glass centered onto base. Page 9 of 7 939500509 Rev C...
