System Power

Power On
To connect the system to the electrical supply:
1. Ensure that the wall outlet is of the appropriate
type.
2. Ensure that the protective earth (ground)
connection is reliable.
Specificatio
ACDC Type ACDC Type
n
220-240VAC
2.5A
(China)
220-240VAC
2.5A
(India)
220-240VAC
2.5A
(Argentina)
220-240 VAC
2.5A
(Europe)
100-120 VAC
2.5A
(Japan)
Table 1: Example Plug and Outlet Configurations
Direction 5130174-100 Rev. 2
3. Unwrap the power cable. Make sure to allow
sufficient slack in the cable so that the plug is
not pulled out of the wall if the system is moved
slightly.
Use caution to ensure that the power cable does
not disconnect during system use. If the system is
accidentally unplugged, data may be lost.
Press the Power On/Off switch to turn the power
on.
Specification
a
220-240VAC
2.5A
(Switzerland)
220-240VAC
2.5A
(U.K.)
100-120 VAC
2.5A
(USA)
220-240 VAC
2.5A
(Israel)
220-240 VAC
2.5A
(Australia)

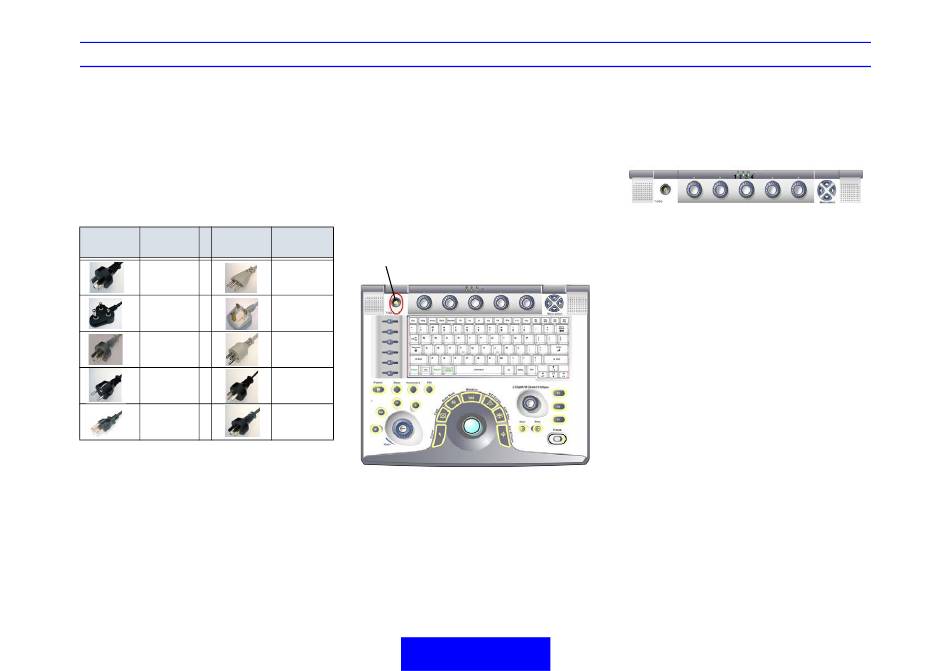

Figure 8. Power On/Off Switch Location
1. a. Power Switch Location
Prepare Exam
LEDs
Figure 9. LED indicators
1. Indicates hard disk working status. When the
LED is flashing, the system is writing or reading
from the hard disk. Color: Green.
2. Indicates power status. After pressing the
Power On/Off switch, the system power is on
and this LED is lit. Color: Green.
3. Indicates battery status. When the battery is
charged, the LED is green. When battery power
is low, the LED is orange. Colors: Green and
orange.
4. The fourth LED does not work on the LOGIQ e.
