LOGIQ 7/LOGIQ 7 Pro Quick Guide

System Power

Power On
To connect the system to the electrical supply:
1. Ensure that the wall outlet is of the appropriate type.

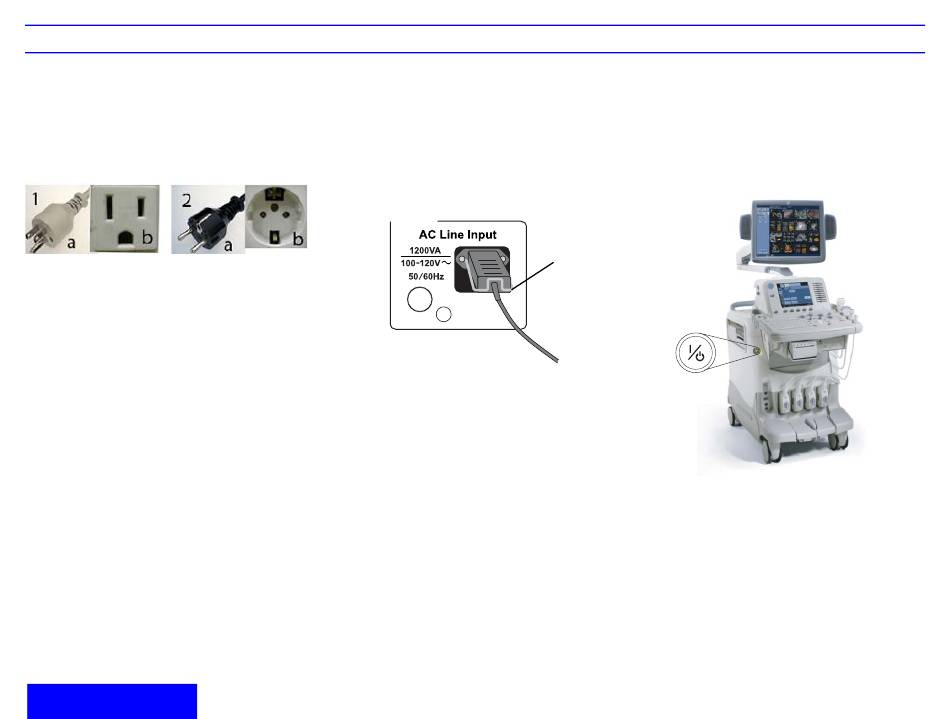

Figure 1. Example Plug and Outlet Configurations
1. 100-120 VAC, 1200 VA
a, b Plug and Outlet Configuration
2. 220-240 VAC, 1200 VA
a, b Plug and Outlet Configuration
2. Ensure that the power switch is turned off.
Preparing for an Exam
Direction 5307393-100 Rev. 1
3. Unwrap the power cable. Make sure to allow
sufficient slack in the cable so that the plug is not
pulled out of the wall if the system is moved slightly.
NOTE: Use the appropriate power cord provided by
or designated by GE Medical Systems.
4. Attach the power plug to the system and secure it in
place by using the retaining clamp.
Figure 2. Power Plug Example
a. Retaining clamp for power plug
CAUTION: Ensure that the retaining clamp for the power
plug is fixed firmly.
5. Push the power plug securely into the wall outlet.
CAUTION: Use caution to ensure that the power cable
does not disconnect during system use. If the system is
accidentally unplugged, data may be lost.
Press the Power switch to turn the power on. The circuit
breaker must also be in the on position.
The system should now go through its boot-up process
with no further user intervention (approximately 3
minutes)
a
Figure 3. Power Switch Location
1
