- Page 1 Adam Equipment CBC SERIES SERVICE MANUAL ADAM EQUIPMENT CO. LTD. p.n. 4329, Rev. A3, January 2005 @Adam Equipment Company 2005...
- Page 2 @Adam Equipment Company 2005...
-
Page 3: Table Of Contents
CBC PARAMETERS (VER. 1.2- 2.02) ............... 8 CBC CALIBRATION (VER. 1.2- 2.02)................ 9 FACTORY PARAMETERS (VERSION 1.1-1.8 TO 1.2- 2.02) ........10 TWO POINT FACTORY CALIBRATION ..............10 LOAD CELL DAMAGE ....................11 CBC RS-232 INTERFACE................... 14 10.0 SCHEMATICS ......................16 @Adam Equipment Company 2005... -
Page 4: Introduction

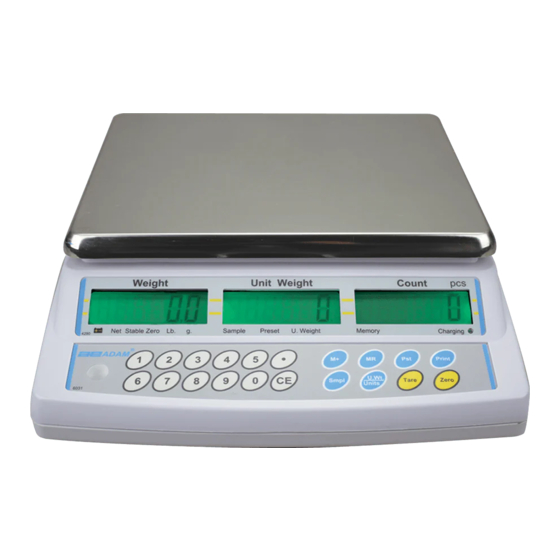

1.0 INTRODUCTION The CBC series of scales are general purpose counting scales. Refer to the Operators Manual for details of operation. This manual will cover details of calibration and troubleshooting. If you have a problem with the scales that is not directly addressed by this manual then contact your dealer or Adam Equipment for more assistance. -
Page 5: Trouble Shooting Guide
Not Linear Overload stops hitting too soon Faulty Factory calibration Off Centre Loading error Overload Stops not correct Obstruction under pan Battery will not charge Charging circuit failure Battery Failure Incorrect adapter (below 800 mA) Processor failure @Adam Equipment Company 2005... -
Page 6: Error Codes
+ 10% of the factory calibration). The old calibration data will be retained until the some softwares calibration process is complete. Scale is unstable. There vibration draft making the scale unstable. Electronics may be damaged. @Adam Equipment Company 2005... -
Page 7: Cbc Description
Schematics are attached in order to complete the documentation. However it is rare that the problem due to a faulty component on the PCB is traced by a user. The main PCB assembly includes: A/D converter (AU1), Microprocessor (DU1) and Power supply/battery charger circuits (DU5, T2). @Adam Equipment Company 2005... -
Page 8: Cbc Parameters And Calibration (Ver. 1.2- 2.02)
Record the new password number in a secure place. This is used to set the speed at which the scale will run the ADC. The settings are 7.5, 15, 30 and 60. The slowest setting is 7.5 and the fastest is 60. @Adam Equipment Company 2005... -
Page 9: Cbc Calibration (Ver. 1.2- 2.02)
When calibration is done the display will show the counting from 0 to 9 and then return to normal operation. If an error message “ ” or “ ” is displayed, then re-check the calibration and repeat it, if necessary. @Adam Equipment Company 2005... -
Page 10: Factory Parameters (Version 1.1-1.8 To 1.2- 2.02)
Suggested Calibration weights for CBC Series: CBC SERIES Model # CBC 3 CBC 6 CBC 15 CBC 30 CBC 45 2000g 5000 g 10 kg 20 kg 30 kg Suggested Calibration Weights for CBCa Series: CBCa SERIES Model # CBC 6a... -
Page 11: Load Cell Damage
2 of the strain gauges will be in compression (A and D) and the resistance will decrease and 2 will be in tension (B and C) and their resistance will increase. @Adam Equipment Company 2005... - Page 12 The circuit of a typical load cell is shown below. A method to check the basic function and integrity of a load cell can be done using an ohmmeter and voltmeter with up to a 10volt power supply. @Adam Equipment Company 2005...
- Page 13 CBC/CBW scales amplify the input by 200, and change the no load voltage to about +2.5V. The amplified and offset voltage is measured at pin 6 of IC7, the INA118P amplifier IC. This voltage is sent to the filter and then to the A/D converter. @Adam Equipment Company 2005...
-
Page 14: Cbc Rs-232 Interface
• Remove the top pan and take out the 5 screws from the bottom of the scale. • Detach the 4 cables connected with the Load-cell, Display, Power Switch and Battery Chamber from the main PCB. @Adam Equipment Company 2005... - Page 15 • Set the parameters as described in the Service Manual and perform the Factory Calibration by using Pin 9999. • If the RS-232 needs to be disabled or configured, follow the procedure for parameter settings as given in the manual. @Adam Equipment Company 2005...
-
Page 16: Schematics
If you require assistance please contact your dealer or Adam Equipment. We will be happy to help you resolve problems or determine the cause of a problem if you send us a full description of the scale and the problem. - Page 17 @Adam Equipment Company 2005...
- Page 18 @Adam Equipment Company 2005...
- Page 19 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user' s authority to operate the equipment.
- Page 20 Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
