- Page 1 Adam Equipment MDW MCW Service Manual Part No- 700660171 – rev C1 January 2012 Adam Equipment Company Ltd 2012...
- Page 2 Adam Equipment Company Ltd 2012...
-
Page 3: Table Of Contents
CONTENTS PRODUCT DESCRIPTION ..........2 SPECIFICATION TABLE ............. 3 TROUBLE SHOOTING GUIDE ..........4 ERROR MESSAGES FOR MDW MCW ......4 LOAD CELL REMOVAL AND REPLACEMENT ....6 LOAD CELL WIRE TO INDICATOR CONNECTIONS..8 CALIBRATION FOR L MODELS........11 PARAMETERS .............. -
Page 4: Product Description

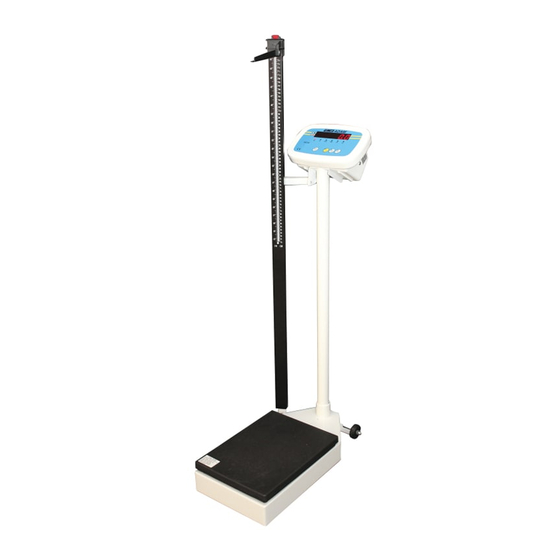

1.0 PRODUCT DESCRIPTION The MDW series of health and fitness scales are available in 3 different models. The MDW 160M offering height and weight measurements up to 2.1 metres and 160kg, this is a mechanical scale using a lever work system in the base and a balancing beam type indication. -
Page 5: Specification Table
BASE SIZE mm DIVISION MDW 160M 160kg x 0.1kg 275 x 375 MDW 250L 250kg x 0.1kg 275 x 375 MDW 300L 300kg x 0.05kg 275 x 375 MCW 300L 300kg x 0.05kg 450 x 450 Adam Equipment Company Ltd 2012... -
Page 6: Trouble Shooting Guide
Check that the product has good stability Incorrect height Height measuring device is loose measuring Height measuring device being operated incorrectly 4.0 ERROR MESSAGES FOR MDW MCW ERROR DESCRIPTION POSSIBLE CAUSES MESSAGE _ _ _ _ _... - Page 7 If with no load a reading of more than 2 milli volts is recorded then this suggests damage to the load cell may have occurred and a replacement load cell is required. Adam Equipment Company Ltd 2012...
-
Page 8: Load Cell Removal And Replacement
This then exposes the weighing platform for both the MCW L and MDW L. Unscrew the 4 x load cell fixing bolts that secure the load cell to the weighing platform and remove. - Page 9 MCW and MDW L Adam Equipment Company Ltd 2012...
-
Page 10: Load Cell Wire To Indicator Connections
All load cell to Indicator cables are 4 core and wired via a connector following the pin numbers as below. Pin 1 Excitation plus+ Red Pin 2 Excitation minus – Black Pin 3 Signal minus – Green Pin 4 Signal Plus + White Adam Equipment Company Ltd 2012... - Page 11 The MDW 160M relies on a lever system in the base using bearings and knife edges to transfer the force applied to the weighing platform to a central column. Connected to the top of this column is a beam with a pivoting knife edge,...
- Page 12 Adam Equipment Company Ltd 2012...
-
Page 13: Calibration For L Models
20,000 and 30,000. For a working unit the ADC counts should increment approx 35,000 for a 50kg calibration mass loaded. VR1 is situated on the main PCB, please see below diagram. Adam Equipment Company Ltd 2012... - Page 14 USER calibration, to carry out a FACTORY Calibration press and hold down simultaneously the [UNIT] and [TARE] buttons for 3 seconds whilst the reading is at ZERO, from this point on follow the procedure above from point 2. Adam Equipment Company Ltd 2012...
-
Page 15: Parameters
0 = No RS232 Function. 1 = Continuously outputs display data. S.F. 2 = Outputs display data when PRINT is pressed 3 = Bi-directional communication (the scale receives and executes commands from the HOST device) Adam Equipment Company Ltd 2012... -
Page 16: Parts Lists
HEIGHT ROD 7.00.1.0.0129 BASE TO INDICATOR CONNECTING ROD 7.00.1.0.0142 PILLAR 7.00.2.0.0046 PLASTIC PLATFORM COVER 7.00.1.0.0133 METAL PLATFORM 7.00.1.0.0139 CENTRE LINK 7.00.1.0.0141 LONG LEVER 7.00.1.0.0140 SHORT LEVER 7.00.1.0.0138 CORNER LINK 7.00.1.0.0128 BASE FRAME 7.00.3.0.0011 COMPLETE PACKAGING SET Adam Equipment Company Ltd 2012... - Page 17 Adam Equipment Company Ltd 2012...
- Page 18 POWER IN SOCKET 7.00.3.0.0012 COMPLETE PACKAGING SET 3.02.4.0.9156 12v DC @800ma ADAPTOR-UK 3.02.4.0.9160 12v DC @800ma ADAPTOR-USA 3.02.4.0.9159 12v DC @800ma ADAPTOR-OZ 3.02.4.0.9157 12v DC @800ma ADAPTOR-EURO 3.02.4.0.9158 12v DC @800ma ADAPTOR-SA 7.00.2.0.0048 INDICATOR ASSEMBLY Adam Equipment Company Ltd 2012...
- Page 19 MCW 300L CHAIR FRAME ASSEMBLY 7.00.1.0.0262 MCW 300L ARM REST (METAL PART x 2) 7.00.3.0.0019 MCW 300L COMPLETE PACKAGING SET 7.00.4.0.0066 MDW MCW 300L MAIN / DISPLAY PCB- WITH RS 232 3.02.4.0.5088 MDW MCW 300L BATTERY 7.00.1.0.0246 MDW MCW 300L BASE FRAME 7.00.1.0.0244 MDW MCW 300L LOAD CELL 300kg cell 7.00.4.0.0064...
- Page 20 Adam Equipment Company Ltd 2012...
- Page 21 Adam Equipment Company Ltd 2012...
-
Page 22: Warranty Information
10.0 WARRANTY INFORMATION Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company. - Page 23 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user's authority to operate the equipment. WEEE COMPLIANCE...
- Page 24 For a complete listing of all Adam products visit our website at www.adamequipment.com © Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment.
