- Page 1 Adam Equipment CBC SERIES (P.N. 4284, Revision B5, October 2006) Software rev.: 1.2-2.02 © Adam Equipment Company 2006...
- Page 2 © Adam Equipment Company 2006...
-
Page 3: Table Of Contents
CALIBRATION ......................17 RS-232 INTERFACE....................18 INPUT COMMANDS FORMAT ................20 10.0 BATTERY AND BACKLIGHT OPERATION............20 10.1 BATTERY ......................20 10.2 BACKLIGHT FOR LCD ..................21 11.0 ERROR CODES .....................22 12.0 REPLACEMENT PARTS AND ACCESSORIES .............23 13.0 SERVICE INFORMATION ..................23 © Adam Equipment Company 2006... - Page 4 © Adam Equipment Company 2006...
-

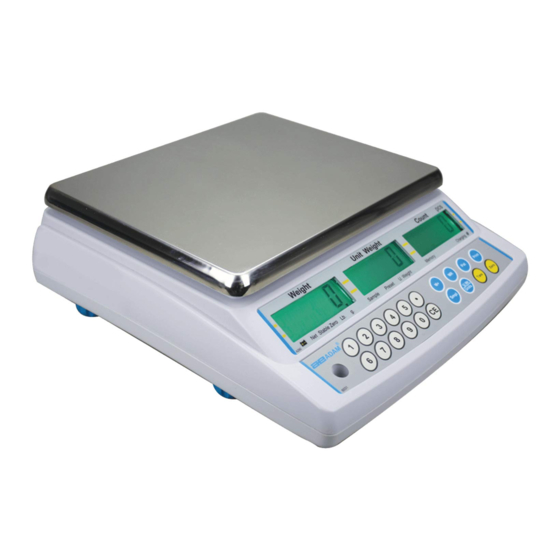

Page 5: Introduction
• The scales include automatic zero tracking, audible alarm for pre- set weights, automatic tare, pre-set tare, an accumulation facility that allows the count to be stored and recalled as an accumulated total optional RS-232 bi-directional interface communicating with a PC or printer. © Adam Equipment Company 2006... -
Page 6: Specifications
0.004 lb Model: CBC-100a UNITS OF MAXIMUM TARE READABILITY REPEATIBILITY LINEARITY MEASURE CAPACITY RANGE Kilograms 45.000 kg -45 kg 0.002 kg 0.002 kg 0.004 kg Pounds 100 lb -99 lb 0.005 lb 0.005 lb 0.01 lb © Adam Equipment Company 2006... - Page 7 8.9” x 10.8” Overall 315 x 355 x 110mm Dimensions 12.4” x 14” x 4.3” (wxdxh) Net Weight 4.1 kg / 9 lb Applications Counting Scales Functions Parts counting, weighing, accumulating memory, pre-set count with alarm © Adam Equipment Company 2006...
-
Page 8: Installation
Avoid air movement such as from fans or opening doors. Do not place near open windows or air-conditioning vents. • Keep the scales clean. Do not stack material on the scales when they are not in use. © Adam Equipment Company 2006... -
Page 9: Installation Of Cbc Series
“2.02” is the software revision number). • Next a self-test is followed. At the end of the self-test, it will display “0” in all three displays, if the zero condition has been achieved. © Adam Equipment Company 2006... -
Page 10: Key Descriptions
[U. Wt//Units] key will also select the weighing unit when the “Unit Weight” display is at zero, apart from using this key to enter the weight of a sample manually like in CBC series (as mentioned above). © Adam Equipment Company 2006... -
Page 11: Displays
Arrows above symbols will indicate the following: Low battery, Net Weight Display, "Net" Stability indicator, "Stable" Zero indicator, "Zero" CBCa Series only: In the CBCa models, there will be additional indicators for the changed units i.e., "lb" or "kg". © Adam Equipment Company 2006... -
Page 12: Unit Weight Display
• The scale has an automatic re-zeroing function to account for minor drifting or accumulation of material on the platform. However you may need to press [Zero] to re-zero the scale if small amounts of weight are still shown when the platform is empty. © Adam Equipment Company 2006... -
Page 13: Taring
• Enter the value for the Tare weight including decimal point using the keypad and press [Tare] to store the tare value. The weight will show a negative value equal to the tare value. • Place the container on the platform. © Adam Equipment Company 2006... -
Page 14: Parts Counting
• Zero the scale by pressing the [Zero] key if necessary. If a container is to be used, place the container on the scale and tare as discussed earlier. © Adam Equipment Company 2006... - Page 15 If the next key is not pressed within 5 seconds then the information in the “Unit Weight” display is cleared and the unit changing function is active again. © Adam Equipment Company 2006...
-
Page 16: Counting More Parts
Then press the [Pst] key to store the value. • To clear the value from the memory and thereby turn off the check-weighing feature, enter the value "0" and press [Pst]. © Adam Equipment Company 2006... -
Page 17: Manually Accumulated Totals
In this case the values will not be stored when the scale returns to zero. • See the next Section on PARAMETERS for details on how to enable Automatic Accumulation. © Adam Equipment Company 2006... -
Page 18: Parameters
F7 SPd This is used to set the speed at which the scale will run the ADC. The settings are 7.5, 15, 30 and 60. The slowest setting is 7.5 and the fastest is 60. © Adam Equipment Company 2006... -
Page 19: Calibration
If the scale was in pounds before starting the calibration, the weights requested will be in pound values or if the scale was weighing in kilograms then metric weights will be requested. © Adam Equipment Company 2006... -
Page 20: Rs-232 Interface
Specifications: RS-232 output of weighing data ASCII code 4800 Baud 8 data bits No Parity Connector: 9 pin d-subminiature socket Pin 3 Output Pin 2 Input Pin 5 Signal Ground © Adam Equipment Company 2006... - Page 21 1 sp sp sp 5 dp 6 sp sp sp sp sp 2 ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ ∗ © Adam Equipment Company 2006...
-
Page 22: Input Commands Format
“Weight” display will turn on. The battery should be charged as soon as the arrow is on. The scale will still operate for about 10 hours after which it will automatically switch off to protect the battery. © Adam Equipment Company 2006... -
Page 23: Backlight For Lcd
EL on Sets the backlight to be on at all times. “ ” • Press the [Tare] key to store the value or press the [Zero] key to escape from this setting and return to weighing. © Adam Equipment Company 2006... -
Page 24: Error Codes
+ 10% of the factory calibration). The old calibration data will be retained until calibration process complete. Err 9 Scale is unstable. There is vibration or draft making the scale unstable. Electronics may be damaged. © Adam Equipment Company 2006... -
Page 25: Replacement Parts And Accessories
Include any recent history of the unit. For example: -Has it been working since it’s delivered -Has it been in contact with water -Damaged from a fire -Electrical Storms in the area -Dropped on the floor, etc. © Adam Equipment Company 2006... -
Page 26: Warranty Information
The warranty will cease to operate if the equipment is not returned in the original packaging and with correct documentation for a claim to be processed. All claims are at the sole discretion of Adam Equipment. This warranty does not cover equipment where defects or poor... - Page 27 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user's authority to operate the equipment. © Adam Equipment Company 2006...
- Page 28 © Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
