How to Assemble APS (Automatic Pumping System)

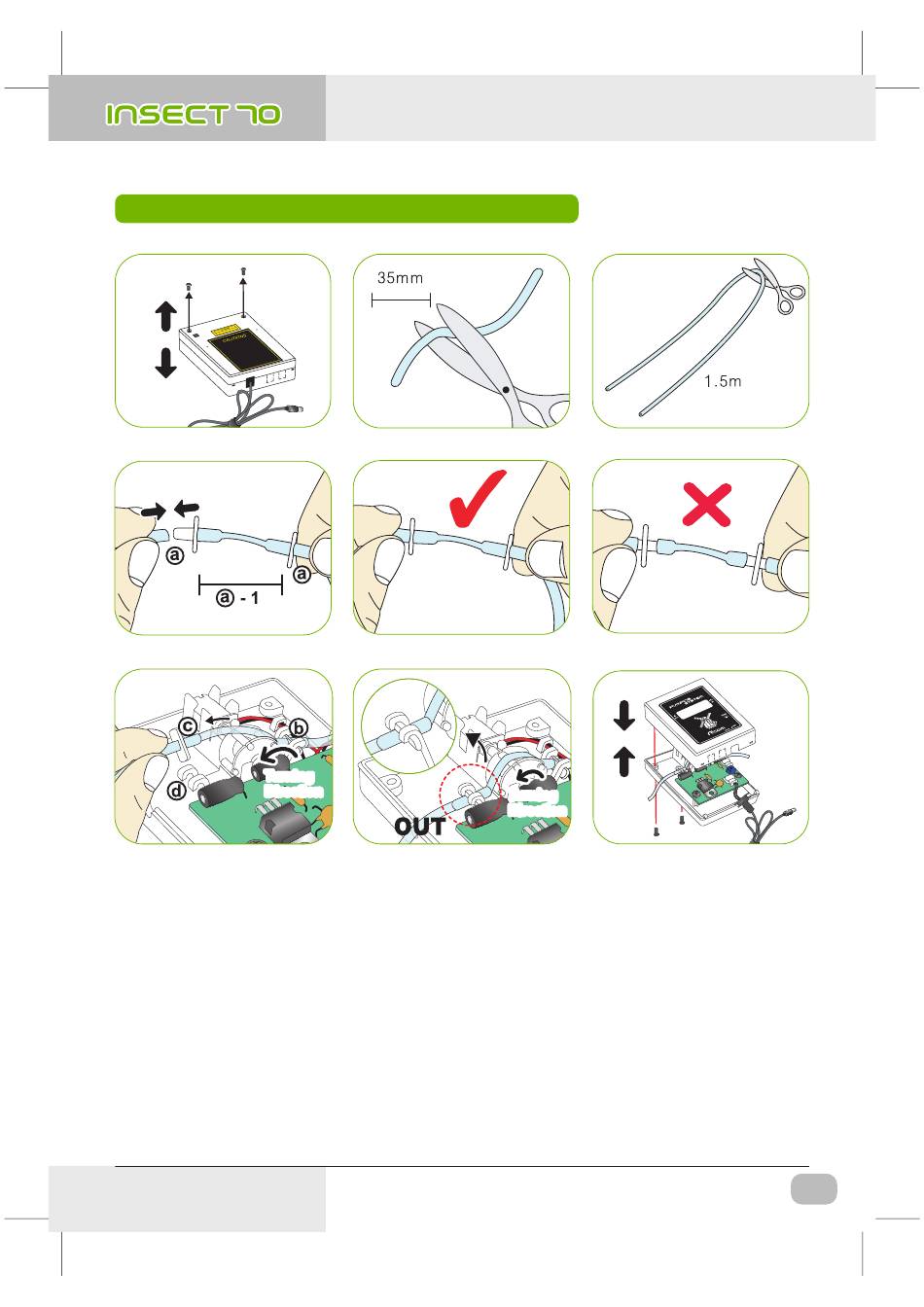

① Cut the silicone tube exactly to 35mm, and insert to nipple as picture 1-2.
(When you purchase, product is originally assembled as ⓐ-1.)
② Cut the silicone tube of 1.5m to half, and insert to assembled nipple ⓐ.
③ It is normal if you assembled as pic.1-3. If you do not insert silicon tube to the nipple completely as pic.1-4,
pumping will not work well.
④ Loose two bolts of APS case as picture 1-0, and insert the assembled silicone tube and nipple as pic.1-3 to the
side of pic. 1-5 ⓑ.
⑤ Grip the part ⓒ on Pic.1-5, and pull the silicone tube so that fit to ⓓ.
(If silicon tube should be assembled tightly.)
⑥ Spread IN and OUT of tube so that the silicone tube is not tangled. Insert tube on the groove, and cover the case.
Here, be sure to check the silicone tube or wire is not jammed. Refer to the Pic.1-6.
DIGITAL INCUBATOR
2. Before use
[Pic.1-0] * Is not required with first use
[Pic.1-2]
Turning
Direction
[Pic.1-5]
Insect Incubator Rcom Max 70 User Manual
(3) APS Assembly / Speed Control /
Tube Replacement/ Storage and Cleaning
[Pic.1-3]
Turning
Direction
[Pic.1-1]
[Pic.1-4]
[Pic.1-6]
