Do not install the device in environment with condensation, high temperature, stained,

dusty, chemically corrosive and direct sunshine.
In case of abnormality after power on, pull out network cable and cut off power supply at

once. Power on again after troubleshooting.
Installation and commission shall be done by professionals. Do not dismantle or repair

arbitrarily in case of device failure. Contact after-sales department.
It is suggested that installation height of device central point shall be 1.4cm–1.6cm above

the ground.

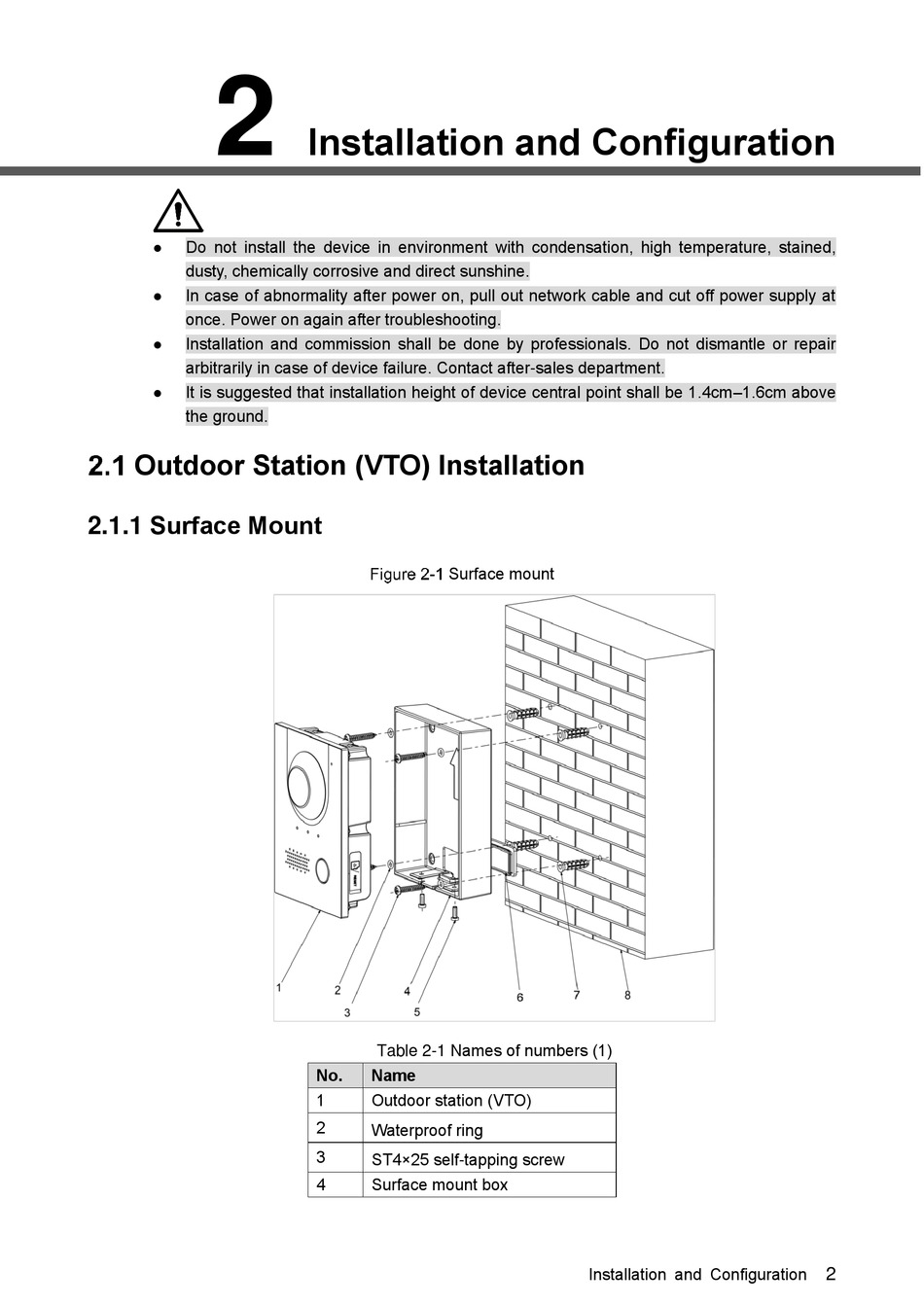

Outdoor Station (VTO) Installation

2.1.1 Surface Mount

Installation and Configuration

Surface mount
Table 2-1 Names of numbers (1)
No. Name
1 Outdoor station (VTO)
2
Waterproof ring
3
ST4×25 self-tapping screw
4 Surface mount box
