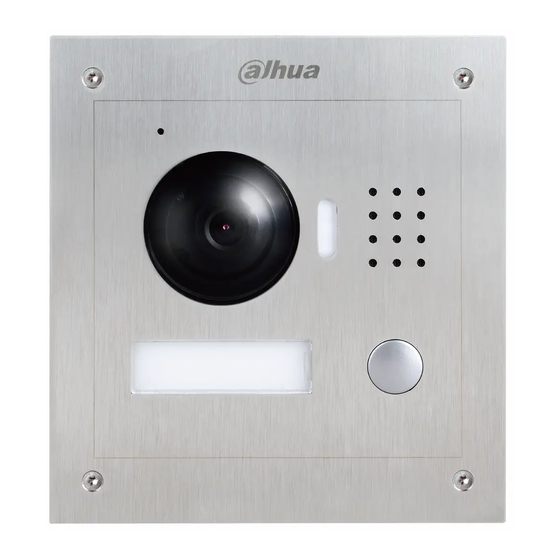

2-Wire VTO2000A-2 User's Manual
V1.0.0
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTO2000A-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua VTO2000A-2

Summary of Contents for Dahua VTO2000A-2

  • Page 1 2-Wire VTO2000A-2 User’s Manual V1.0.0...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ......................i Product Overview ..................1 List of Models ....................1 Structure ......................1 1.2.1 Dimension ..................... 1 1.2.2 Front Panel ................... 2 1.2.3 Rear Panel .................... 3 System Networking ..................3 1.3.1 One-to-One Scene ................3 1.3.2 Group Call Scene ..................
  • Page 3 General Config ....................15 Web Config ....................16 System Config ....................16 4.1.1 Local Config ..................16 4.1.2 LAN Config ..................17 4.1.3 Indoor Manager ................... 17 4.1.4 Network Config ................... 18 4.1.5 Video Set .................... 19 4.1.6 User Manage ..................20 Info Search....................
  • Page 4 Appendix 2.3 Embedded Box .................. 30...
  • Page 5 Important Safeguards and Warnings Please read the following safeguards and warnings carefully before using the product in order to avoid damages and losses. Note: Do not expose the device to lampblack, steam or dust. Otherwise it may cause fire or electric shock.

  • Page 6: Product Overview

    Model Chassis Color Unlock Button Type Lock Control Module Material IC card VTO2000A-2 Metal Silver Mechanical Built-in 1.2 Structure 1.2.1 Dimension Before you install the device, please make sure you know the dimension of device and select appropriate installation method. See Figure 1- 1.

  • Page 7: Front Panel

    1.2.2 Front Panel Figure 1- 2 Port Name Note Audio input. Camera It monitors corresponding door region. Light compensation will automatically turn on Compensation during monitoring, calling, or connecting status if Light there is no enough light in environment. Speaker Audio output.

  • Page 8: Rear Panel

    1.2.3 Rear Panel Figure 1- 3 Component Name Note Camera Angle Adjust camera angle. Adjustment Vandal-proof When VTO if forced to leave wall, it will alarm and Switch report to MGT center. Connect to lock, door sensor feedback and unlock User Port button.

  • Page 9: Group Call Scene

    Figure 1- 4 1.3.2 Group Call Scene When visitor press Call button on VTO, multiple VTHs will ring at the same time. User can call, hang up, and unlock on any of these VTHs. Note: VTH has 1 master VTH and up to 3 extension VTHs. See Figure 1- 5.

  • Page 10: Install Vto

    2 Install VTO 2.1 Direct Installation 2.1.1 Screw Before installing VTH, please check screws on accessory bag according to the following specifications and install by following this guide. Component Name Illustration Quantity M3×6 Hex slot pan head tail machine screws --- galvanizing white ST3×18 Cross recessed countersunk head tail tapping screws --- galvanizing white...

  • Page 11: Installation Step

    Figure 2- 1 2.1.3 Installation Step Step 1. Install metal bracket into the groove on wall. Fasten screw (ST3×18 Cross recessed countersunk head tail tapping screws --- galvanizing white), and fix metal bracket on wall. See Figure 2- 2 Step 2. Align the device on metal bracket according to screw hole. Fasten screw (M3×6 Hex slot pan head tail machine screws --- galvanizing white), and fix device on metal bracket.
  • Page 12 Figure 2- 2...

  • Page 13: Embedded In Wall

    Figure 2- 3 2.2 Embedded in Wall 2.2.1 Screw Before installing VTH, please check screws on accessory bag according to the following specifications and install by following this guide. Component Illustration Quantity M3×6 Hex slot pan head tail machine screws--- galvanizing white Chart 2- 2 2.2.2 Dimension Before you install the device, please make sure you know the dimension of device and...

  • Page 14: Installation Step

    Figure 2- 4 2.2.3 Installation Step Step 1. Dig a hole on wall, its dimension is 117*128*80(mm).See Figure 2- 5. Step 2. Embed metal bracket into wall until its four peaks lean against the wall. See Figure 2- 6. Step 3. Align the device on metal bracket according to screw hole. Fasten screws (M3×6 Hex slot pan head tail machine screws--- galvanizing white), and fix device on metal bracket.
  • Page 15 Figure 2- 5 Figure 2- 6...

  • Page 16: Wiring

    Figure 2- 7 2.3 Wiring See Figure 2- 8. Figure 2- 8 Component Note Name User Port 2-wire Power supply: no...

  • Page 17: Electric Control Lock And Electromagnetic Lock

    difference between +/- ends Connect to 2-wire VTH Connect to door lock, Other ports excluding sensor feedback and 2-wire unlock button. Refer to Ch 2.4.1. Project Port Reserved for project staff use. 2.4 Electric Control Lock and Electromagnetic Lock 2.4.1 Electric Control Lock When VTO connects to electric control lock, it means that the positive end of electronic control lock connects to NO of VTO (user port 10) while its negative end connects to COM of VTO (user port 12).
  • Page 18 electromagnetic lock connects to NC of VTO (user port 11) while its negative end connects to COM of VTO (user port 12). When VTO connects to door sensor in electromagnetic lock, one end of door sensor connects to FEEDBACK of VTO (user port 8) while the other end connects to GND of VTO (user port 9).

  • Page 19: Installation Debugging

    3 Installation Debugging Warning:  Before debugging, the staff shall be familiar with device’s installation, wiring and usage.  Before debugging, check wiring for short or open circuit.  When staff find each circuit is normal, plug the device to power. ...

  • Page 20: General Config

    3.2 General Config If you first use VTO, you may need to operate according to the following steps: Step 1. In Internet Explorer, input IP address of the VTO, and press Enter. Note: Default IP address of VTO is 192.168.1.110. Default username and password is admin/admin.

  • Page 21: Web Config

    4 Web Config This chapter introduces VTO WEB interface and its parameters, and hot to configure them. 4.1 System Config 4.1.1 Local Config 4.1.1.1 Local Config In Local Config interface, you can view VTO model, version info and etc. Figure 4- 1 Parameter Note Video Format...

  • Page 22: Lan Config

    4.1.1.2 A&C Manager Figure 4- 2 Parameter Note Unlock Responding The interval between current unlock and next one, Interval unit is second. Unlock Period Period door remains unlocked, unit is second. When only use door sensor, check”Check Door Door Sensor Check Sensor Signal Before Lock”, Set “Door Sensor Check Time Time”...

  • Page 23: Network Config

    Add VTH In Indoor Manager interface, click on Add. The system pops up a window as in Figure 4- 4. Figure 4- 4 Fill in VTH info as user’s name, VTH short no. and IP address. Note: VTH short no. consists of four digits, the first two digits can be within 01~99, the last two digits can be within 01~16.

  • Page 24: Video Set

    Figure 4- 5 4.1.5 Video Set You can set video effect and volume in Video Set interface. See Figure 4- 6. Figure 4- 6 Parameter Note Gain Gain limit of video basic parameter. Scene Mode Select mode: automatic, sunny, night and etc. Day/Night Mode Color mode.

  • Page 25: User Manage

    Flip Display image in flip. VTO Mic Volume Set VTO MIC volume size. VTO Beep Volume Set VTO beep volume size. Default Reset video effect and volume to default. Unlock Unlock via web. 4.1.6 User Manage Only when you login as admin, you can add, modify, delete and view user info in User Manage interface.

  • Page 26: Info Search

    Figure 4- 8  Delete User In User Manage interface, click on to delete user. 4.2 Info Search 4.2.1 Call History Here you can view call history of VTO in Call History interface. It can save up to 1024 items. . Figure 4- 9 4.2.2 Alarm Record You can search VTO alarm record on Alarm Record interface with storage up to 1024...

  • Page 27: Status Statistics

    Figure 4- 10 4.3 Status Statistics 4.3.1 VTH Status Here you can view connection status of VTH.  Status Offline: VTO and VTH are not connected, you cannot call, monitor, talk or etc. Online: VTO and VTH are connected, you can call, monitor, talk and etc. ...

  • Page 28: Basic Function Introduction

    5 Basic Function Introduction 5.1 Call Function 5.1.1 Call Manager Center Check Register to the MGT Center, you can touch the Call button to call manager center. Now VTO can only call MGT Center, cannot call VTH. Manager center’s time can be set on management platform or villa VTO’s web-end.

  • Page 29: Call User

    5.1.2 Call User Press Call button under standby status, and the VTO will call user. User may monitor VTO from VTH.  On VTH, press Unlock button to unlock door.  When VTH picks up, you can start talk with the VTH. ...
  • Page 30 Figure 5- 2 Note: Paramete with * are mandantory to be set. Step 4. In LAN Config interface, check Group Call, and click on OK. See Figure 5- 3. Step 5. After config is complete, enter Logout interface to reboot VTO. Figure 5- 3...

  • Page 31: Monitor

    Set Main VTH For main VTH configuration, you can refer to user’s manual of 2-wire VTH. 5.2 Monitor Both VTS and VTH are able to monitor this VTO by enabling the camera to capture local circumstance. 5.3 Unlock Function Unlock by Center When center is called, calling or monitoring, center can remotely unlock door.
  • Page 32 Restore VTH Info If VTH info is mistakenly changed, you can restore VTH info with this function. Note: Every half hour, VTO automatically saves card and VTH info in the system. If you want to restore card and/or VTH info, you must restore within half hour after your last operation that change these info.

  • Page 33: Faq

    6 FAQ Q: I pressed Call button, and the indicator turned on, but the VTO did not start a call? A: Please check your operation process. Q: How to end a call when I am calling? A: Please press button on VTO and there will be sound from the device. Q: The device could not boot up and there was no sound or light.

  • Page 34: Appendix 1 Technical Specifications

    Appendix 1 Technical Specifications Model VTO2000A-2 Main Process Embedded micro controller System Embedded Linux os Video Compression H.264 Standard Video Input/Sensor 1.3 Megapixel CMOS HD camera Night Vision Support Input Omnidirectional Mic Audio Output Built-in speaker Talk Support bidirectional talk...

  • Page 35: Appendix 2 Technical Specifications

    Extension Line Specification 0<L 20AWG Optional Not optional 18AWG Optional Optional 17AWG Optional Optional Note: Before plugging extension line to power, make sure its positive and negative end are correctly wired. Appendix 2.3 Embedded Box VTO Model Embedded Box VTO2000A-2 Case 126*115...
  • Page 36 Note:  This manual is for reference only. Slight difference may be found in user interface.  All the designs and software here are subject to change without prior written notice.  All trademarks and registered trademarks are the properties of their respective owners.
