Fix the outdoor station (VTO) to the front box by screwing two M3×8 screws into the
outdoor station (VTO) from the bottom of the front box.
Put the front box (with VTO) into the rear box.
Put waterproof rings to the M3×8 screws.
Screw four M3×8 screws (with waterproof ring) into the front box.

Electric Lock and Magnetic Door Lock

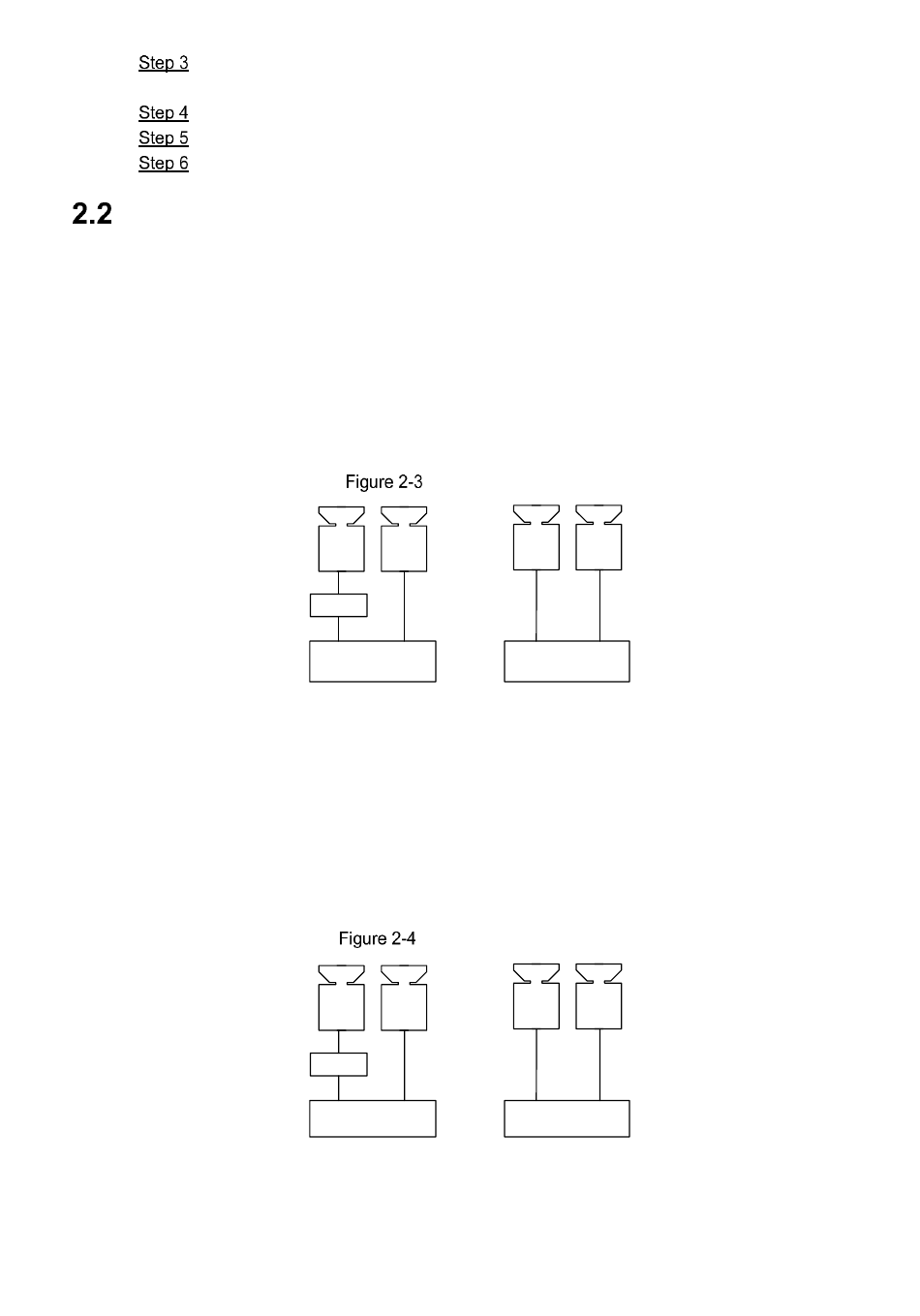

2.2.1 Electric Door Lock

When connect the outdoor station (VTO) to the electric door lock, connect the positive end of
the electric door lock to the NO of the outdoor station (VTO), connect the negative end of the
electric door lock to the public end.
When connect the outdoor station (VTO) to the on-off button, connect one end of the on-off
button to one end of the on-off button of the outdoor station (VTO), and then connect the other
end of the on-off button to the GND of outdoor station (VTO). See Figure 2-3.

2.2.2 Magnetic Door Lock

When connect the outdoor station (VTO) to the magnetic door lock, connect the positive end of
the magnetic door lock to the NC of the outdoor station (VTO), connect the negative end of the
magnetic door lock to the public end.
When connect the outdoor station (VTO) to the magnetic door lock feedback, connect one end
of the feedback to one end of the feedback of the outdoor station (VTO), and then connect the
other end of the feedback to the GND of outdoor station (VTO). See Figure 2-4.
Electric door lock connection
COM
NO
-
Power
+
+ -
Electric Lock
Magnetic door lock connection
COM
NC
-
Power
+
+ -
Door Sensor
ALM1 GND
Unlock Button
ALM2 GND
Magnetic
Feedback
Installation and Configuration
4
