Dahua Intercom Villa Kit KTP01 Setup Instruction

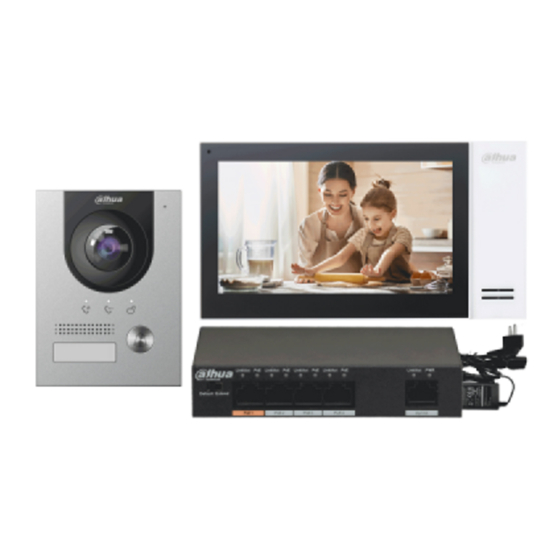

What are included in this kit:
✓ 1x Outdoor Station: DHI-VTO2202F-P
✓ 1x Indoor Monitor: DHI-VTH2421FW-P
✓ 1x POE switch: PFS3005-4ET-60
1. Wiring diagram
Step 1: Connect VTO and VTH to the switch
Step 2: Connect the switch to the router (not
included in KTP01) if customers need to use
the app to answer calls from VTO and unlock
the door.
Step 3: Connect VTO to the lock strike using
COM, NC, or NO (depends on the door lock
contact type) at the back of VTO.
Advertisement
Related Manuals for Dahua Villa
Summary of Contents for Dahua Villa
- Page 1 Dahua Intercom Villa Kit KTP01 Setup Instruction What are included in this kit: ✓ 1x Outdoor Station: DHI-VTO2202F-P ✓ 1x Indoor Monitor: DHI-VTH2421FW-P ✓ 1x POE switch: PFS3005-4ET-60 1. Wiring diagram Step 1: Connect VTO and VTH to the switch...
- Page 2 2. Data preparation Both VTO and VTH need to be assigned static IP addresses, so it is necessary to set the suitable IP addresses for them according to router settings at the customers’ side. If KTP01 is supposed to run as a standalone intercom system without the app, VTH will manage IP addresses automatically.
- Page 3 Step 3: Initialize the VTH, and the password should be six numbers, like “888888”. The email address is used to reset the password.
- Page 4 Step 4: Press “OK” to get into the quick configuration...
- Page 5 Step 5: Press “Refresh” and wait for minutes until all units appear on the screen.
- Page 6 Step 6: Initialize VTO, and the Password could be 8-32 characters which are the combination of 2 types among the number, letter, and characters, such as”admin123”...
- Page 7 Step 7: Press “next”...
- Page 8 Step 8: Edit the VTH...
- Page 9 Step 9: Set IP address...
- Page 10 Step 10: Edit the VTO, and set IP address and time...
- Page 11 Step 11: Press “One-key Config”...
- Page 12 Step 12: It should be fine in one minute...
- Page 13 Step 13: Press “Cancel” to quit the configuration...
- Page 14 4. Check Log into the VTO web and check the following items. Item 1: Status of VTO and VTH should be “Online”...
- Page 15 Item 2: Check the Door Contact Type, and you may need to change the Unlock Period. Item 3: Check the P2P status, it should be “Online” 5. App Step 1: Download and install the app DMSS...
- Page 17 Step 2: Log into the VTO web and find the QR code Step 3: Scan the QR code and add VTO into DMSS...
- Page 19 Step 4: Enable alarm subscription in DMSS. Now it is ready to answer calls from VTO and unlock the door.
