Appendix B: Technical Data
B.3.2 Lab Environment Diagrams
Overview

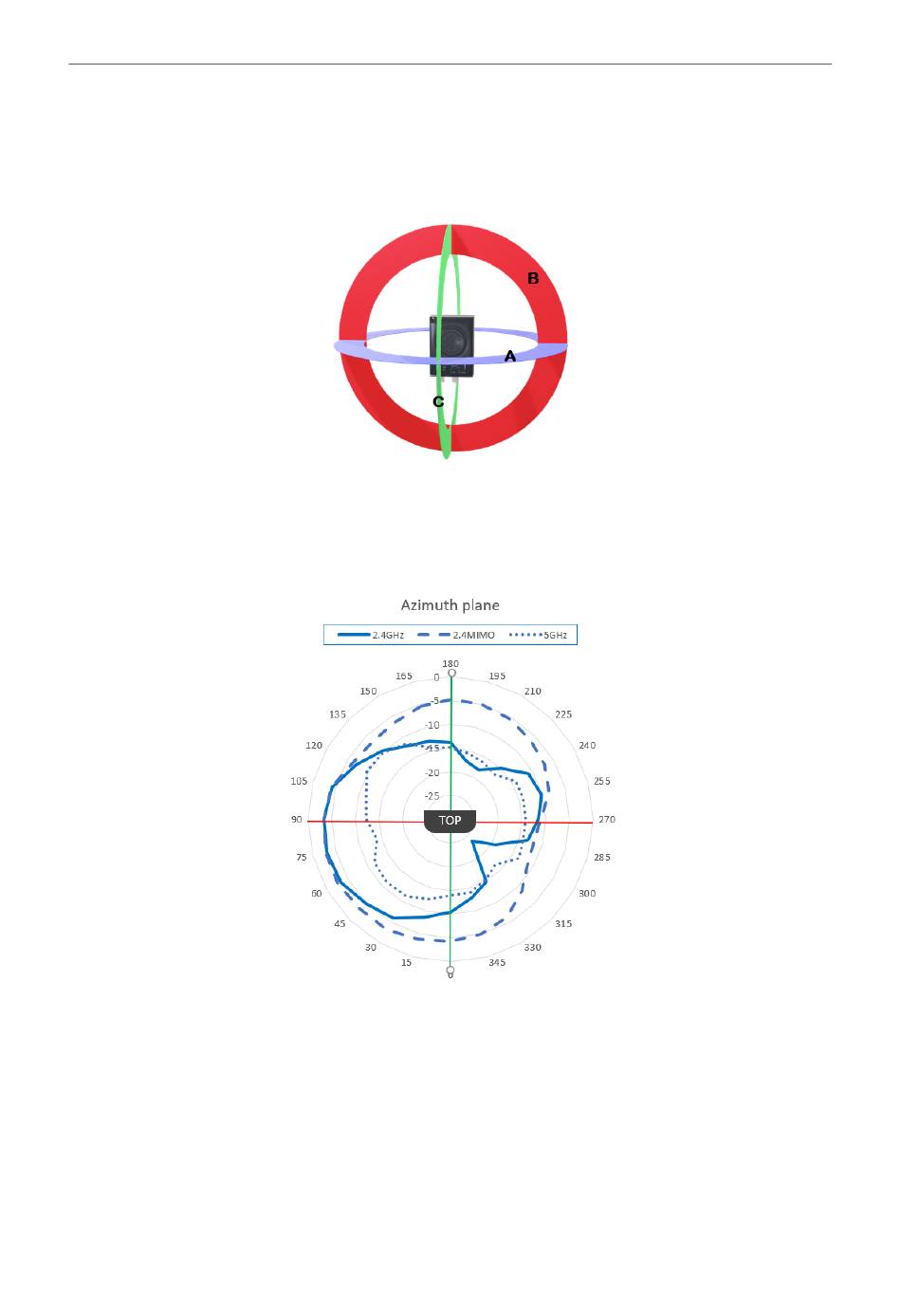

The following sections contain radiation measurements in different angles. According to the
picture below, the Azimuth plane is the horizontal spread of the radiation (A), Elevation 90° is the
vertical expansion (B) and Elevation 0° is the front to back expansion (C).
The diagrams show decibel (dB) relative to the Anybus Wireless Bridge II theoretical maximum
signal strength. Note that the 2.4 MIMO diagrams show the WLAN usage using both the 2.4 GHz
antennas simultaneously (the 2.4 GHz antenna and the 2.4 GHz MIMO antenna).
Azimuth (Horisontal) View
® ™
