Quadratec
®
Ski & Snowboard Rack
Installation Manual: For use with Bike Racks Sold Separately
92034.1030
TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE:
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUC-
TIONS AND PROCEDURE NOTI ES BEFORE ATTEMPTING TO
INSTALL OR USE THIS PRODUCT. FOLLOW ALL INSTRUCTIONS
AND WARNINGS WITH PRODUCT & VEHICLE OWNERS MANUAL.
RISK OF EYE INJURY! SAFETY GLASSES MUST BE WORN AT ALL
TIMES WHILE INSTALLING OR MAINTAINING THIS PRODUCT.
TORQUE AND RECHECK FASTENERS AFTER 250 MILES AND
FREQUENTLY THEREAFTER. DO NOT USE IF DAMAGED.
MAKE CERTAIN SKIS AND SNOWBOARDS ARE PROPERLY
SECURED BEFORE DRIVING ON PUBLIC ROADS. FAILURE TO DO
SO COULD CAUSE PROPERTY DAMAGE OR PERSONAL INJURY.
The Trusted Source
Advertisement
Related Manuals for Quadratec Ski & Snowboard Rack
Summary of Contents for Quadratec Ski & Snowboard Rack
- Page 1 Quadratec ® Ski & Snowboard Rack Installation Manual: For use with Bike Racks Sold Separately 92034.1030 TO REDUCE RISK OF SERIOUS INJURY OR PROPERTY DAMAGE: READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUC- TIONS AND PROCEDURE NOTI ES BEFORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
- Page 2 Careful attention is required to this instruction or operation but does generally not relate to personal injury. Damage to your Quadratec ® product or other property may result if you don’t follow instructions.

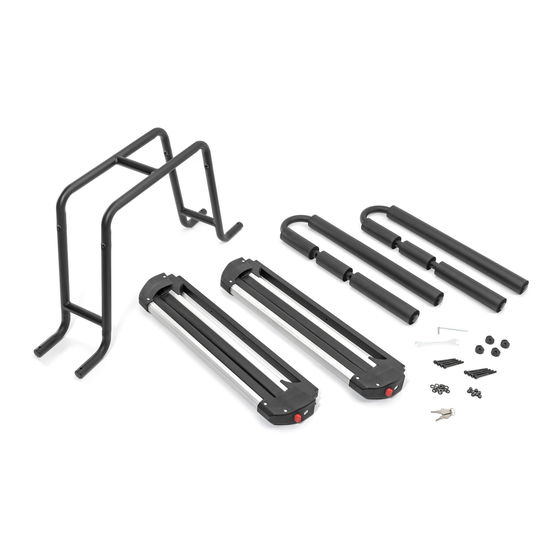

- Page 3 Kit Contents and Hardware: See below PARTS LIST: INCLUDED TOOLS: A) Main Rack Assembly Qty 1 J) 10mm/13mm Combo Wrench Qty 1 B) Padded U Bracket Qty 2 K) M5 Hex Wrench Qty 1 C) Hinged Clamp Qty 2 D) M6 x 60 Socket Headed Cap Screw Qty 4 REQUIRED TOOLS: E) M6 x 65 Socket Headed Cap Screw Qty 4...
- Page 4 Rack Assembly: FIG2 Put on Safety Glasses. Position the Secure the U bracket to the main rack padded U bracket to the bottom of the with M6 x 60 cap screws (2), washers (4), main rack assembly so that the lower pad and Nylock nuts (2).
- Page 5 Rack Installation: FIG5 FIG6 Adjust the cradles of your bike rack to fit Install the key into the lock and turn it the ski and snowboard rack. Place the before pressing the red button to open rack into the cradles of the bike rack and the clamps.
- Page 6 Quadratec to obtain a RGA number only to Quadratec branded accessories first sold (610-701-3336). All labor, removal, shipping in the United States, Quadratec warrants to the and installation costs are customer’s initial retail purchaser only that your responsibility.
