J5
LED Light Bar with
Amber Clearance Lights
For 97 - Current TJ, JK & JKU Wrangler Vehicles:
PARTS LIST:

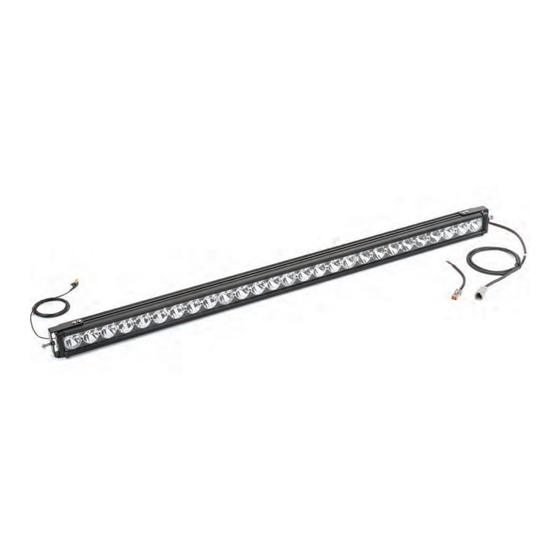

Light bar with adjustable brackets - QTY 1
Deutsch Style Pigtail Harness - QTY 1
8 x 25 mm Bolt, Nylock & Washer - QTY 2
18-22 AWG Wire Tap - QTY 1 (for TJ only)
REQUIRED TOOLS:
Safety Glasses
4mm Hex/Allen
13mm wrenches - QTY 2
Wire Ties
Wire Cutter & Pliers (for TJ only)
Electrical Tape (for TJ only)
®
The Trusted Source
#
97109.1023
*Hardware included with lightbar.
®
Key
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Quadratec J5 97109.1023
Summary of Contents for Quadratec J5 97109.1023
- Page 1 ™ LED Light Bar with Amber Clearance Lights For 97 - Current TJ, JK & JKU Wrangler Vehicles: 97109.1023 *Hardware included with lightbar. PARTS LIST: REQUIRED TOOLS: Light bar with adjustable brackets - QTY 1 Safety Glasses ® Deutsch Style Pigtail Harness - QTY 1 4mm Hex/Allen 8 x 25 mm Bolt, Nylock &...
- Page 2 Careful attention is required to this instruction or operation but does ® generally not relate to personal injury. Damage to your Quadratec product or other property may result if you don’t follow instructions. Before You Begin Installation: Congratulations on your purchase of the to shipping.
- Page 3 LED Lightbar Installation: Put on Safety Glasses. Loosen the but- Position the light bar on your mounting ton head hex screws (4) on the top and brackets and center it left to right on bottom on each end of the light bar your the vehicle.
- Page 4 A pillar routing will depend on your specific mounting brackets. brackets and wiring harness location. If you are using a Quadratec wiring har- Connect the Deutsch connector to ness and mounting brackets please refer the corresponding connector on your...
- Page 5 Vehicle Specific Wiring: JK Vehicles WHEN ROUTING ELECTRICAL WIRES, ALWAYS AVOID PINCHING WIRES. ALWAYS AVOID HOT OR MOVING COMPONENTS. ALWAYS SECURE WIRES WITH CABLE TIES. On JK vehicles: The fuse box is located Locate the 15 amp fuse in location M18. under the hood on the right hand side of the engine compartment.
- Page 6 Vehicle Specific Wiring: TJ Vehicles WHEN ROUTING ELECTRICAL WIRES, ALWAYS AVOID PINCHING WIRES. ALWAYS AVOID HOT OR MOVING COMPONENTS. ALWAYS SECURE WIRES WITH CABLE TIES. On TJ vehicles: Snip off the fuse tap on senger front corner of the vehicle. the end of the accessory wire on your Locate the wire loom behind headlight new lightbar.
- Page 7 Lightbar Installation: Results Normal Daytime Driving Mode (OK on-road) Clearance Lights (OK on-road) Clearance Lights with Off-Road Lights illuminated (Off Road only!) ® The Trusted Source...
- Page 8 Quadratec to obtain a RGA number only to Quadratec branded accessories first sold (610-701-3336). All labor, removal, shipping in the United States, Quadratec warrants to the and installation costs are customer’s initial retail purchaser only that your responsibility.
