Summary of Contents for Clarke CSJ1500

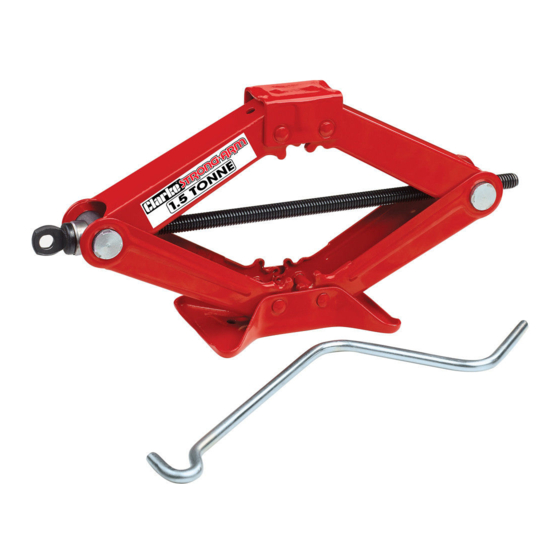

- Page 1 1.5 TONNE SCISSOR JACK MODEL NO: CSJ1500 PART NO: 7624015 USER INSTRUCTIONS GC0414...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Scissor Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
- Page 3 SAFETY PRECAUTIONS • Ensure that the jack is in good working order. Have any damaged parts repaired or replaced immediately. Use genuine Clarke parts only. The use of unauthorised parts may be dangerous and will invalidate the warranty. • Operate the jack in a suitable, well lit work area.
- Page 4 • Do not exceed the rated capacity of the jack. • Do not jack up a vehicle if there is a risk of spillage of fuel, battery acid or other dangerous substances. • Do not allow the vehicle to move while supported by the jack. •...
- Page 5 LIFTING THE VEHICLE 1. Turn the handle clockwise to bring the jack saddle into contact with the recommended lifting point. 2. Ensure the jack is vertical before continuing to turn the handle clockwise and raising the vehicle to the required working height. Turn the handle slowly and evenly to ensure no sudden movements of the vehicle.
- Page 6 PARTS LIST & DIAGRAM Description No Description Saddle Handle Saddle Rivet Threaded Rod Upper Arm Lower Arm Safety Label Inner Stay Collar Base Hinge Base Rivet Bearing Hinge Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 7 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
