Summary of Contents for Clarke Strong-Arm CTJ5GLS

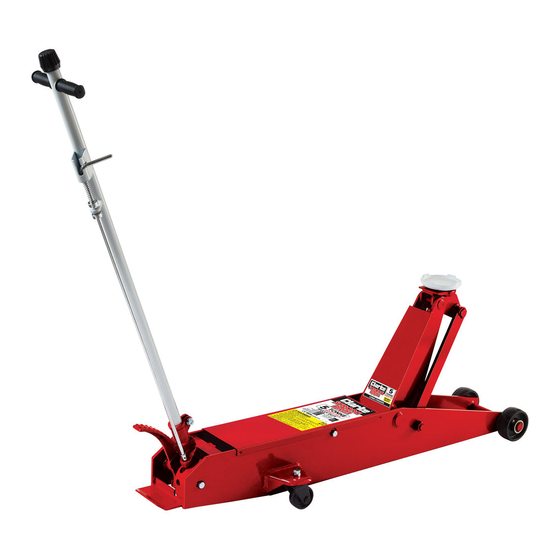

- Page 1 5 TONNE HEAVY DUTY LONG CHASSIS TROLLEY JACK MODEL NO: CTJ5GLS PART NO: 7623090 OPERATION & MAINTENANCE INSTRUCTIONS LS0915...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE 5 Tonne Heavy Duty Long Chassis Trolley Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
9. Do not try to lift more then the rated load for the jack, (See “Specifications” on page 2.) 10. Do not use the jack if an oil leak is apparent. Consult your Clarke dealer. 11. Consult the vehicle handbook to determine the correct lifting points. -
Page 4: Parts Identification
PARTS IDENTIFICATION... -
Page 5: Before Use
BEFORE USE ASSEMBLY 1. Insert the shaft of the handle into the handle socket. 2. Tighten the clamp bolt shown to lock the handle in position. LOCKING/RELEASING THE HANDLE To lock the handle in the upright position, put the handle lock in to the ‘Locked’... - Page 6 4. Lever off the filler cap using a flat screwdriver. • Oil must be up to the edge of the hole. 5. Top up if necessary with Clarke hydraulic oil available from your local Clarke dealer (part number 3050830).
- Page 7 BLEED THE HYDRAULIC SYSTEM During transportation, air can get into the hydraulic system which will cause the ram to feel "spongy". 1. Turn the knob on the handle counterclockwise to open the release valve. 2. Pump the foot pedal 10 times to purge the air from the hydraulic system.
-
Page 8: Operation
OPERATION TO LIFT 1. Turn the knob on the handle clockwise to close the release valve. 2. Put the handle lock in to the ‘Unlocked’ position as shown. 3. Operate the jack by pumping the jack handle or foot pedal. •... -
Page 9: Maintenance
7. Replace the oil filler cap. STORAGE Store in a dry place with the ram fully lowered. If stored for long periods, inspect at least once a year, clean and re-oil. For servicing, contact your CLARKE dealer, or CLARKE International Service Department. -
Page 10: Troubleshooting
If any of these remedies fail to restore your jack, consult your Clarke dealer For Spare Parts and Servicing, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY...
