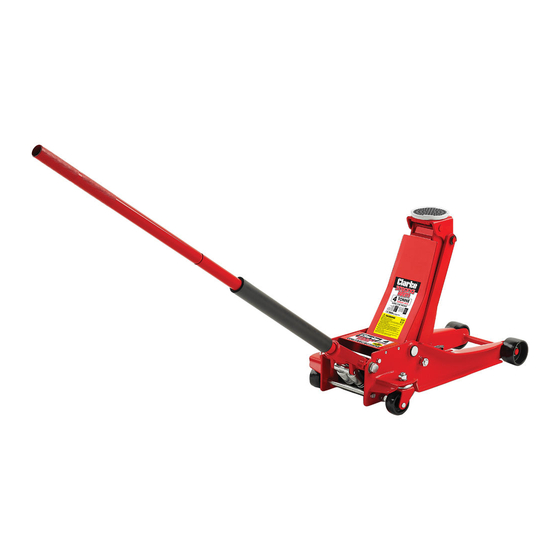

- Page 1 QUICK LIFT HYDRAULIC JACK CTJ4000G MODEL NO: PART NO: 7623206 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0419 - ISS 1...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Garage Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
9. Do not try to lift more then the rated load for the jack. 10. Do not use the jack if an oil leak is apparent. Consult your Clarke dealer. 11. Consult the vehicle handbook to determine the correct lifting points. -
Page 4: Before Use
If in doubt, do not use. Should any defects be apparent, return the jack to your Clarke dealer. 3. Install the lower operating handle by loosening the securing bolt and sliding the handle into the actuating yoke as far as it will go. -
Page 5: Operation
OPERATION WARNING: NEVER WORK ON THE VEHICLE WHEN SUPPORTED ONLY BY A JACK. THIS IS HIGHLY DANGEROUS. THE VEHICLE MUST BE SUPPORTED ON AXLE STANDS OR SUITABLE SUPPORTS BENEATH THE CORRECT JACKING/ SUPPORT POINTS. 1. Ensure the vehicle to be raised is stable and on firm level ground with the wheels chocked. -
Page 6: Maintenance
• The oil should be almost level with the bottom of the filler hole. • Oil can be topped up using Clarke Hydraulic Oil (Part number 3050830 -1 litre). 4. Bleed any air from the system as described below and replace the filler plug and cover plate. -
Page 7: Troubleshooting
Air in the hydraulic ram Bleed air as on page 6. Jack will not lower Return spring may be Return to your Clarke dealer for completely faulty. repair If any of these remedies fail to restore your jack, consult your Clarke dealer. -
Page 8: Component Parts - General Assembly
COMPONENT PARTS - GENERAL ASSEMBLY... - Page 9 COMPONENT PARTS - GENERAL ASSEMBLY Description No Description Circlip 20mm Handle Yoke Front Wheel Washer Hydraulic Pump Front Wheel U-joint Chassis Return Spring Rear Caster Cover Plate Screw M12 x 22 Circlip 25mm Washer M12 Pin 4 x 55 Washer M16 Hydraulic Pump Linkage Circlip 30mm Lift Arm Shaft...
-
