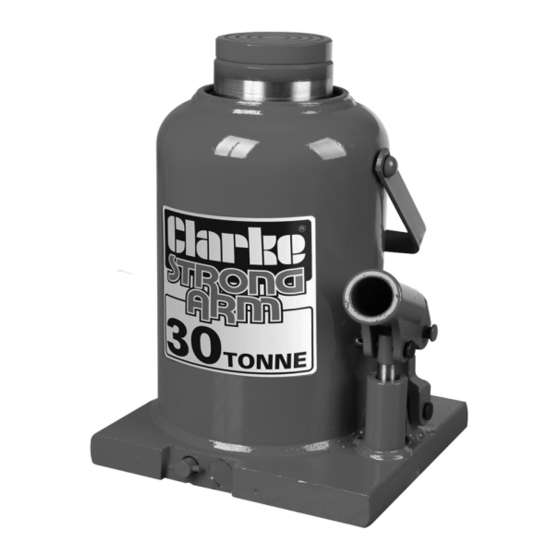

- Page 1 BOTTLE JACK MODEL NO: CBJ30 PART NO: 7620050 OPERATION AND MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0519 ISS 3...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Bottle Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. Do not exceed the rated capacity of the jack. 2. Do not let anyone operate the jack unless they have read these safety precautions. 3. Do not operate the jack if damaged in any way. 4. Use the jack in a well lit work area. 5. -
Page 4: Safety Symbols
21. Do not push a vehicle off the jack or start the engine while supported only by the jack. 22. Do not use if an oil leak is apparent. Consult the Clarke Service Department. 23. If more than one jack is used in unison, they must all be of the same rating and be raised at the same speed to reduce the possibility of the load slipping. -
Page 5: Product Features
PRODUCT FEATURES 3 x Handle Tubes Oil Filler Plug Actuating Lever Release Valve UNPACKING During transit or storage, it is possible that an air pocket may have developed within the hydraulic ram, and the ram action may therefore appear to be ‘spongy’. -
Page 6: Operation
OPERATION WARNING: MAKE SURE THAT THE SAFETY PRECAUTIONS ARE STRICTLY FOLLOWED. NO RESPONSIBILITY CAN BE ACCEPTED FOR INCORRECT USE OF THE JACK RAISING A VEHICLE 1. Make sure that the vehicle is stable and is on firm level ground with the wheels chocked before positioning the jack directly below the lifting point. -
Page 7: Maintenance
Do not use the jack unless it is perfectly serviceable. • A slight dampness on the ram is normal, but where leakage is found, the ram seals must be renewed by your Clarke Spares Department. 2. The jack must be fully inspected annually: •... -
Page 8: Purging Air From The Jack
3. If below this, top up. 4. Do not overfill. Only use the correct type of oil such as Clarke hydraulic oil (part number 3050830). 5. Replace the filler plug. 6. Check the jack for correct operation and purge any air from the system as described below. -
Page 9: Parts Diagrams
PARTS DIAGRAMS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Parts List
PARTS LIST ESCRIPTION UMBER Top cup ZTGCBJ3001 O-ring ZTGCBJ3002 Rectangular ring ZTGCBJ3003 Reservoir ZTGCBJ3004 Oil plug ZTGCBJ3005 T-ring ZTGCBJ3006 Release value assembly ZTGCBJ3007 Ball 6mm ZTGCBJ3008 Plastic plug ZTGCBJ3009 Adjusting screw assembly ZTGCBJ3010 Spring ZTGCBJ3011 Spring holder ZTGCBJ3012 Steel ball 3mm ZTGCBJ3013 Base parts ZTGCBJ3014... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
