3D Systems CubePro Manual page 6
Unjamming extruder
Hide thumbs
Also See for CubePro:
- User manual (89 pages) ,
- Replacement manual (52 pages) ,
- Repair manual (40 pages)
Advertisement

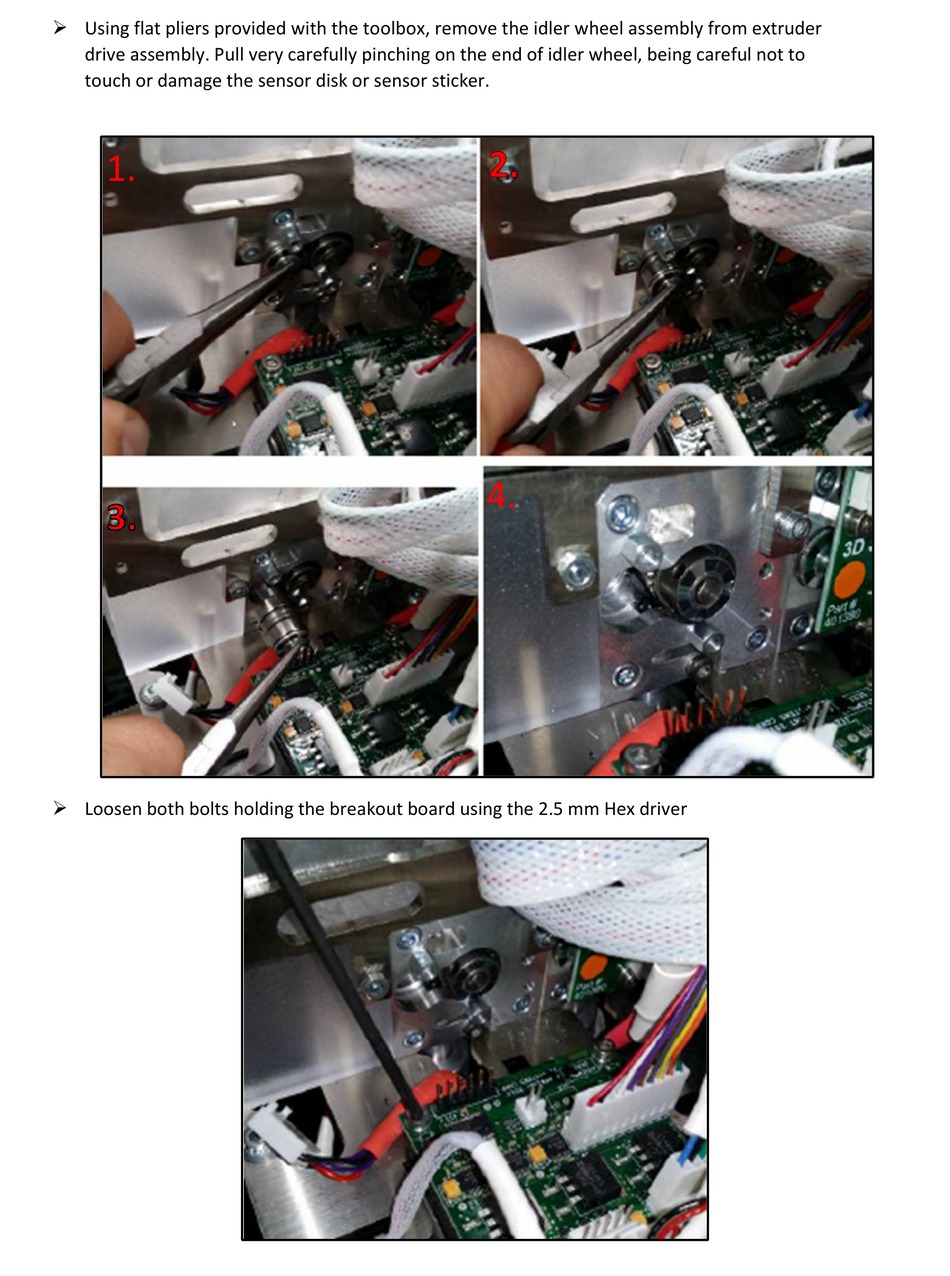

Using flat pliers provided with the toolbox, remove the idler wheel assembly from extruder
drive assembly. Pull very carefully pinching on the end of idler wheel, being careful not to
touch or damage the sensor disk or sensor sticker.
1.
Loosen both bolts holding the breakout board using the 2.5 mm Hex driver
4.
