Summary of Contents for Sunny Health & Fitness SF-T7951

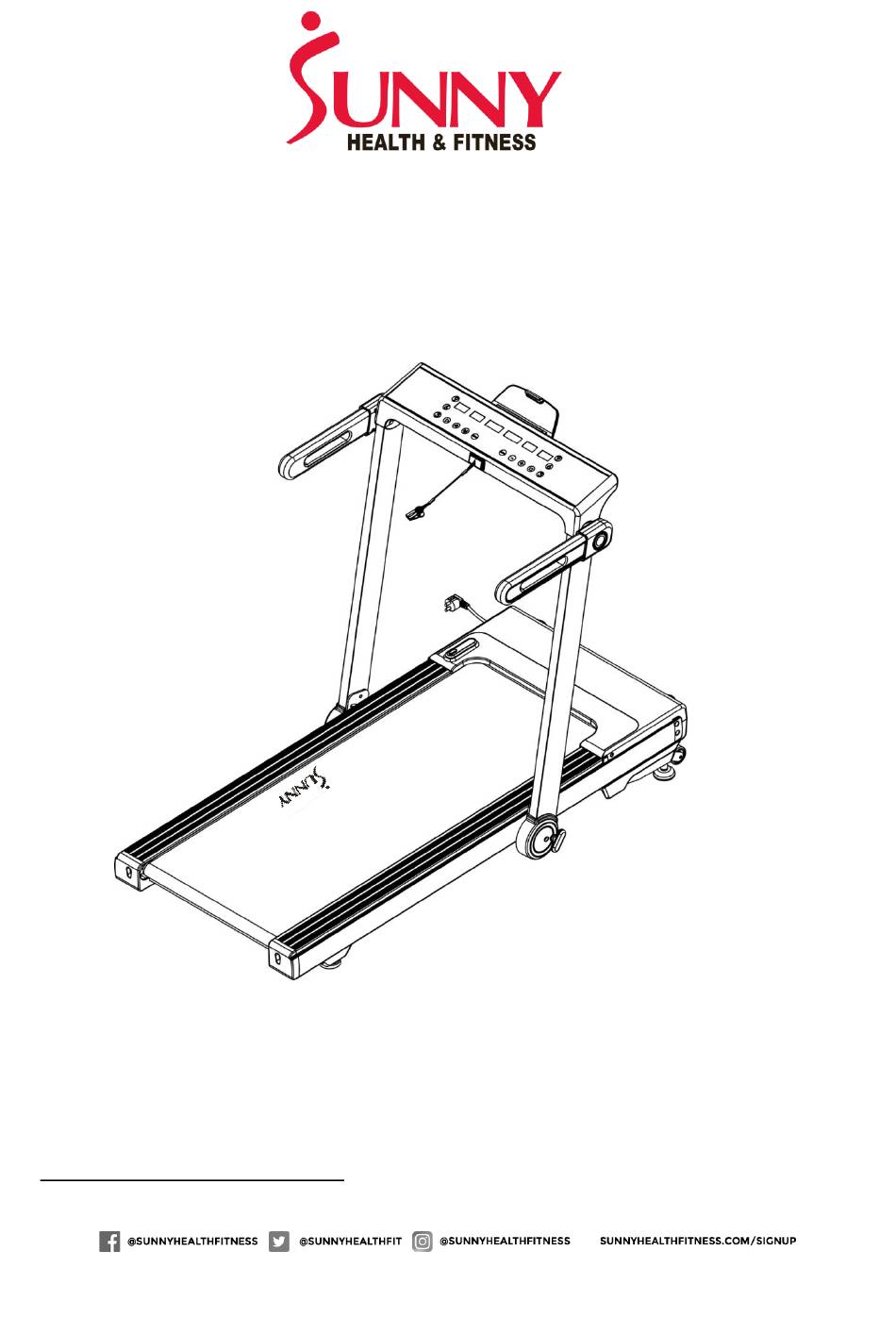

- Page 1 AUTO INCLINE TREADMILL SF-T7951 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM... -
Page 4: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Right Outer Handlebar Main Frame Cover Right Inner Handlebar Incline Bracket Cover Left Upright Tube Computer Top Cover Right Upright Tube Computer Bottom Cover DC Motor Rotary Knob Top Cover Left Handlebar Rotary Knob Bottom Cover Right Handlebar Computer Bottom Wire... - Page 5 Description Spec. Qty. Description Spec. Qty. Control Board Fixed Base Plate Incline Motor Bolt 4.2*25 Rotary Knob Bolt 4.2*6.5 Fixed Tuning Plate Bolt 4.2*30 Spring Bolt 4.2*28 D Shape Pad Bolt ST4.2*13 Strengthen Tube Bolt 2.9*9.5 Bolt M10*42 Bolt 2.6*6 (front is 5） Bolt M10*55 Lock Washer...
-
Page 6: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: Open the carton and remove all contents. Place the Main Frame (No. 1) on level ground and ensure that you have a clean, adequate workspace.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: Spin up the Left & Right Handlebar (No. 6 & No. 7) to the horizontal position as shown on the left.
-
Page 9: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use! RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Belt (No. 68) and Running Board (No. 15) is essential as the friction affects the life span and operation of the treadmill. Inspect the Running Belt (No. 68) regularly. If find wear Running... -
Page 10: Adjusting The Running Belt
MAINTENANCE GUIDE General cleaning will help prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the component on a regular basis. Cleaning the two exposed sides of the Running Belt (No. 68) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from the shoes does not wear the Running Belt (No. -
Page 11: Folding And Unfolding Instructions
FOLDING AND UNFOLDING INSTRUCTIONS Folding： 1. Adjust the incline to the highest level, then remove the Safety Key (No. 13) or turn off the power. 2. Spin up the Left & Right Handlebars (No. 6 & No. 7) as shown in picture A-A. 3. -
Page 12: How To Move The Treadmill
HOW TO MOVE THE TREADMILL Before attempting move treadmill, make sure that it has been properly folded. Then unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “K”... -
Page 13: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION IMPORTANT NOTE: This treadmill requires a power source of 110 Volts in order to properly operate. For your safety as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power supply source above or below this level could cause significant damage to the equipment and/or user. -
Page 14: The Display Console
THE DISPLAY CONSOLE LCD WINDOW DISPLAY DETAILS: SPEED: Displays the current speed. CALORIES: Displays total calories burned. TIME: Displays the elapsed running time. DISTANCE: Displays the total distance traveled. INCLINE: Displays the number of incline segments. BUTTON FUNCTION “START” BUTTON: Press this button to start the treadmill. The treadmill will run at the lowest speed or at the speed of default program after a 3 second countdown. - Page 15 There may be parts of the phone or iPad that cannot be charged. BLUETOOTH FUNCTION: Search for music matching bluetooth module (module name SF-T7951) using the bluetooth function of your mobile phone. After the connection is successful, the music played on the phone is emitted...
- Page 16 RUNNING DATA DISPLAY AND SETTING RANGE Show range Mode Default Program Default Setting Range Speed 0.6-10MPH -------- -------- -------- Incline 0—15% Time 0:00-99:59 30:00 30:00 5:00-99:00 Distance 0.00 MILE -99.9MILE 1.0MILE -------- 0.5 MILE -99.9MILE Calories 0Kcl-999Kcl 50Kcl -------- 10Kcl-990Kcl DATE TABLE: Time To set time / 20 time = running time of each time period...
-
Page 17: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the treadmill properly. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. -
Page 18: Troubleshooting
TROUBLESHOOTING Fault Code Main Reason Solution 1. Check if the connection wire between computer and control board were well The wire from computer to connected. bottom control board did 2. Make sure the IC on the control board was not connect well. well inserted.
