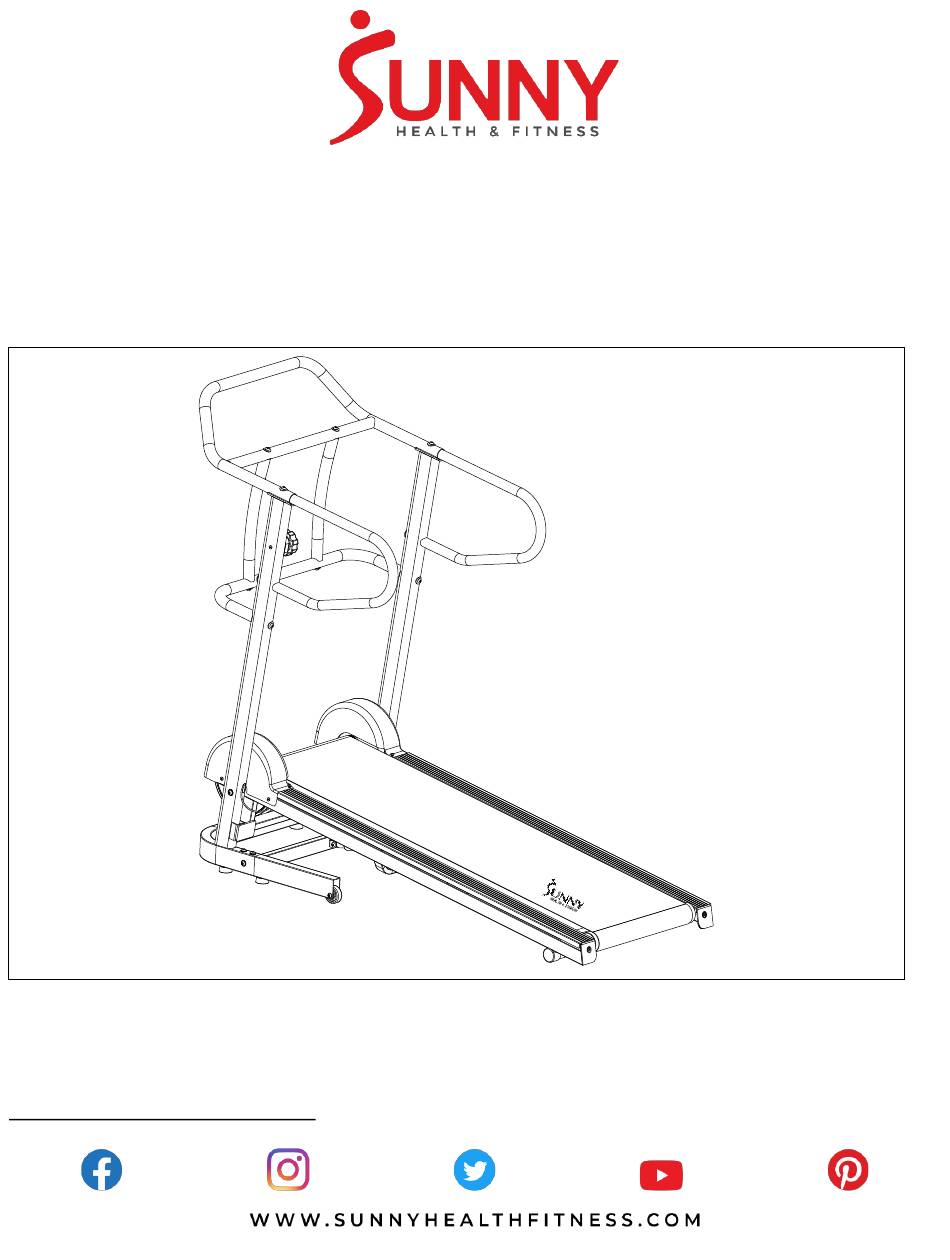

- Page 1 FORCE FITMILL SF-T7723 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1- 877 - 90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM 19 19 HARDWARE PACKAGE... -
Page 4: Parts List
PARTS LIST Description Spec. Description Spec. Main Frame Phillips Self Drilling Screw ST4.8x16 Bottom Frame Transportation Wheel Stabilizer Tube Socket Pan Head Screw M8x40x15 φ8.2xφ16.2x1.5 Rear Handlebar Flat Washer Front Handlebar Nylon Nut Phillips Pan Head Self Middle Handlebar ST5.5x22 Drilling Screw Bottom Handlebar Socket Pan Head Bolt... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: #31 M8x45x20 2PCS #31 M8x45x20 2PCS #32 M8x15 4PCS #32 M8x15 4PCS #28 φ8.2xφ16.2x1.5 8PCS Remove 2 Socket Pan Head Bolts (No.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). #36 1PC STEP 3: #36 1PC Attach Main Frame (No. 1) to Bottom Frame (No. 2) with 1 Round Knob (No. 36) and 1 #37 φ12xφ28x2.0 1PC Flat Washer (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or #38 M8x85x20 2PCS troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). #39 M8x50x20 4PCS STEP 5: #38 M8x85x20 2PCS #40 φ8xφ20x1.5 6PCS Remove 4 Socket Pan Head Bolts (No. 39) #39 M8x50x20 4PCS and 4 Arc Washers (No.
-
Page 8: Treadmill Lubrication
TREADMILL LUBRICATION Lubricating the Running Belt (No. 11) & Running Board (No. 10) is essential as the friction between the two affects the life span and operations of the treadmill. Inspect the Running Belt (No. 11) regularly. If you find any wear on the Running Board (No. -
Page 9: Folding Instructions
FOLDING INSTRUCTIONS Folding: To fold the treadmill, loosen and pull out Round Knob (No. 36) and Flat Washer (No. 37). Lift up on the rear end of Main Frame (No. 1) until the Cylinder (No. 15) lock into the tube. [When the Cylinder (No. -
Page 10: How To Move The Treadmill
HOW TO MOVE THE TREADMILL Before attempting to move the treadmill, please make sure that it has been properly folded. To tilt, start by placing two hands at Rear Handlebars (No. 4) to support the treadmill. Next, place one foot on position “A”...
