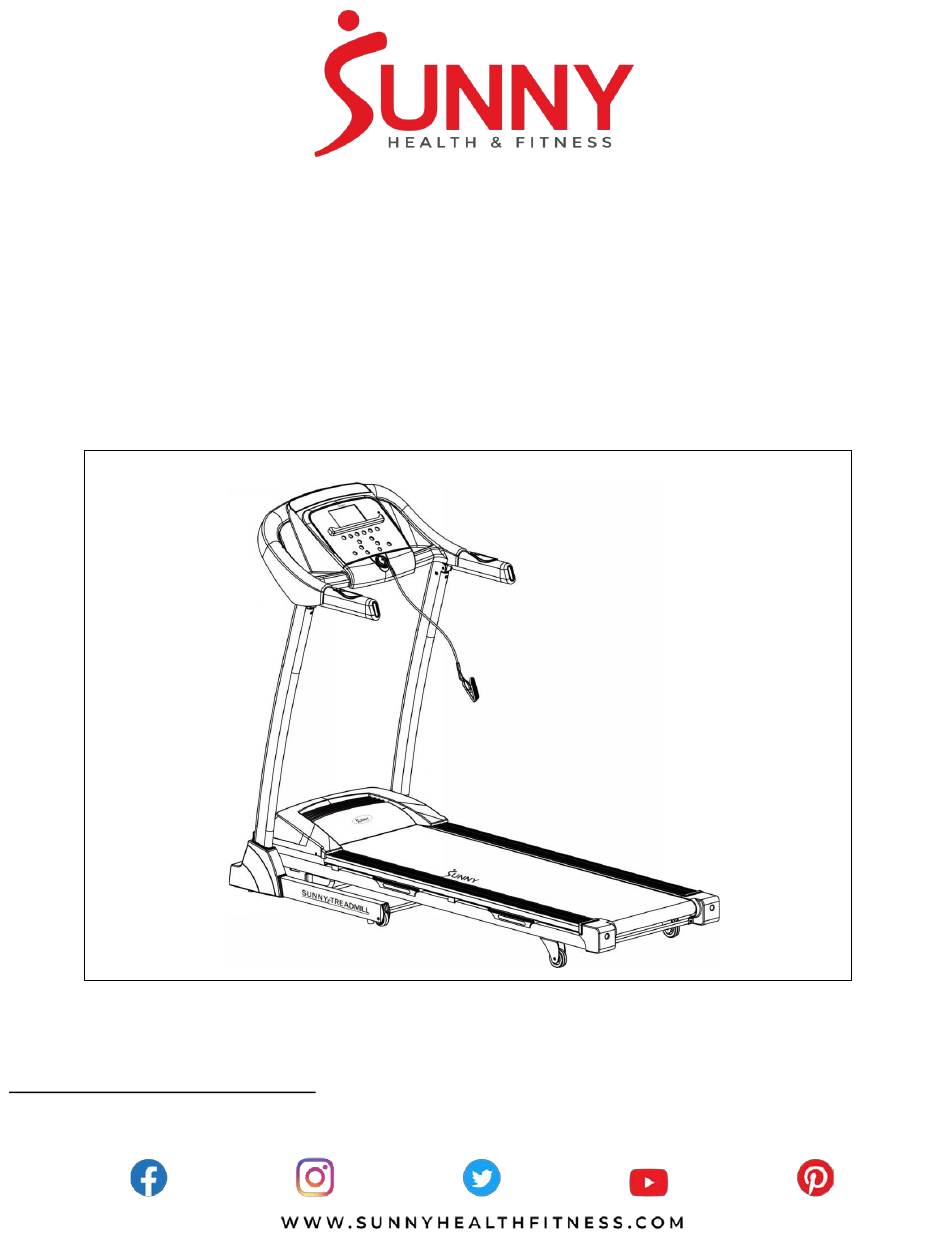

SMART TREADMILL WITH
AUTO INCLINE
SF-T7705 SMART
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US:
support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SMART SF-T7705
Summary of Contents for Sunny Health & Fitness SMART SF-T7705
- Page 1 SMART TREADMILL WITH AUTO INCLINE SF-T7705 SMART USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electrical shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –... -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this treadmill correctly. It is important to read this entire manual before assembling and using the treadmill. Safe and effective use can only be achieved if the treadmill is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the treadmill are informed of all warnings and precautions. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTION 1. Insert the power plug directly into the socket. 2. Read the manual before operating the treadmill. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Description Spec. Qty. Treadmill Lubricant Oil Left Upright Tube Cover Manual Right Upright Tube Cover Thank You Card Safety Key Hardware Package... -
Page 6: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: The model number (found on cover of manual) The product name (found on cover of manual) ... - Page 7 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: Open the carton and remove contents. Place the Main Frame (No. A02) on level ground, ensure that you have a work area that is clean and has adequate space.
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 4: Support the Left & Right Upright Tubes (No. A04 & No. A05) with your hands to prevent them from falling.
- Page 9 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 7: You may now cut the Packing Belt (No. Insert the Safety Key (No. C26) into the magnet on the Console (No.
-
Page 10: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and improve performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning the two exposed sides of the Running Belt (No. C23) will prevent dust from accumulating underneath. Keep your running shoes clean so that dirt from the shoes does not wear the Running Board (No. -
Page 11: Lubricating The Treadmill
LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the Running Board (No. D20) and Running Belt (No. C23) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Belt (No. C23) and Running Board (No. -
Page 12: Folding Instructions
FOLDING INSTRUCTIONS FOLDING: NOTE: Please make sure the incline is at ZERO when folding and unfolding. Place your hand at position “P” and lift up the Main Frame (No. A02) until the Air Pressure Cylinder (No. B05) “K” locks into the tube. When the Air Pressure Cylinder (No. -
Page 13: How To Move The Machine
HOW TO MOVE THE MACHINE Before attempting move treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “P” to support the top end of the treadmill. Next, place one foot at position “M”... -
Page 14: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging in the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 15: The Display Console
THE DISPLAY CONSOLE QUICK START: 1. Insert the magnet end of the Safety Key (No. C26) into the Console (No. D01). 2. Press the START button, and the system will automatically display a 3 seconds countdown. Once the countdown reaches zero, the Running Belt (No. C23) will start at the initial default speed of 0.5 MPH. -
Page 16: Function Keys
When the runner holds both hands on the pulse sensors (located on the handles), the system will calculate the runner’s heart beat and display it in this window. The pulse range is 50-200 beats/min. NOTE: This data is just for reference and cannot be used for medical purposes. TIME: Displays the time elapsed. -
Page 17: App Connection
“START” button, the treadmill will continue to work. If you press “STOP” button, the treadmill will stop and all data recover to initial setting. SPEED +/– BUTTONS: Press the +/- buttons to increase or decrease the speed in increments of 0.1 MPH. -
Page 18: Body Mass Index
TIME INTERVAL= setting time/10 SPEED 2.5 1.8 2.5 INCLINE SPEED 3.1 2.5 3.7 INCLINE SPEED 3.1 2.5 3.1 INCLINE SPEED 3.7 4.3 3.1 INCLINE SPEED 3.7 4.3 3.1 INCLINE SPEED 3.7 2.5 INCLINE SPEED 3.7 4.3 2.5 INCLINE SPEED 2.5 3.7 INCLINE SPEED 2.5 3.1 3.1... - Page 19 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. C26) from the console while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the console will show “- - -” and the buzzer will beep 3 times.
-
Page 20: Getting Started
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 21: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug cord into outlet. Treadmill will not start Safety Key (No. C26) is not Insert Safety Key (No. C26). inserted. Running belt tension is not Tighten left right Running belt not centered correct on the left or right adjusting bolts of the rear roller sides of the running board. - Page 22 Check motor wires to see if the motor is connected. If the wire motor wire been punctured E06: Motor Abnormality connected, or the motor is damaged, you will need to damaged. replace it. If the problem is not rectified, you may need to replace the motor.
-
Page 23: Exploded Diagram
EXPLODED DIAGRAM... -
Page 24: Parts List
PARTS LIST Description Specification Qty. Description Specification Qty. Base Frame End Cap Main Frame Console Computer Bracket Control Board Left Upright Tube Upper Signal Wire Right Upright Tube Middle Signal Wire Incline Bracket Lower Signal Wire Motor Bracket Hand Pulse with Incline Front Roller Hand Pulse with Speed Rear Roller... - Page 25 Description Specification Qty. Description Specification Qty. Φ10*Φ26*2.0 Screw ST4.2*12 Big Washer Φ10 Screw ST4.2*12 Washer Φ10 Screw ST3.5*10 Flat Washer Screw ST3.5*8 Screw ST2.6*8 Screw ST2.9*4 Filter Screw ST2.9*6.0 AC Single Line Brown Screw ST2.9*8 AC Single Line Blue Φ6 Washer Grounding Wire Φ8...
