Summary of Contents for Atlona AT-VGA10SS

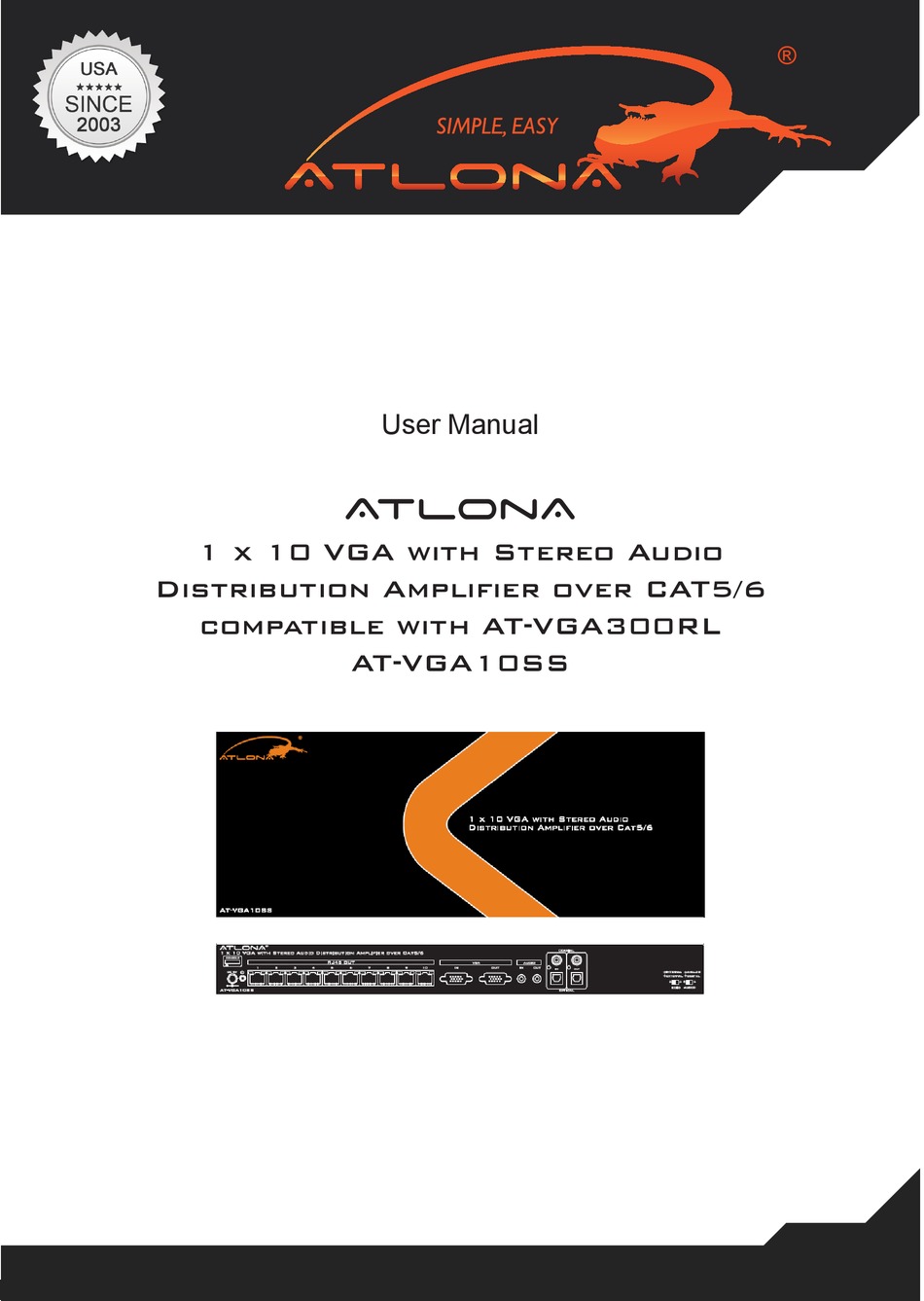

- Page 1 User Manual AtlonA 1 x 10 VGA with Stereo Audio Distribution Amplifier over CAT5/6 compatible with AT-VGA300RL AT-VGA10SS...
-
Page 2: Table Of Contents
..........3. Features ..........4. Specification ..........5. Connection and Operation ..........6. PJ45 Pin Configuration ..........7. Troubleshooting ..........8. LED Indicators ..........9. DIP Switch ..........10. Safety Information ..........11. Warranty ..........12. Atlona Product Registration .......... -
Page 3: Introduction
INTRODUCTION The Atlona AT-VGA10SS is 1 x 10 VGA with Audio Distribution Amplifier designed to accept a video and audio feed from VGA source such as computer, media player or digital signage player and distribute the same feed to 10+ locations. The VGA10SS is featured with 1 x VGA/Audio input and 10 x CAT5/6/7 outputs which could be connected with Atlona AT-VGA300RL receiving modules up to 1000ft away. -
Page 4: Connection And Operation
CONNECTION AND OPERATION 1. Connect the VGA Source e.g., Computer, Video Codec, switch to the AT-VGA10SS (transmitting unit) 2. Connect the VGA Display e.g., Projector, LCD/LED or a switch to (receiving unit) – (receiving unit is sold separately) 3. Terminate the CAT5, 6 or 7 wire with 568B termination and use a tester to make sure all pins are wired cor- rectly before connect it to the VGA10SS transmitter. -
Page 5: Led Indicators
4. Ghosting effect a. Some lower end CAT5/6 cables may have a different twist for internal cables which will result different signals arrive at the destination at different time and therefore cause Ghosting effect. The ghosting effect is basically letters doubling up or incorrect colors. We include 2 x Skew adapters in the package, it is recommended to use them. -
Page 6: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 7: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 8: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights.
