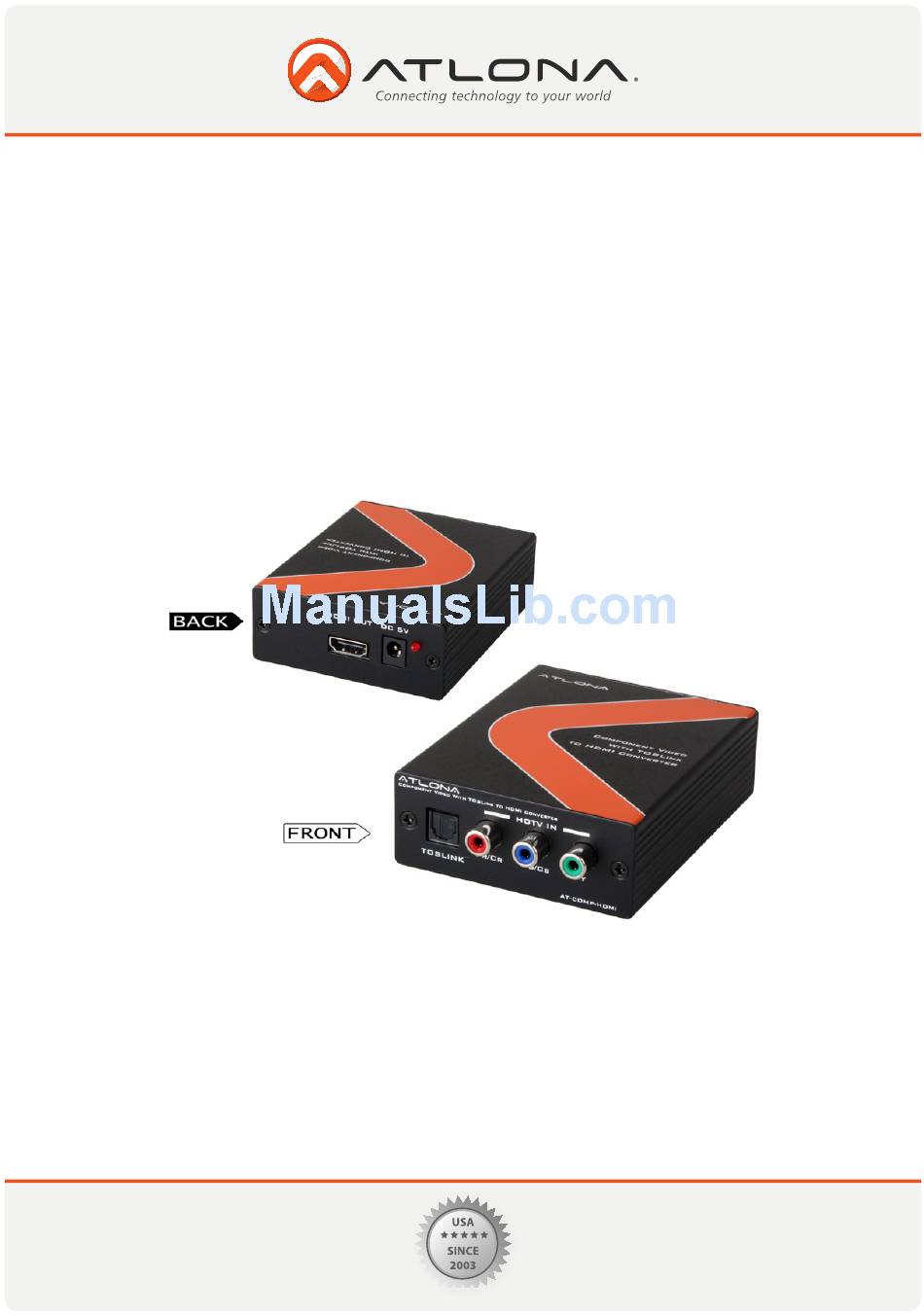

- Page 1 Component Video with Optical to HDMI Converter AT-COMP-HDMI User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Features 3. Package Contents 4. Specifications 5. Panel View 5.1. Front Panel 5.2. Rear Panel 6. Connection and Installation 7. Safety Information 8. Warranty 9. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION Atlona component with digital audio to HDMI converter, converts analog YPrPb or YCrCb and audio to digital HDMI format. It allows you to connect the component output from DVD or Set-Top-Box to digital HDMI input of HD ready plasmas, LCD’s or DLP TV’s. Supports high resolution up to 1080p. -

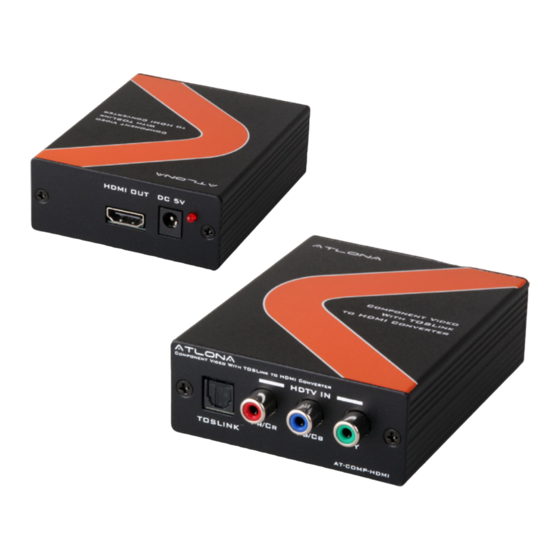

Page 4: Panel View
2. Rear Panel CONNECTION AND INSTALLATION Step 1. Connect Component Video (Red, Green, Blue) cables to your Source and to AT-COMP-HDMI. Step 2. Connect TOSLink Audio (Fiber Optic) cables to your Source and to AT-COMP-HDMI. Step 3. Connect HDMI cable to your Display and to AT-COMP-HDMI. -
Page 5: Safety Information
It may also cause damage to your AT-COMP- HDMI. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 6: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 7: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
