Clinton Electronics CE-M21A-PIR Basic Setup Manual page 7

Resetting the AXIS M3045 Camera

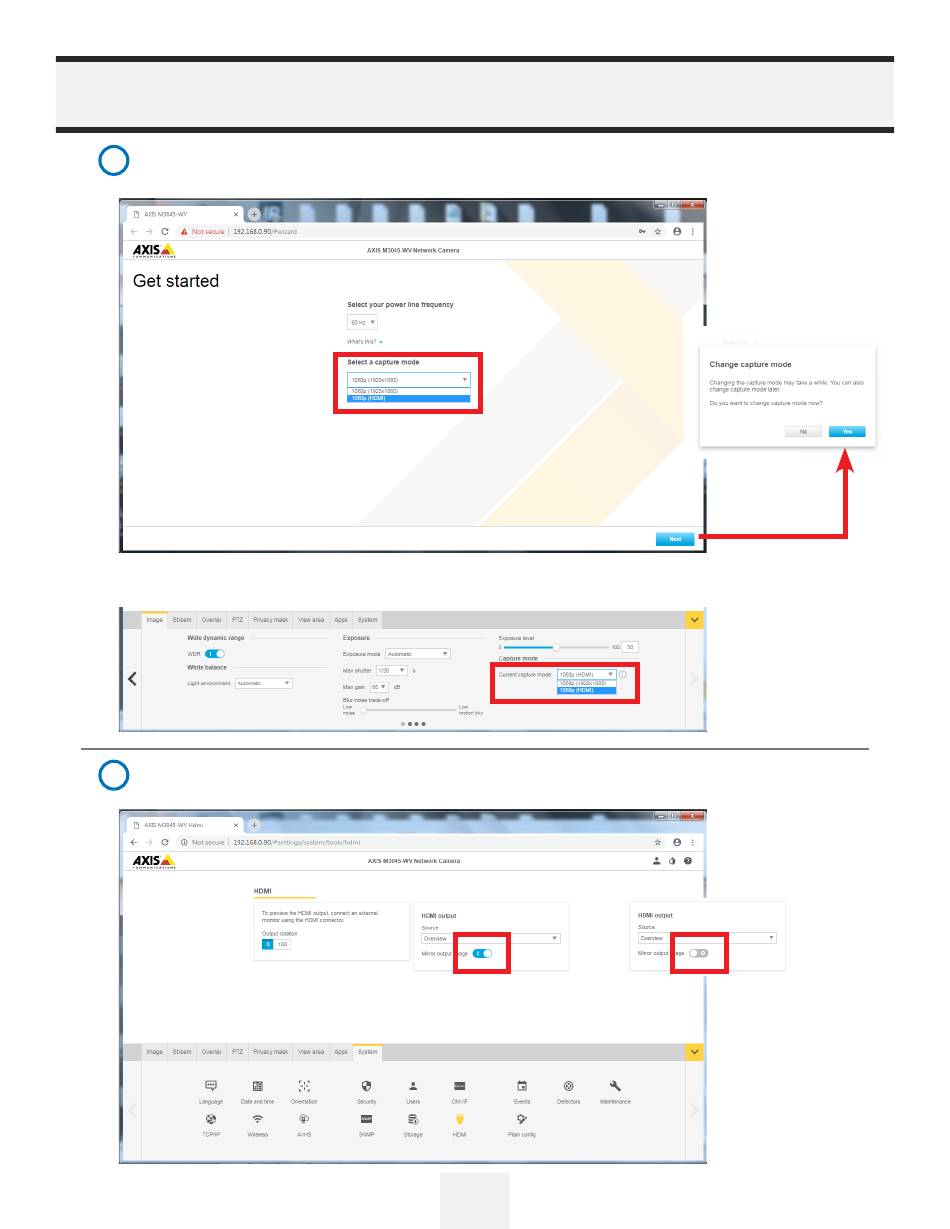

Set the Capture Mode to 1080p (HDMI) from the drop-down menu. Click the NEXT button in the lower corner,
5
then YES to confirm to display the camera image on the PVM— this change could take up to 3 minutes.
If this step is skipped it can be reset by clicking the IMAGE tab then selecting 1080p (HDMI) from the Current
Capture Mode drop-down menu.
To mirror the image on the screen of the PVM so words are legible (not backwards), click the SYSTEM tab, then
6
click the HDMI icon. Turn the 'Mirror Output Image' toggle OFF.
Basic Setup Guide: CE-M21A-PIR / CE-M27A-PIR / CE-M32A-PIR
02.08.19
*continued
1080p (HDMI)
1080p (HDMI)
Mirror ON
7
Mirror OFF
Information in this document is subject to change without notice.
