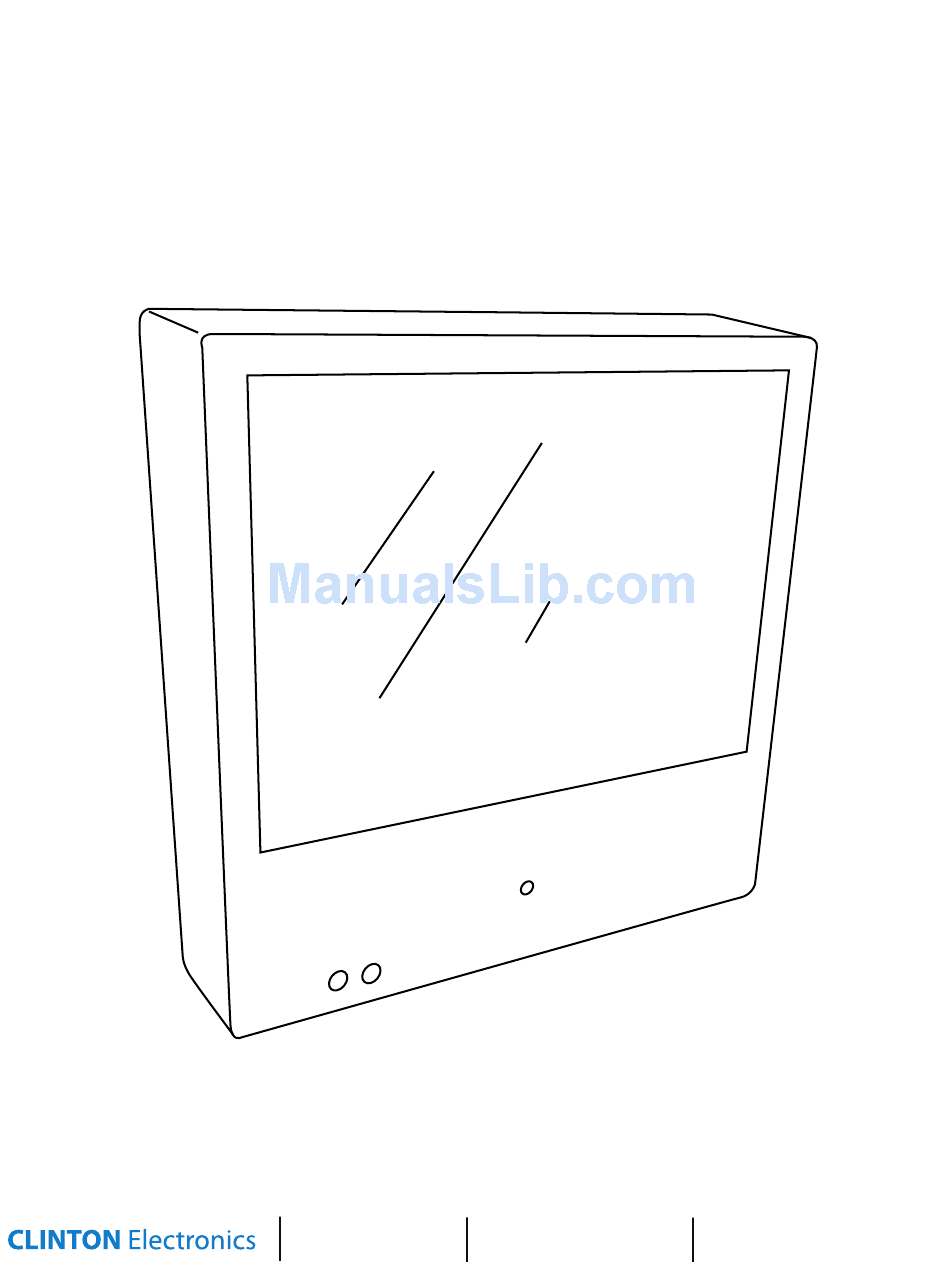

- Page 1 Public View CE-M8SD-B User Manual CLINTON Electronics 1.800.447.3306 Sales 6701 Clinton Road 1.800.549.6393 Support www.clintonelectronics.com Loves Park, IL 61111 1.800.633.8712 Fax...
-
Page 2: Table Of Contents
Table of Contents Display Introduction………………………………………………………………………… Contents, Installation and Set-up…………………………………………………… Display Functions…………………………………………………………………… LCD Remote Control………………………………………………………………… Display System Settings…………………………………………………………… SD-Card Files………………………………………………………………………… DVR Remote Control……………………………………………………………… DVR Settings………………………………………………………………………… Playback…………………………………………………………………………… Main menu, Date & Time…………………………………………………………… Motion Detection…………………………………………………………………… Recording Mode………………………………………………………………… 15-16 Continuous Recording, DVR SD-Card Options…………………………………… System Status, Power-On Setup, Factory Default…………………………………... -
Page 3: Introduction
Introduction Congratulations on the purchase of your new Public View Integrated Camera Security display. This display and camera combination is designed for simple and effective loss prevention by making the viewer aware of video surveillance measures. Features: • Rugged Steel Enclosure •... - Page 4 POWER AUTO DOWN MENU PACKAGE CONTENTS Security Allen Wrench CE-M8SD-B Remote Control Power Pigtail User Manual Alarm SD-Audio Extra Security Screw Motion with access door and Chime (batteries included) (for Hardwiring) 16 GB SD-Card (for DVR) security screw Alarm Plug 2 GB SD-Card (for media) Installation and Set up Unpacking your display...
-
Page 5: Display Functions
Display Functions Features VESA 75 & VESA 100 mounting patterns Power Supply Input Video BNC Output SD-card slot Alarm Connection DVR SD-card slot Camera Camera OSD Joystick LED Flasher IR Sensor Control Access The access door for the OSD Joystick, SD-Cards, and Connections is located on the back of the unit WHEN SD CARD IS INSERTED, YOU MUST POWER CYCLE. - Page 6 Remote Control - LCD The parameters of the display can be adjusted by using the included remote control. LCD CONTROLS Power Mute Selection Arrows Menu DVR CONTROLS (see page 10 for DVR controls) MENU Exit SOURCE 912-F8125-0001 LCD CONTROLS Power – On/Off function. This will power off the display only. The internal camera can still supply video to an external display or DVR.
- Page 7 Display Set-Up Video Menu: The display should be pre-set for most installations, however if some adjustment is necessary, we suggest you follow these recommendations by pressing the MENU button on the remote control: 1. First adjust the BRIGHTNESS control to set the black level so that the images are at their brightest while the black images are still black.
- Page 8 System Settings Menu 1. The ALARM CAMERA DWELL will allow you to change the duration that the camera image will remain on screen after an alarm event has occurred. If you wish to change this duration for motion events, you must do so in the DVR Settings menu. See pg. 16 for details. 2.
- Page 9 Change SD-Card Image/Video/Audio • Insert the SD-Card into your computer or SD-Card reader. • Move the desired JPEG image, or AVI video file into the SD-Card folder. (For the M8SD-B the desired full screen image size is 800x600) • Leaving multiple media files on the SD-Card will result in the device cycling through all loaded media. •...
- Page 10 Remote Control -DVR The parameters of the display can be adjusted by using the included remote control. LCD CONTROLS (see page 6 for LCD controls) DVR CONTROLS Play / Pause Record MENU Back / Rewind Forward / Fast Forward Exit OSD Controls Exit / Stop Down...
-
Page 11: Dvr Settings
DVR Settings Recording View 2011 Select from: Yr / Mo / Day or Mo / Day / Yr, HOUR : MINUTE : SECOND Current Date & Time Record Status Device is Recording Data Record Mode Manual Record Schedule Record Motion Record Quarter VGA Quality VGA Quality Video Size... -
Page 12: Playback
Playback view To start playback you can decide between three different modes. Normal playback During live view press the playback/pause button to start normal playback. MENU Normal playback speed. Exit During the normal playback press button to rewind or fast forward. By pressing in the MENU MENU same direction again you raise the search speed (Speed: x2/ x4/ x8/ x16/ x32). - Page 13 Main Menu The menu level is shown in the top right corner of the menu screen. First level (main menu) Second level Third level MENU - Press buttons to navigate. Exit - To confirm or select, press button. MENU - Press buttons to change the value.
-
Page 14: Motion Setup
Motion setup SET MD AREA The motion detection area is split up into 16 x 12 cells. Cells which are marked to detect motion are displayed red. MENU In order to navigate use buttons and confirm by pressing button. Press play- Exit MENU... - Page 15 Manual record AUDIO : OFF - VIDEO SIZE / FRAME RATE: Here you can change the video size and frame rate for the manual recording. Video size 360 x 240 720 x 480 Max. frame rate 30 fps 30 fps - QUALITY: Here you can choose between three recording qualities: Basic, Normal, High...
- Page 16 Schedule setup SCHEDULE Recording ON / OFF (default value is OFF) MENU 00 - 23 to navigate between the hours. Exit Press to change the recording types. MENU MENU : Motion; : Continuous; Alarm; Exit Exit _: All modes active; : No mode active) Event record Here you can change the settings for the motion detection.
- Page 17 Continue record Here you can change the settings for the continuous recording. AUDIO : OFF VIDEO SIZE Here you can set the recording resolution FRAME RATE Here you can set up how many fps will be recorded. QUALITY Here you can set the recording quality. AUDIO Audio recording is not available on this device.
- Page 18 System Status Here you can find a quick summary of the firmware version and the recording settings. Press any key to return to the main menu. Power on Setup ALARM INPUT : N.C. LANGUAGE Here you can set the OSD menu language. COMPOSITE Here the video standard for the video output is shown.
-
Page 19: Camera Osd Menu
Camera OSD Menu Camera functions and settings can be adjusted or changed by activating the OSD menu. When the OSD menu is activated text will display on the monitor. The user can then move the cursor to the desired function to change the setting. SETUP Menu LENS •... - Page 20 Navigating the OSD Menu 1. Press the SETUP button, then select a menu item from the list available by using the UP and DOWN buttons. • Functions are selected using up and down buttons. • Place the cursor over a desired item, the selected position is displayed. Select the function When an arrow using the UP or...
- Page 21 Exposure 1. When the SETUP menu is displayed, select ‘EXPOSURE’ by using the Up and Down buttons so that the arrow indicates ‘EXPOSURE’ . Press SETUP to enter. 2. Select the desired mode using Up and Down buttons. BRIGHTNESS: Adjusts the exposure brightness. SHUTTER: You can select either auto or manual shutter.
- Page 22 Exposure- continued Notes • If you press the SET button in ‘AUTO’ mode, you can adjust brightness by increasing or decreasing the shutter speed. (x2 ~ x512) • Note that the higher the zoom level, the brighter the screen, but the more likely it is that an after- image will appear.
-
Page 23: Ssdr
SSDR (Super Dynamic Range) SSDR illuminates darker areas of an image while retaining the same light level for brighter areas to even out the overall brightness of images with high contrast between bright and dark areas. 1. When the SETUP menu screen is displayed, select ‘SSDR’ by using the Up and Down buttons so that the arrow indicates ‘SSDR’... -
Page 24: Hlc
BLC (Back Light Compensation) 1. When the SETUP menu screen is displayed, select ‘BACKLIGHT’ by using the Up and Down buttons so that the arrow indicates ‘BACKLIGHT’ . 2. Select a desired mode using the Left and Right buttons depending on the camera purpose. ... - Page 25 HLC continued 3. Select a desired mode using the Left and Right buttons and press the SET button. BLC : Select ‘BLC’ to adjust HLC :Enable the user to the area to be enhanced change the level limit, then adjust the level.
-
Page 26: Dnr3
DNR3 This function reduces the background noise in a low luminance environment. 1. When the SETUP menu screen is displayed, select ‘DNR’ by using the Up and Down buttons so that the arrow indicates ‘DNR’ . 2. Select a desired mode using the Left and Right buttons. ... -
Page 27: Day/Night
Day / Night You can display pictures in color or black and white. 1. When the SETUP menu screen is displayed, select ‘DAY/NIGHT’ by using the Up and Down buttons so that the arrow indicates ‘DAY/NIGHT’ . 2. Select a desired mode using the Left and Right buttons according to the picture display you want. -
Page 28: Special
SPECIAL 1. When the SETUP menu screen is displayed, select ‘SPECIAL’ by using the Up and Down buttons so that the arrow indicates ‘SPECIAL’ . Press SETUP to enter the ‘SPECIAL’ menu. 2. Select a desired mode using the Up and Down buttons. ... - Page 29 Image Adj. Continued l FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue) l SHARPNESS : As you increase this value, the picture outline becomes stronger and clearer. Adjust this value appropriately depending on the sharpness of the picture. l RETURN : Select this to save the settings for the IMAGE ADJ.
- Page 30 CAM TITLE : If you enter a title, the title will appear on the monitor. 1) If the SPECIAL menu screen is displayed, use the Up and Down buttons so that the arrow indicates ‘CAM TITLE’ . 2) Set it to ‘ON’ by using the Left and Right buttons.
- Page 31 SYNC : In areas where the supply is at 60Hz, you can synchronize the output phase of multiple cameras using the power synchronization function (Line-Lock) without using a synchronization signal generator. – INT : Internal Synchronization Type – L/L : Power Synchronization Type, Line-lock l Press the Function Setup switch.
- Page 32 Motion Detection- Continued 2) Set up the mode using the 4 direction buttons. – SENSITIVITY : You can select up to 8 MD areas. When SENSITIVITY number is high, motion detection sensitivity is increased to recognize even small movement. – AREA MODE : Determines whether to use the MD area selected in SENSITIVITY. –...
-
Page 33: Camera Title
COMM ADJ (Communication Adjustment) : This function sets up the camera communication status when controlling the camera through an external control device. 1) When the SPECIAL menu screen is displayed, press the Up and Down buttons so that the arrow indicates ‘COMM ADJ’... -
Page 34: Troubleshooting
Troubleshooting If you have trouble operating your device, refer to the following table. If the guidelines do not enable you to solve the problem, contact Clinton Electronics Technical Support at 1-800-549-6393 or 815-633-1444. Problem Solution Nothing appears on the •... -
Page 35: Troubleshooting
Troubleshooting Problem Solution The MOTION DETECTION • Check if ‘MOTION DETECTION’ mode is turned on. function is not working. • Check if the MD LEVEL is too low. • Check the setting of the MD AREA. Colors are not quite right. •... - Page 36 v.11.01.11...
