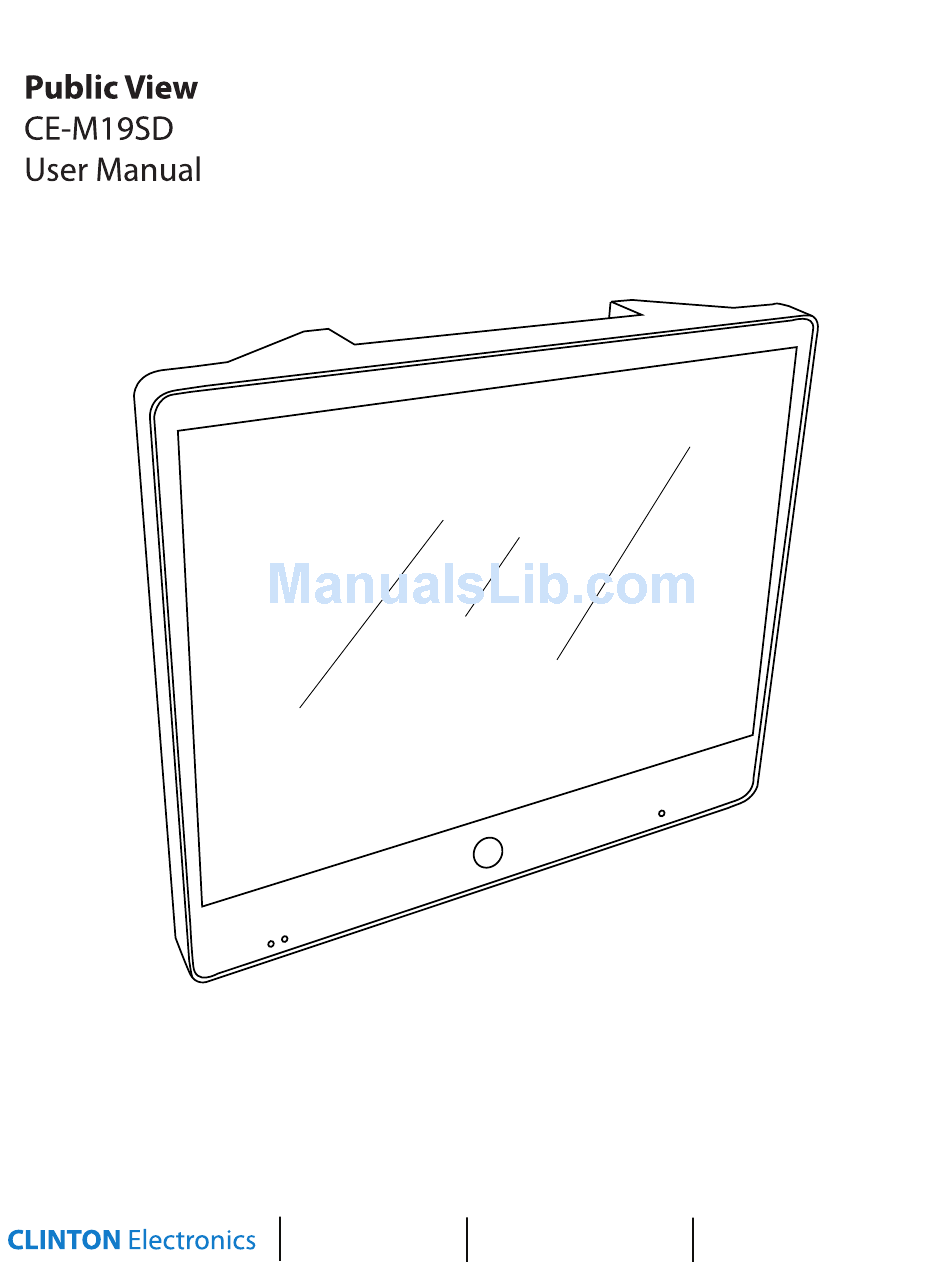

Clinton Electronics Public View CE-M19SD User Manual

Integrated camera security display
Hide thumbs

Advertisement

Quick Links

Download this manual
CLINTON Electronics
6701 Clinton Road
Loves Park, IL 61111
1.800.447.3306 Sales
1.800.549.6393 Support
1.800.633.8712 Fax
www.clintonelectronics.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Public View CE-M19SD and is the answer not in the manual?

Questions and answers

Related Manuals for Clinton Electronics Public View CE-M19SD

Summary of Contents for Clinton Electronics Public View CE-M19SD

  • Page 1 CLINTON Electronics 1.800.447.3306 Sales 6701 Clinton Road 1.800.549.6393 Support www.clintonelectronics.com Loves Park, IL 61111 1.800.633.8712 Fax...
  • Page 4 MENU Exit 912-F8125-0001 Alarm SD-Audio Alarm SD-Audio Alarm SD-Audio Motion Chime Motion Chime Motion Chime WHEN SD CARD IS INSERTED, WHEN SD CARD IS INSERTED, YOU MUST POWER CYCLE. YOU MUST POWER CYCLE. You can do this by pushing the POWER You can do this by pushing the POWER WHEN SD CARD IS INSERTED, button on the long remote,...
  • Page 5 POWER AUTO DOWN MENU POWER AUTO DOWN MENU POWER AUTO DOWN MENU POWER AUTO DOWN MENU POWER AUTO DOWN MENU...
  • Page 6 MENU Exit SOURCE 912-F8125-0001...
  • Page 9 POWER AUTO DOWN MENU POWER AUTO DOWN MENU...
  • Page 10 MENU Exit SOURCE 912-F8125-0001...
  • Page 12 MENU Exit MENU MENU Exit Exit MENU Exit MENU MENU MENU Exit MENU Exit Exit MENU Exit Exit MENU MENU Exit Exit...
  • Page 13 MENU Exit MENU MENU MENU MENU Exit Exit Exit Exit...
  • Page 14 MENU Exit MENU MENU MENU Exit Exit Exit MENU Exit MENU MENU Exit Exit...
  • Page 16 MENU Exit MENU MENU Exit Exit...
  • Page 18 MENU Exit MENU Exit...

  • Page 19: Setup Menu

    POWER AUTO DOWN MENU SETUP Menu LENS • DC EXPOSURE • BRIGHTNESS • SHUTTER • AGC • SENS-UP • RETURN WHITE BALANCE • ATW • OUTDOOR • INDOOR • MANUAL • AWC SSDR • OFF • ON BACKLIGHT • OFF • BLC • HLC DNR3 • OFF • ON DAY / NIGHT • AUTO • COLOR • B/W • EXTERN • IMAGE ADJ. • MONITOR • CAM TITLE SPECIAL • SYNC • MOTION DET • PRIVACY • COMM ADJ...

  • Page 20: Brightness Level

    Notes • A n item with the icon also has sub menus. To select a sub menu, select an item with the icon and press the SET button. • A n item with the - - - icon has no sub-menus available for selection. Notes • I f color rolling occurs when using a DC lens, set Shutter to FLK. • S ome lenses may not work properly, depending on the setting of the BRIGHTNESS LEVEL.
  • Page 21 Notes • W hen using a DC lens, set the shutter mode to A.FLK if color rolling occurs. • W hen the SHUTTER is set to ESC after selecting Internal Synchronization Type, the picture may become unstable if the camera faces a bright fluorescent light. Therefore, take care when choosing the installation position. • W hen the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
  • Page 22 Notes • I f you press the SET button in ‘AUTO’ mode, you can adjust brightness by increasing or decreasing the shutter speed. (x2 ~ x512) • N ote that the higher the zoom level, the brighter the screen, but the more likely it is that an after- image will appear. • A lthough noise, spots, and whitish symptoms may occur in SENS-UP operation when the zoom level is increased, this is normal.      Notes • W hite Balance may not work properly under the following conditions. In this case select the AWC mode. jWhen the color temperature of the environment surrounding the subject is out of the control range (ie. clear sky or sunset). kWhen the ambient illumination of the subject is dim. lIf the camera is directed towards a fluorescent light or is installed in a place where illumination changes dramatically, the White Balance operation may become unstable.
  • Page 24   ...
  • Page 25   Notes • F or effective license plate observation, it needs minimum illumination and fast shutter speed more than 1/200sec. • B ecause there can be a difference in the effectiveness of HLC according to the amount of light area in the screen, optimize the installation angle for the best HLC performance. • W hen dark, the HLC is only activated when a bright light exceeding a specific size in NIGHT ONLY mode. • T he HLC is not activated in day light or when bright light is not present at night in NIGHT ONLY mode.
  • Page 26   Notes • Y ou cannot set the DNR to ‘ON’ or ‘OFF’ when the AGC mode of the EXPOSURE menu is ‘OFF’ . • When adjusting the noise reduction level in DNR mode, remember that the higher the level is set, the greater the reduction in noise level, as will the brightness of the image.
  • Page 27     Notes • W hen using a Video Auto Iris Lens, if you set the lens level to low, automatic switching between Color and Black & White may not occur. • When AGC in the EXPOSURE menu is ‘OFF’ , ‘ --- “ mode operates as like selecting ‘COLOR’ mode, and ‘AUTO’ mode can not be selected.
  • Page 28  Notes • A s the DIS function uses the digital zoom the camera’s resolution will decrease. • DIS doesn’t operate when background illumination is too low. • DIS doesn’t operate when object pattern is monotonic (ie. sky or white wall).
  • Page 29 Notes • W hen the V-REV or H-REV mode is enabled, the text on the screen does not flip. • If you increase the SHARPNESS level too high, the picture may become distorted or noise may appear. ...
  • Page 30  Notes • W hen the CAM TITLE menu is ‘OFF’ , no title will be displayed on the monitor screen even if you enter one. • O nly English is available is this mode. • I f you move the cursor to CLR and press the SET button, all the letters are deleted. To edit a letter, change the cursor to the bottom left arrow and press the SET button. Move the cursor over the letter to be edited, move the cursor to the letter to be inserted and then press the SET button.
  • Page 31  Notes • W hen using AC power at 60Hz frequency, you can use the L/L type synchronization. • W hen the power is DC 12V, the SYNC menu is fixed to the ‘INT’ mode. ...
  • Page 32 ...
  • Page 33   ...
  • Page 34 If you have trouble operating your device, refer to the following table. If the guidelines do not enable you to solve the problem, contact Clinton Electronics Technical Support at 1-800-549-6393 or 815-633-1444. Problem Solution Nothing appears on the • Check the power connection. screen. • Check the video signal line connection. • Check the Brightness of Auto Iris lens. • Press the POWER button on your remote control. • Check to ensure the proper voltage is applied to the display. In the case of long runs or small wire size, there may be a significant volt- age drop to the display resulting in insufficient voltage to properly power the display. Consult your power supply manual to determine if the voltage can be increased to compensate. The video image is not clear. Check if the screen and lens are clean. Clean with a clean cloth. • • Adjust the contrast feature of the monitor. • Make sure that the screen is not exposed directly to a bright light • Enter the OSD settings of the display with the remote control. Go to the SHARPNESS setting and increase the value. NOTE: Pixelization in low light conditions is considered normal. The screen is dark.

  • Page 35: Color (Day & Night)

    Problem Solution The MOTION DETECTION • Check if ‘MOTION DETECTION’ mode is turned on. function is not working. • Check if the MD LEVEL is too low. • Check the setting of the MD AREA. Colors are not quite right. • Check the ‘WHITE BAL’ setting. The screen is flickering. • Check if the camera is facing directly into sunlight or fluorescent light. L/L mode isn’t able to be • Have you connected your camera to DC power source? Connect it to selected. AC power source. L/L mode is not available. •...
