Appendix 2:
Replacing the
Processor
Stage 1: Re-seating the processor
to the correct position
1. Turn off the SQA-Vision and
disconnect the power supply
cable
2. Loose the 4 screws on the rear
panel using a Philips
screwdriver #2 and open the
SQA-Vision
3. Slightly press the center of the
processor with an index finger
to re-seat it into the correct
position
4. Close the SQA-Vision and
tighten all screws of the rear
panel
5. Connect the power cable of the
SQA-Vision
6. Turn the SQA-Vision on and run
the SELF-TEST
7. If the SQA-Vision passes, the
repair process is complete
8. If the SQA-Vision does not
turn-on or fails the self- test,
go to Stage 2
Stage 2: Replace the damaged
processor
1. Turn off the SQA-Vision and
disconnect the power supply
cable
2. Release the 4 screws on the
rear panel using a Philips
screwdriver #2 and open the
SQA-Vision
3. Remove the damaged
processor using extractor
tweezers as shown on the
figure to the right
Edition rev.: Jan 2020
Service Manual Version 109.13.4
Instructions for RE-SEATING or REPLACING the SQA-Vision PROCESSOR
Applies to all SQA-Vision system versions

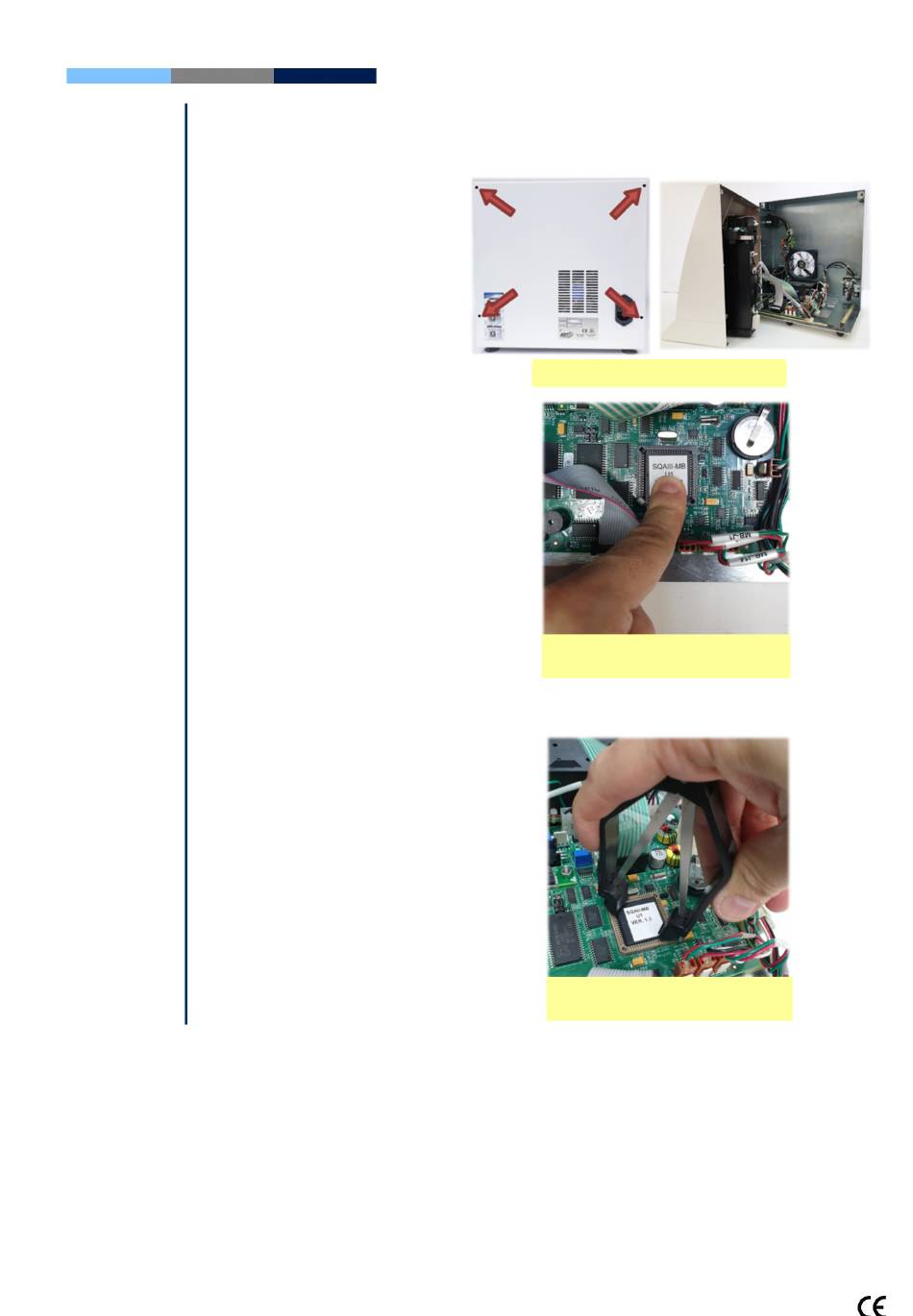

Open the SQA-Vision
Slightly press the center of
the processor
Remove the damaged
25
processor
