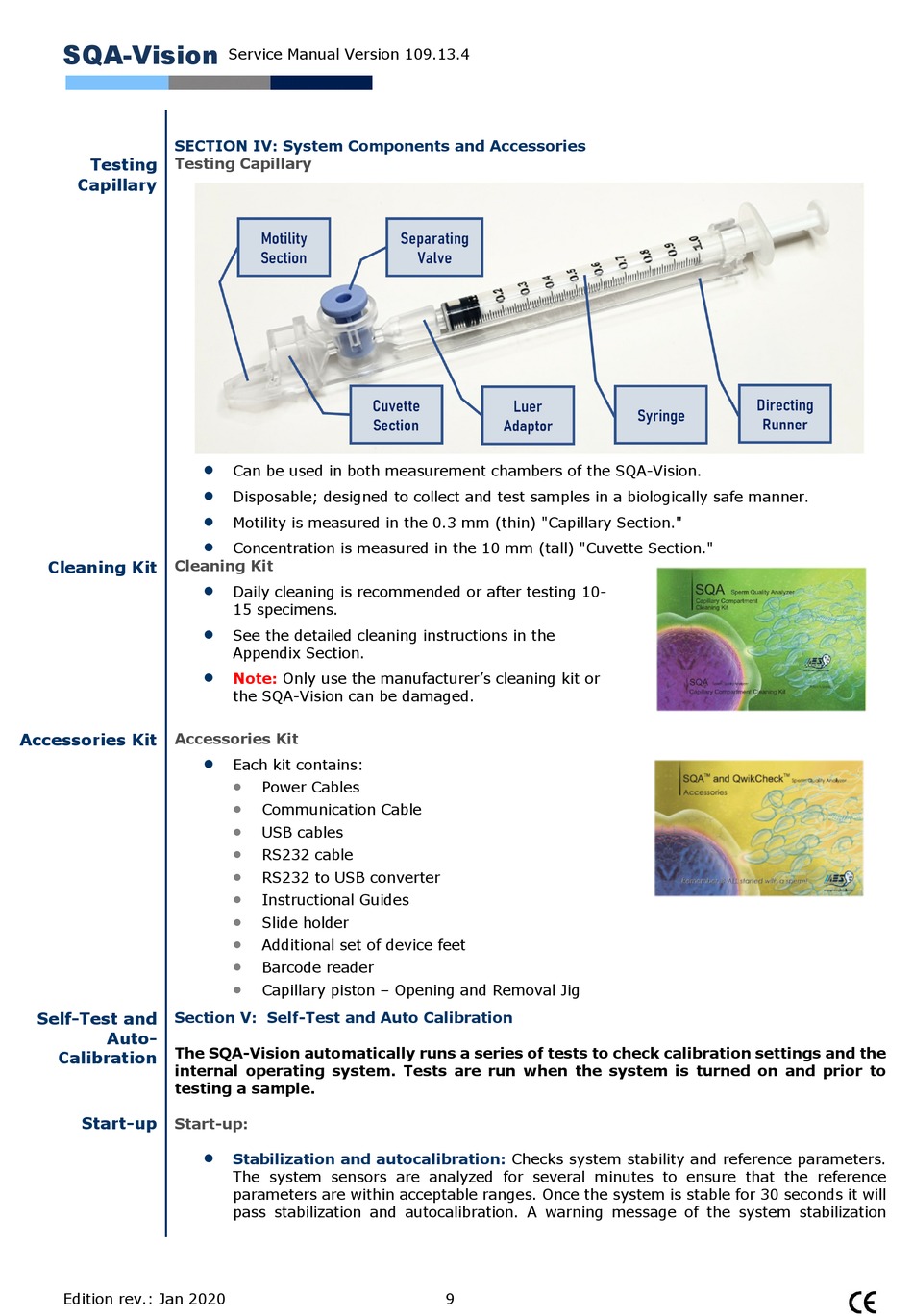

SECTION IV: System Components and Accessories

Testing Capillary

Testing
Capillary
Cleaning Kit Cleaning Kit
Accessories Kit
Accessories Kit
Section V: Self-Test and Auto Calibration
Self-Test and
Auto-
The SQA-Vision automatically runs a series of tests to check calibration settings and the
Calibration
internal operating system. Tests are run when the system is turned on and prior to
testing a sample.
Start-up
Start-up:
Edition rev.: Jan 2020
Service Manual Version 109.13.4

Can be used in both measurement chambers of the SQA-Vision.

Disposable; designed to collect and test samples in a biologically safe manner.

Motility is measured in the 0.3 mm (thin) "Capillary Section."

Concentration is measured in the 10 mm (tall) "Cuvette Section."

Daily cleaning is recommended or after testing 10-
15 specimens.

See the detailed cleaning instructions in the
Appendix Section.

Note: Only use the manufacturer's cleaning kit or
the SQA-Vision can be damaged.

Each kit contains:

Power Cables

Communication Cable

USB cables

RS232 cable

RS232 to USB converter

Instructional Guides

Slide holder

Additional set of device feet

Barcode reader

Capillary piston – Opening and Removal Jig

Stabilization and autocalibration:
The system sensors are analyzed for several minutes to ensure that the reference
parameters are within acceptable ranges. Once the system is stable for 30 seconds it will
pass stabilization and autocalibration. A warning message of the system stabilization
Checks system stability and reference parameters.
