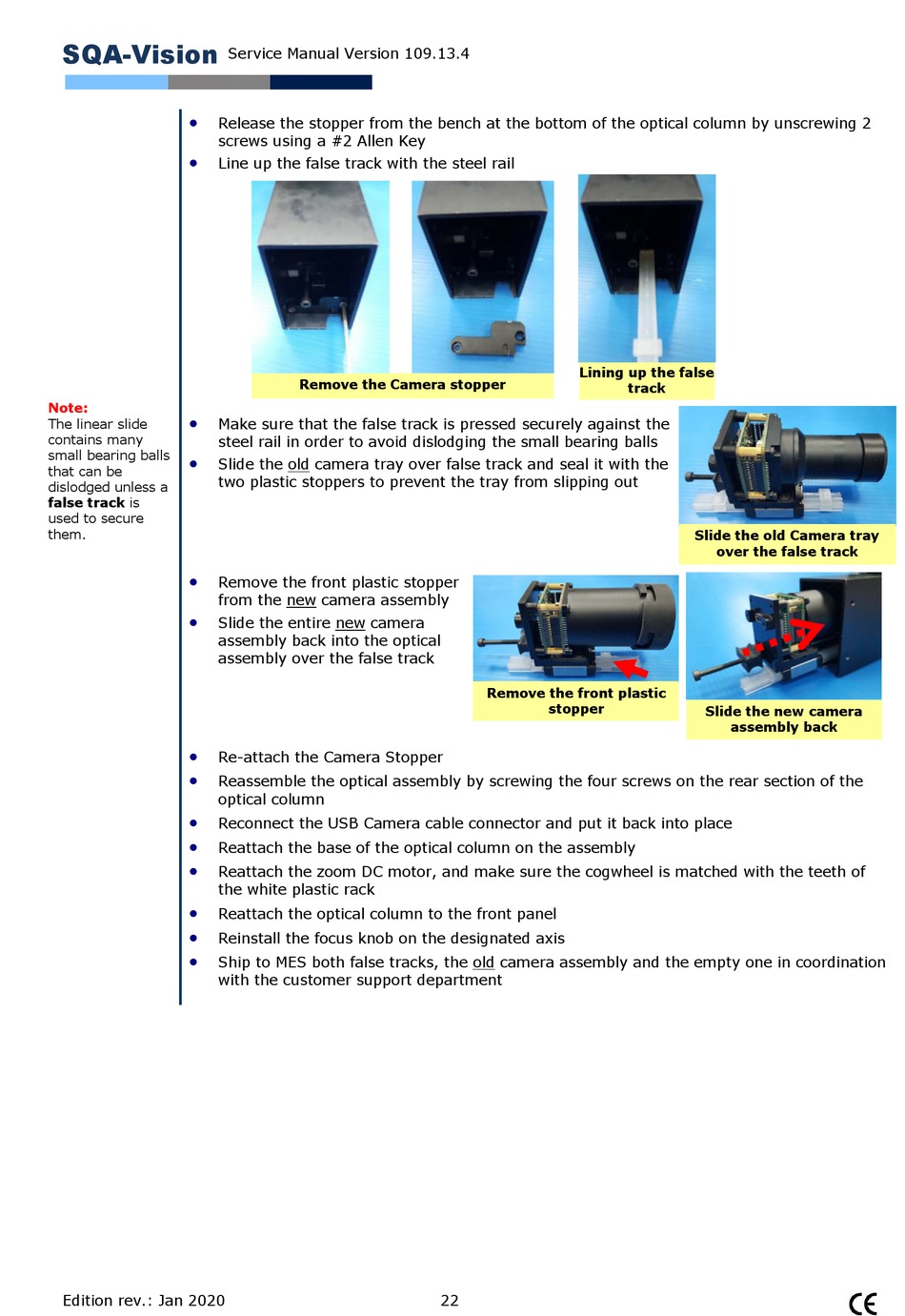

MES SQA-Vision Service Manual page 22

SQA-Vision

Release the stopper from the bench at the bottom of the optical column by unscrewing 2
screws using a #2 Allen Key

Line up the false track with the steel rail
Note:

Make sure that the false track is pressed securely against the
The linear slide
contains many
steel rail in order to avoid dislodging the small bearing balls
small bearing balls

Slide the old camera tray over false track and seal it with the
that can be
two plastic stoppers to prevent the tray from slipping out
dislodged unless a
false track is
used to secure
them.

Remove the front plastic stopper
from the new camera assembly

Slide the entire new camera
assembly back into the optical
assembly over the false track

Re-attach the Camera Stopper

Reassemble the optical assembly by screwing the four screws on the rear section of the
optical column

Reconnect the USB Camera cable connector and put it back into place

Reattach the base of the optical column on the assembly

Reattach the zoom DC motor, and make sure the cogwheel is matched with the teeth of
the white plastic rack

Reattach the optical column to the front panel

Reinstall the focus knob on the designated axis

Ship to MES both false tracks, the old camera assembly and the empty one in coordination
with the customer support department
Edition rev.: Jan 2020
Service Manual Version 109.13.4
Remove the Camera stopper
Lining up the false
Remove the front plastic
stopper
22
track
Slide the old Camera tray
over the false track
Slide the new camera
assembly back
