SQA-Vision
Service Manual Version 109.13.4


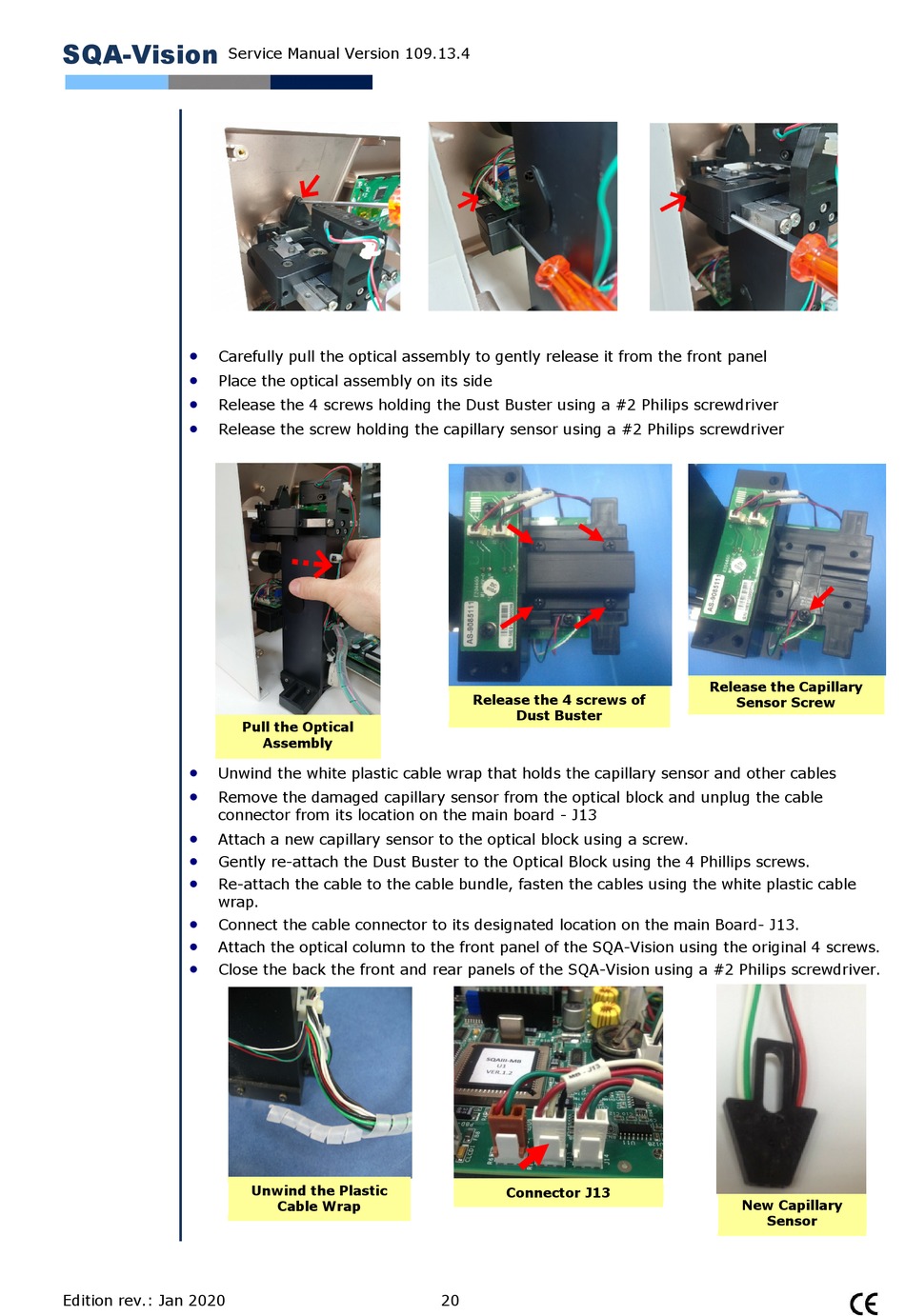

Carefully pull the optical assembly to gently release it from the front panel

Place the optical assembly on its side

Release the 4 screws holding the Dust Buster using a #2 Philips screwdriver

Release the screw holding the capillary sensor using a #2 Philips screwdriver

Unwind the white plastic cable wrap that holds the capillary sensor and other cables

Remove the damaged capillary sensor from the optical block and unplug the cable
connector from its location on the main board - J13

Attach a new capillary sensor to the optical block using a screw.

Gently re-attach the Dust Buster to the Optical Block using the 4 Phillips screws.

Re-attach the cable to the cable bundle, fasten the cables using the white plastic cable
wrap.

Connect the cable connector to its designated location on the main Board- J13.

Attach the optical column to the front panel of the SQA-Vision using the original 4 screws.

Close the back the front and rear panels of the SQA-Vision using a #2 Philips screwdriver.
Edition rev.: Jan 2020
Pull the Optical
Assembly
Unwind the Plastic
Cable Wrap
Release the 4 screws of
Dust Buster
Connector J13
20
Release the Capillary
Sensor Screw
New Capillary
Sensor
