4. Replace the damaged processor
with a new processor according
to the following directions:

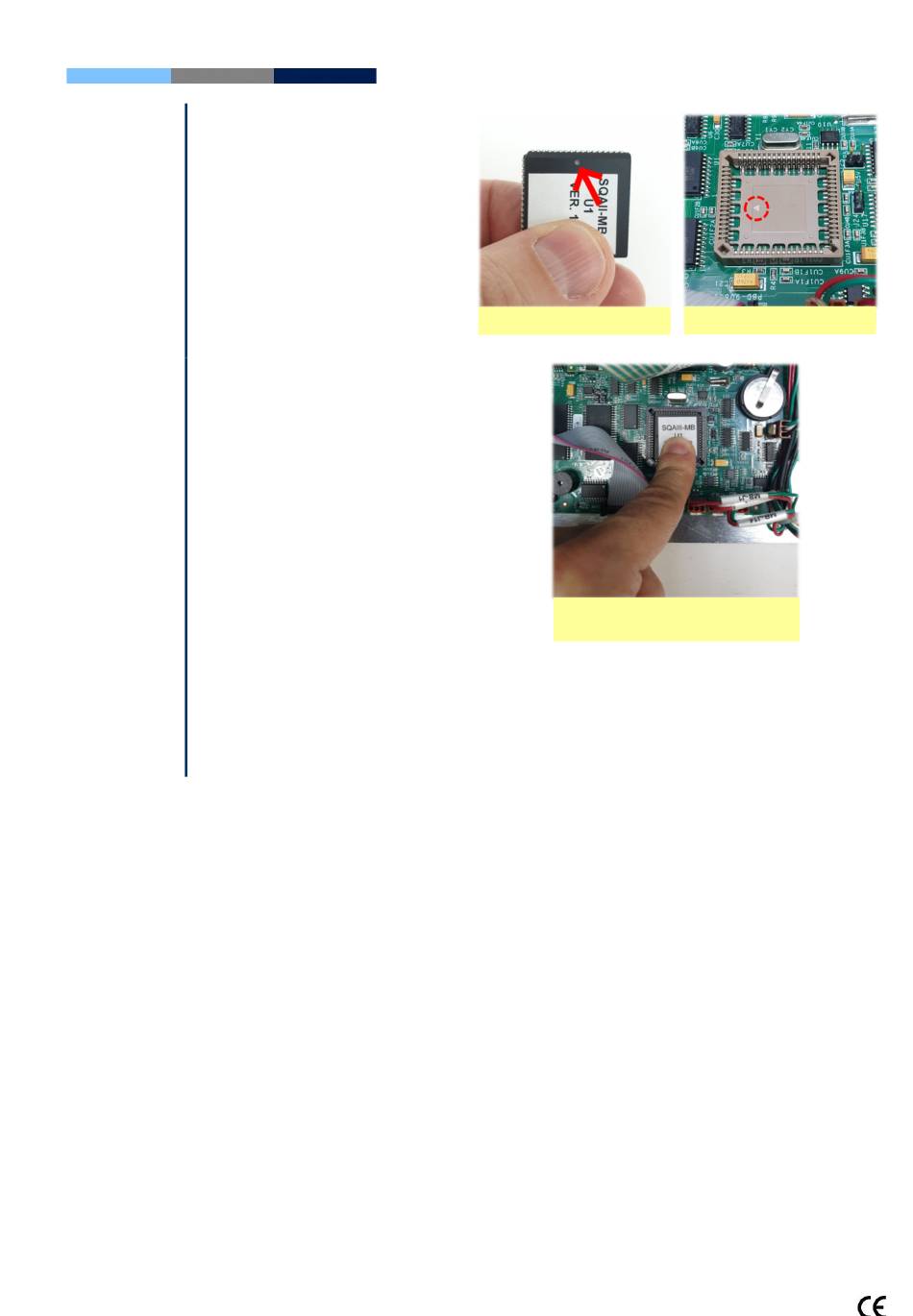

Align the "dot" which is marked
on the processor with the
"Arrow" mark on the processor
socket (see the figure to the
right)
5. Slightly press the center of the
processor with an index finger
to re-seat it into the correct
position (see the figure to the
right)
6. Close the SQA-Vision and tighten all screws of the rear panel
7. Connect the power cable of the SQA-Vision
8. Turn on the SQA-Vision and verify that it successfully passes the SELF-TEST
Edition rev.: Jan 2020
Dot mark
Slightly press the center of
26
Arrow mark
the processor
