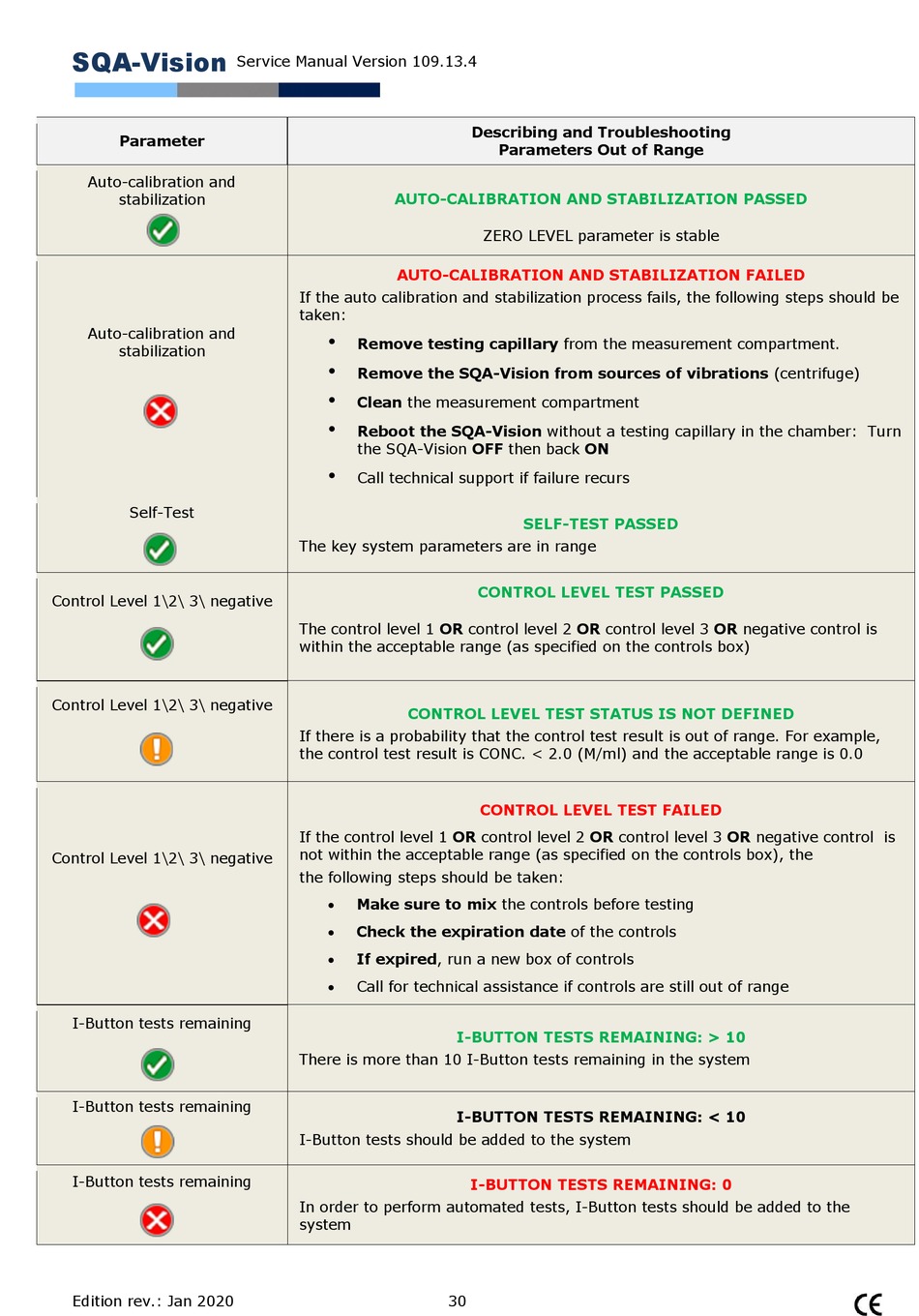

MES SQA-Vision Service Manual page 30

SQA-Vision
Parameter
Auto-calibration and
stabilization
Auto-calibration and
stabilization
Self-Test
Control Level 1\2\ 3\ negative
Control Level 1\2\ 3\ negative
Control Level 1\2\ 3\ negative
I-Button tests remaining
I-Button tests remaining
I-Button tests remaining
Edition rev.: Jan 2020
Service Manual Version 109.13.4
AUTO-CALIBRATION AND STABILIZATION PASSED
AUTO-CALIBRATION AND STABILIZATION FAILED
If the auto calibration and stabilization process fails, the following steps should be
taken:
•
Remove testing capillary from the measurement compartment.
•
Remove the SQA-Vision from sources of vibrations (centrifuge)
•
Clean the measurement compartment
•
Reboot the SQA-Vision without a testing capillary in the chamber: Turn
the SQA-Vision OFF then back ON
•
Call technical support if failure recurs
The key system parameters are in range
The control level 1 OR control level 2 OR control level 3 OR negative control is
within the acceptable range (as specified on the controls box)
CONTROL LEVEL TEST STATUS IS NOT DEFINED
If there is a probability that the control test result is out of range. For example,
the control test result is CONC. < 2.0 (M/ml) and the acceptable range is 0.0
If the control level 1 OR control level 2 OR control level 3 OR negative control is
not within the acceptable range (as specified on the controls box), the
the following steps should be taken:
Make sure to mix the controls before testing

Check the expiration date of the controls

If expired, run a new box of controls

Call for technical assistance if controls are still out of range

There is more than 10 I-Button tests remaining in the system
I-Button tests should be added to the system
In order to perform automated tests, I-Button tests should be added to the
system
Describing and Troubleshooting
Parameters Out of Range
ZERO LEVEL parameter is stable
SELF-TEST PASSED
CONTROL LEVEL TEST PASSED
CONTROL LEVEL TEST FAILED
I-BUTTON TESTS REMAINING: > 10
I-BUTTON TESTS REMAINING: < 10
I-BUTTON TESTS REMAINING: 0
