8.1 Logic Analyzer 1
Connector
Description
®
AVR ATmegaICE User Guide

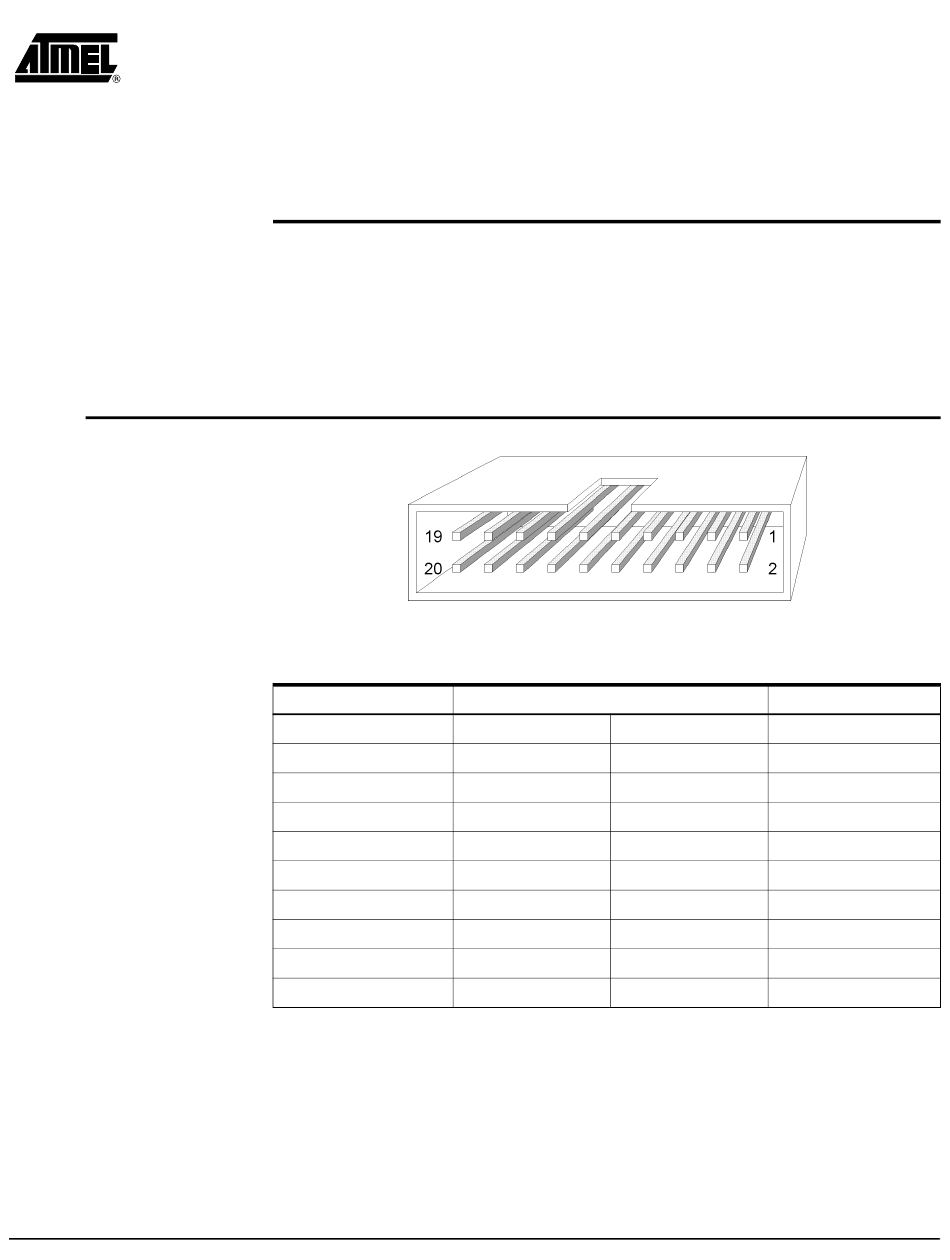

Figure 8-1. Logic Analyzer 1 Connector
The connector marked "Logic Analyzer 1" on the back panel of the AVR ICE unit has the
following pin-out with signals from the instruction address bus.
Table 8-1. Logic Analyzer Connector 1
SIGNAL
AVRCLK
Low
A14
A12
A10
A8
A6
A4
A2
A0
AVR ATmegaICE

Connector Description

Logic Analyzer 1
Pin 1 Pin 2
Pin 3 Pin 4
Pin 5 Pin 6
Pin 7 Pin 8
Pin 9 Pin 10
Pin 11 Pin 12
Pin 13 Pin 14
Pin 15 Pin 16
Pin 17 Pin 18
Pin 19 Pin 20
Section 8
SIGNAL
Low
A15
A13
A11
A9
A7
A5
A3
A1
GND
8-1
