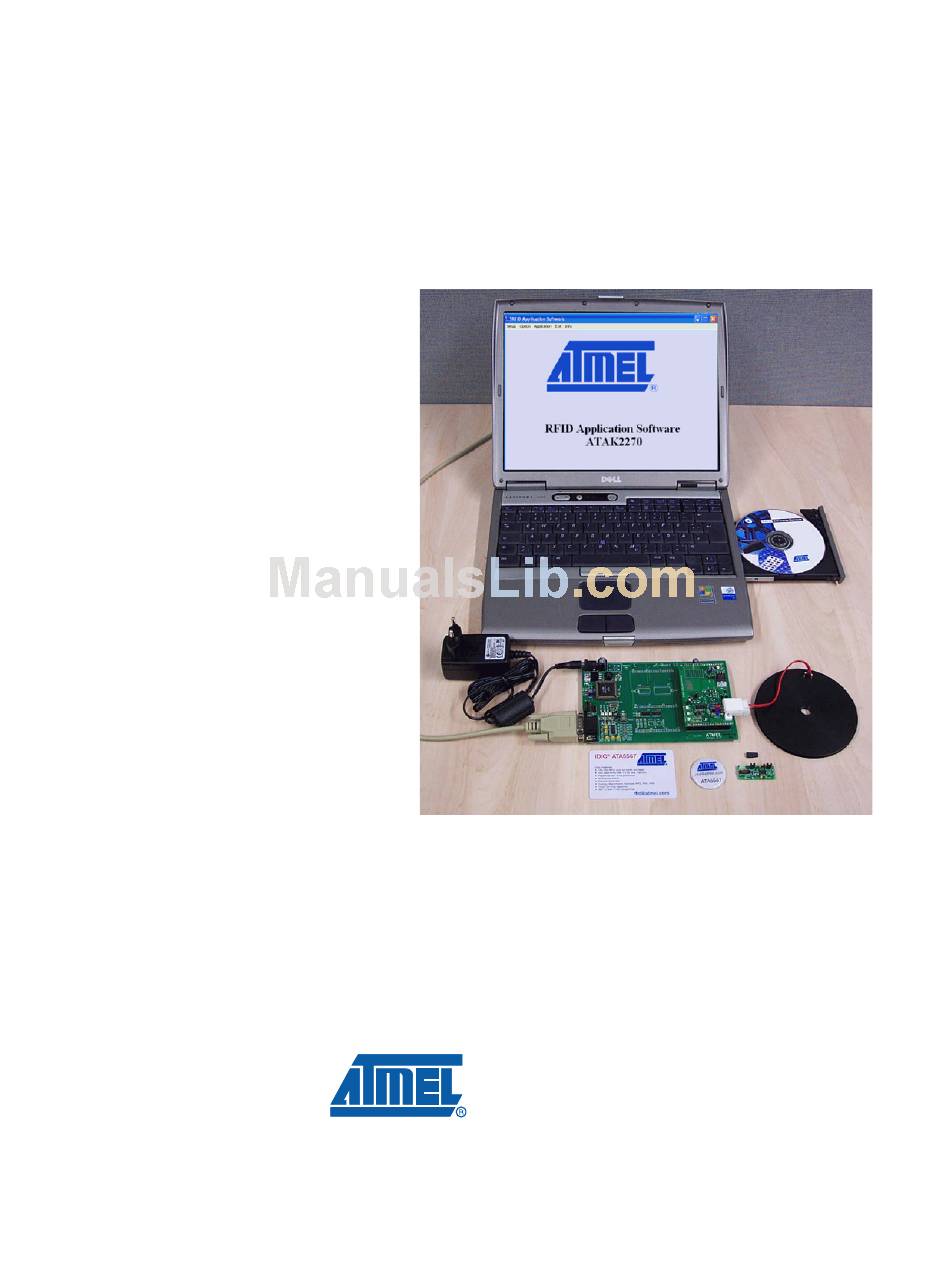

  • Page 1 RFID Application Kit ATAK2270 User Manual 4871E–RFID–04/08...

  • Page 2: Table Of Contents

    Table of Contents Section 1 Introduction... 1-1 RFID Products Promoted by ATAK2270 Kit ... 1-1 Included Hardware Components ... 1-1 Equipment Needed ... 1-1 Section 2 Getting Started ... 2-1 Hardware Settings and Connector Positions ... 2-1 Software Installation... 2-3 2.2.1...
  • Page 3 T5557/ATA5567 Multifunction Read/Write Transponder ... 5-11 ATA5570 Multifunction Read/Write Transponder with Sensor Input ... 5-15 ATA5577 Enhanced Read/Write Transponder with AFE-Options ... 5-16 Password PWD Mode... 5-23 Answer On Request AOR Mode... 5-24 Readout Manufacturer (Traceability) Data... 5-25 RFID Application Kit ATAK2270 User Manual...

  • Page 4: Introduction

    RFID Products Promoted by ATAK2270 Kit The RFID application kit (ordering code ATAK2270) promotes the key features of various RFID products ® from Atmel The following products are supported by the kit: U2270B TK5530/e5530 TK5551 TK5552/T5552 T5557/ATA5567 ATA5570 ATA5577 Included Hardware Components Microcontroller board with piggybacked antenna board Reader antenna coil 100 mm , L = 700 µH, Q = 36...

  • Page 5: Getting Started

    Check that jumper J3 on the antenna interface is in the default position en. Figure 2-1. Application Board Unit RFID Application Kit ATAK2270 User Manual ® ATmega8515L controls piggiybacked reader interface and maintains the Section 2 Getting Started 4871E–RFID–04/08...
  • Page 6 Getting Started Figure 2-2. Antenna Interface Board Figure 2-3. Application Board Top View 4871E–RFID–04/08 RFID Application Kit ATAK2270 User Manual...

  • Page 7: Software Installation

    ISP is a downloading method. Only six I/O lines are needed. The provided header works with the ATSTK500 as well as the AVR ISP In-System Programmer. Both of these are available from Atmel or distributors for very low cost program development. To program the flash memory and the EEPROM, first connect the programming tool to the MB using a six-pin ribbon connector.

  • Page 8: Description Of The Application Board System

    System Overview The ATAK2270 application board unit main board equipped with the Atmel AVR antenna interface board containing the U2270B reader IC. The following functionality is controlled by the AVR microcontroller: Handling of the bi-directional data communication between the RS232 interface and the host PC...

  • Page 9: Frequency Tuning Mode Selection

    The status of the RF field controlled by the microcontroller is indicated by the yellow LED RF on. 4871E–RFID–04/08 Tuning Mode Disabled Enabled 134.2 kHz (acc. ISO11784/85) 130 kHz 125 kHz 121 kHz Figure 2-2, see Table 5-1 for interpretation). Jumper J3 Position RFID Application Kit ATAK2270 User Manual...
  • Page 10 Description of the Application Board System Figure 3-1. Circuit Diagram of the Antenna Interface RFID Application Kit ATAK2270 User Manual 4871E–RFID–04/08...

  • Page 11: Antenna Interface Parts List

    SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 5.6V SOT23 PLCC2 PLCC2 PLCC2 PLCC2 SOT23 SOT23 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 0805 RFID Application Kit ATAK2270 User Manual...
  • Page 12 Gold-pin block for jumper (1 2 gold-pin block 1 The antenna coil included in the kit measures the following parameters related to 125 kHz: Inductance Coil diameter Winding number Wire diameter RFID Application Kit ATAK2270 User Manual radial 0805 0805 radial radial radial...

  • Page 13: Power Supply

    5. Choose the Write tab to program the indicated data blocks of the transponder 6. Select Program Transponder. 7. To read out the transponder, click on the Read button in the Read tab to show the transponder code. RFID Application Kit ATAK2270 User Manual Section 4 Section 2.2.

  • Page 14: Host Software

    Figure 5-1. Start Window of the ATAK2270 Host Software Software Structure The software included supports the following Atmel transponder types: TK5530/e5530 read-only TK5551 read/write TK5552/T5552 read/write (1 kBit) T5557/ATA5567 multifunctional read/write ATA5570 multifunctional read/write with sensor input ATA5577 Advanced multifunctional read/write All transponder types and their particular features and functions can be controlled by the same host soft- ware.

  • Page 15: Start Window

    The currently selected frequency stage is indicated on the application board, binary encoded by the Tune1 and Tune2 LEDs (for interpretation, see 4871E–RFID–04/08 (Figure 5-2). The user interface Table 5-1). RFID Application Kit ATAK2270 User Manual...

  • Page 16: Options

    Clicking Demoboard Reset resets the application board and returns all changes in the option menu to the default values. The reset can also be triggered by pressing F12. Figure 5-5. RF-Field Menu 5.2.3 Application Figure 5-6. Application Menu RFID Application Kit ATAK2270 User Manual Tune1 Frequency High Semi High Semi Low (default) Host Software 4871E–RFID–04/08...
  • Page 17 Load standand block... buttons. Clicking the Write button, sends the bit string to the transponder using the write times specified in the Writing Timing area. Figure 5-7. Write Bitstring Window 4871E–RFID–04/08 RFID Application Kit ATAK2270 User Manual...

  • Page 18: Exit

    Exit To exit the program, click Exit. 5.2.5 Info To see information about the software version and release date, Clicking About in the Info menu. RFID Application Kit ATAK2270 User Manual Rf/32 Manchester Block 1 to 2 Header Host Software...

  • Page 19: Transponder Type Software Interface Description

    PC. The Default button restored the default settings. The Cancel button is used to exit the application. 4871E–RFID–04/08 Rf/32, Rf/40 or Rf/64 Manchester or Bi-phase 32, 64, 96 or 128 bit Header RFID Application Kit ATAK2270 User Manual...

  • Page 20: Tk5552/T5552 Read/Write Transponder

    (The transponder should be placed close to the application board antenna) The timing parameters for decoding can be set in the Read Timing area. For standard read mode, the default values can be used. RFID Application Kit ATAK2270 User Manual Rf/16 and Rf/32 Manchester and PSK Block0, Block1, Block1 to 2, Block 1 to 3, ..., Block 1 to 31...
  • Page 21 The Reset Transponder button sends the reset command to the transponder. (There is no change in the configuration or data blocks of the transponder.) To exit the TK5552 user interface, click on the Cancel button. 4871E–RFID–04/08 RFID Application Kit ATAK2270 User Manual...

  • Page 22: Tk5551 Read/Write Transponder

    The base station IC U2270B does not support the reading of all bit rates and codings offered by the tran- sponder type. If a non-supported mode is configured, a warning message will be displayed on the screen. RFID Application Kit ATAK2270 User Manual Rf/8, Rf/16, Rf/32, Rf/40, Rf/50, Rf/64, Rf/100 and Rf/128 Manchester, Biphase, direct, PSK..., FSK,...
  • Page 23 Lock check box. Once the lock bit is set, the information cannot be overwritten. Use this fea- ture with care. Click the Default button to restore the default settings. To exit the TK5551 user interface, click the Cancel button. 5-10 4871E–RFID–04/08 RFID Application Kit ATAK2270 User Manual...

  • Page 24: T5557/Ata5567 Multifunction Read/Write Transponder

    Traceability Manufacturer Data The operation in Password PWD, Answer AOR, or Direct Access Mode can be handled as described in Section 5.4 ”Operating Common Transponder Features” RFID Application Kit ATAK2270 User Manual Section 5.3.3 ”TK5551 Read/Write Transponder” Host Software 5-11...
  • Page 25 Answer On Request (AOR): Activates anticollision mode. (When this check box is selected, an additional button appears for AOR wake-up.) (Not activated is the default.) 5-12 4871E–RFID–04/08 (Figure 5-15). The Read tab is divided into two areas – RFID Application Kit ATAK2270 User Manual...
  • Page 26 Click the Direct Access button to read data blockwise from page 0. Select the required block number from the drop-down list. To read data without using the block header, it is useful to configure the tran- sponder to match the Sequence Start Terminator signature in advance. RFID Application Kit ATAK2270 User Manual Host Software 5-13...
  • Page 27 Use this feature with care. Click the Default button to restore the default setting. To exit the T5557 user interface, click the Cancel button. 5-14 4871E–RFID–04/08 Section 5.4.3 ”Readout Manufacturer (Traceability) Data” RFID Application Kit ATAK2270 User Manual...

  • Page 28: Ata5570 Multifunction Read/Write Transponder With Sensor Input

    To read out the traceability data, jumper J2 on the transponder board has to be replaced, and the Inverse Data check box in the Configuration Setup menu must be selected. Do not execute the Transponder Config- uration command. RFID Application Kit ATAK2270 User Manual Resistance Pin 4-5 >...

  • Page 29: Ata5577 Enhanced Read/Write Transponder With Afe-Options

    Basic Mode: Inverse Data, Fast Write, and OTP protection check boxes as well as a larger choice of bit rates. These settings are not available with the Basic Mode. Figure 5-21. Transp. Settings Tab 5-16 4871E–RFID–04/08 RFID Application Kit ATAK2270 User Manual...
  • Page 30 ID-Code Length: Password: Lock Config. Block: Answer On Request: RFID Application Kit ATAK2270 User Manual Fixed Bit Length, Long Leading Reference or Leading Zero Reference (1-of-4 Coding is not supported by the software) Not released for Basic Mode selection Section 5.4.1 ”Password PWD Mode”...
  • Page 31 Fixed Bit Length, Long Leading Ref, Leading Zero Ref, 1of 4 Coding Ref Setting this bit locks the whole configuration block of the transponder. Once locked, the configuration can never be changed. Use this feature with care. RFID Application Kit ATAK2270 User Manual...
  • Page 32 The default write timing set should be suitable for typical antenna with Q factors in low to medium range. For special transponders, three ranges of antenna Q factors are selectable. According to Q selection, the required write timing parameters are transferred to the timing window. RFID Application Kit ATAK2270 User Manual Host Software 5-19...
  • Page 33 (in Hex). Note, before reading, the transponder needs to be configured with terminator synchronization. 5-20 4871E–RFID–04/08 Figure 5-24. Select the Page radio button, (Page 0 or Page 1), then select the RFID Application Kit ATAK2270 User Manual...
  • Page 34 Transponder manufacturer data can be read by clicking the Traceability Data button ating Common Transponder Features” 5.3.6.6 Selecting ISO 11784 Setup tab Figure 5-25. ATA5577 ISO 11784 Setup Menu RFID Application Kit ATAK2270 User Manual Host Software (Section 5.4.2 (Section 5.4 ”Oper- 5-21...
  • Page 35 11 bit (00000000001) free decimal number [0 to 274 877 906 943], default 1 according to ISO 3166 default 999 for test purpose default not activated free decimal number [0 to 16 383] default activated RFID Application Kit ATAK2270 User Manual...

  • Page 36: Operating Common Transponder Features

    1. Deselect the Password check box in the Transp. Settings (Read) tab and click Write Configuration Set. (Configure Transponder). Password mode is disabled. 2. Deactivate the Password check box in the Downlink area. (Not needed for 5551, 5557 and 5567) RFID Application Kit ATAK2270 User Manual RF/32 Manchester...

  • Page 37: Answer On Request Aor Mode

    No transponder can be read. 8. Repeat Step 2. 5-24 4871E–RFID–04/08 RF/32 Manchester Block 1to7 Terminator (select the Terminator check-box) Step 5. to configuring each transponder for selective AOR operation. Step 7. to read the next transponder. RFID Application Kit ATAK2270 User Manual...

  • Page 38: Readout Manufacturer (Traceability) Data

    Readout Manufacturer (Traceability) Data The Traceability Data button allows direct access to block 1 an 2 of page 1 which contain the 64-bit traceability data programmed and locked by Atmel during production. The data consist of both, ISO/IEC15693 and ISO/IEC7816-6 compliant identifiers:...
