Axis A8105-E Tech Note

Configure the network video door station for the cybergate service
Hide thumbs Also See for A8105-E:

Advertisement

Quick Links

Download this manual
TechNote:
AXIS and
CyberGate
Version:
1.0.2 ENG
Date:
26-08-2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the A8105-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis A8105-E

Summary of Contents for Axis A8105-E

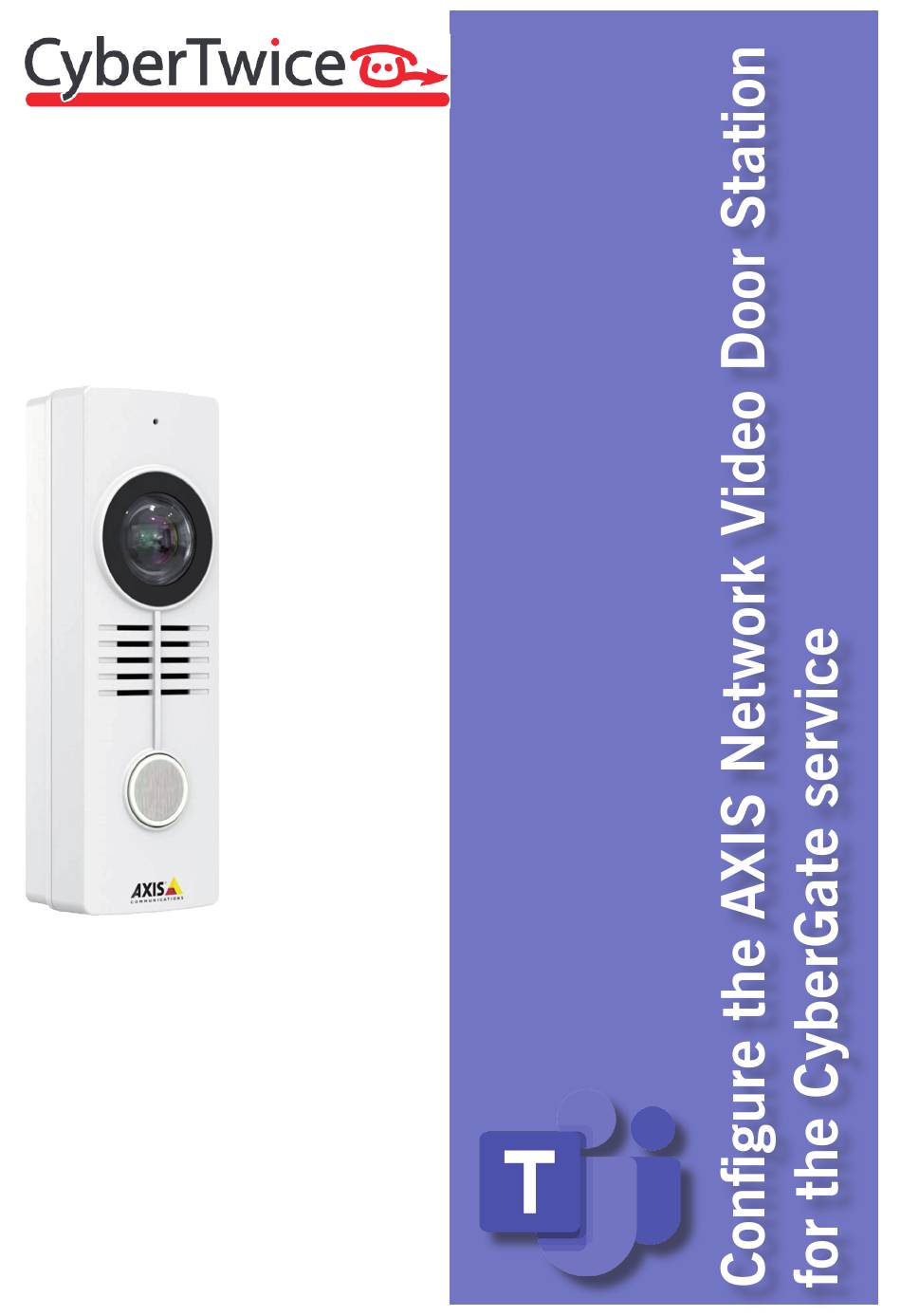

  • Page 1 TechNote: AXIS and CyberGate Version: 1.0.2 ENG Date: 26-08-2022...
  • Page 2 Via the CyberGate application that runs in Microsoft Azure you can now connect an AXIS Nework Video Door Station to your Microsoft Teams environment. Microsoft Teams users can answer incoming calls from- or place outgoing calls to the intercom –...

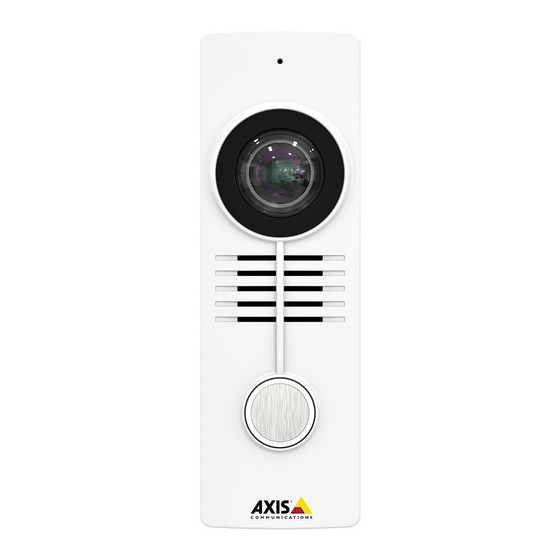

  • Page 3 Configure the AXIS Network Video Doorstation for the CyberGate service AXIS Network Video Doorstation For this document the AXIS A8105-E Network Video Doorstation (from now on named ‘AXIS’) is used to connect to the CyberGate service (from now on named ‘CyberGate’).
  • Page 4 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Set the Capture Mode: Set the used power line frequency: When logged-in, the live view opens...
  • Page 5 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service At the top, click ‘Setup’ Click on ‘Date& Time’ to set the correct Time zone. Click the Save button to confirm.
  • Page 6 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Click on ‘VoIP Settings’ and at Account settings ‘Configure’ Remove the default ‘peer-to-peer entry with ‘Remove’, after that add a new entry by clicking on ‘Add’...
  • Page 7 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Provide the following information: Name Name of the SIP account, in this example ‘CyberGate’ Default account Enable by checking the checkbox User ID Use the Username provided by the CyberGate service...
  • Page 8 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Click ‘Network’ to set the SIP connection parameters By default it uses UDP to connect to CyberGate. You can change it to TCP when needed. To establish a secure connection to CyberGate, modify the following settings:...
  • Page 9 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Click ‘Video’ to set the video parameters for SIP Set the Resolution to 720p and set the View area to Landscape. Click the Save button to confirm.
  • Page 10 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Click on ‘SIP Settings’ and enable SIP by checking ‘Enable SIP’’: Click the Save button to confirm.
  • Page 11 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Click on ‘Events’: Click on ‘Recipients’ and ‘Add’ to add the recipient to call...
  • Page 12 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Provide the following information: Name Name of the recipient, in this example ‘Teams User’ Type Select ‘SIP’ To SIP address Use the Teams user address with after the @ cybergate.cybertwice.com instead of your own domain.
  • Page 13 Click on ‘Action Rules’ and select the Teams user at the ‘Button’ action. Doing this will result in the calling of the Teams recipient when the button on the AXIS is pressed. After this, press the button on the AXIS to call the Teams recipient.
  • Page 14 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service To run configured actions (such as door opening) from the Teams call, click on the three dots (...) in the call screen and select the ‘Keypad’. Use the dtmf code (as configured in the menu VoIP-DTMF Settings), this will trigger any action to...
  • Page 15 CyberTwice Configure the AXIS Network Video Doorstation for the CyberGate service Document History Document Version Date Author Change 1.0.0 06-10-2020 KR Initial version 1.0.1 13-01-2021 KR Added page numbers to the document and changed receiptient SIP address (page 8) 1.0.2...
