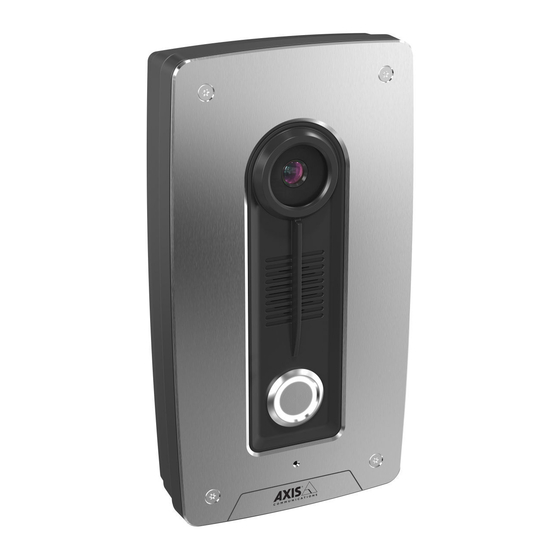

AXIS A8004-VE installation

Relay powered by PoE (12V)

NO/
NO/
-
CO
12V
CO
NC
NC
Configure relay state in AXIS A8004-VE
built-in web pages
1.
To check relay state, go to:
Setup > System Options > Ports & Devices > I/O ports
PoE+ Switch
2.
Depending on your lock type, con gure the following values
for RELAY, and click Save.
Open circuit for a fail-secure lock
Closed circuit for a fail-safe lock
I/O
Port Type
RELAY1
Relay
Name
Usage
Normal state is...
Current Status
Door
Door
Open circuit
Open circuit
Open circuit
Closed circuit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A8004-VE and is the answer not in the manual?

Questions and answers

Related Manuals for Axis A8004-VE

Summary of Contents for Axis A8004-VE

  • Page 1 AXIS A8004-VE installation Configure relay state in AXIS A8004-VE Relay powered by PoE (12V) built-in web pages To check relay state, go to: Setup > System Options > Ports & Devices > I/O ports PoE+ Switch Depending on your lock type, con gure the following values for RELAY, and click Save.
  • Page 2 AXIS A8004-VE installation Configure relay state in AXIS A8004-VE Two lock relays powered by PoE (12V) built-in web pages To check relay state, go to: Setup > System Options > Ports & Devices > I/O ports PoE+ Switch Depending on your lock type, con gure the following values for RELAY, and click Save.
  • Page 3 AXIS A8004-VE installation Configure relay state in AXIS A8004-VE One relay powered by PoE (12V), one relay powered by built-in web pages external power supply (max 0.7A at 30V) To check relay state, go to: Setup > System Options > Ports & Devices > I/O ports...
  • Page 4 AXIS A8004-VE installation Configure relay state in AXIS A8004-VE One relay powered by PoE (12V), one relay potential-free built-in web pages contact (door chimes etc.) To check relay state, go to: Setup > System Options > Ports & Devices > I/O ports...
  • Page 5 AXIS A8004-VE installation Configure relay state in AXIS A8004-VE Power 12V fail-secure lock by PoE+ from door station built-in web pages To check relay state, go to: Setup > System Options > Ports & Devices > I/O ports PoE+ Switch Depending on your lock type, con gure the following values for RELAY, and click Save.
  • Page 6 AXIS A8004-VE installation Configure relay state in AXIS A8004-VE Power 24V fail-secure lock by PoE+ from door station built-in web pages To check relay state, go to: Setup > System Options > Ports & Devices > I/O ports PoE+ Switch Depending on your lock type, con gure the following values for RELAY, and click Save.
  • Page 7 AXIS A8004-VE installation Configure relay state in AXIS A8004-VE Power 12V fail-secure lock by external power supply built-in web pages To check relay state, go to: Setup > System Options > Ports & Devices > I/O ports PoE+ Switch Depending on your lock type, con gure the following values for RELAY, and click Save.
