19-03783-90
20-03797-10
16-03870-90
Drivers side Configuration
all 5.5' Bed Lenghts
1
Note: Part 5-03840-90 may not have angle cut in part.

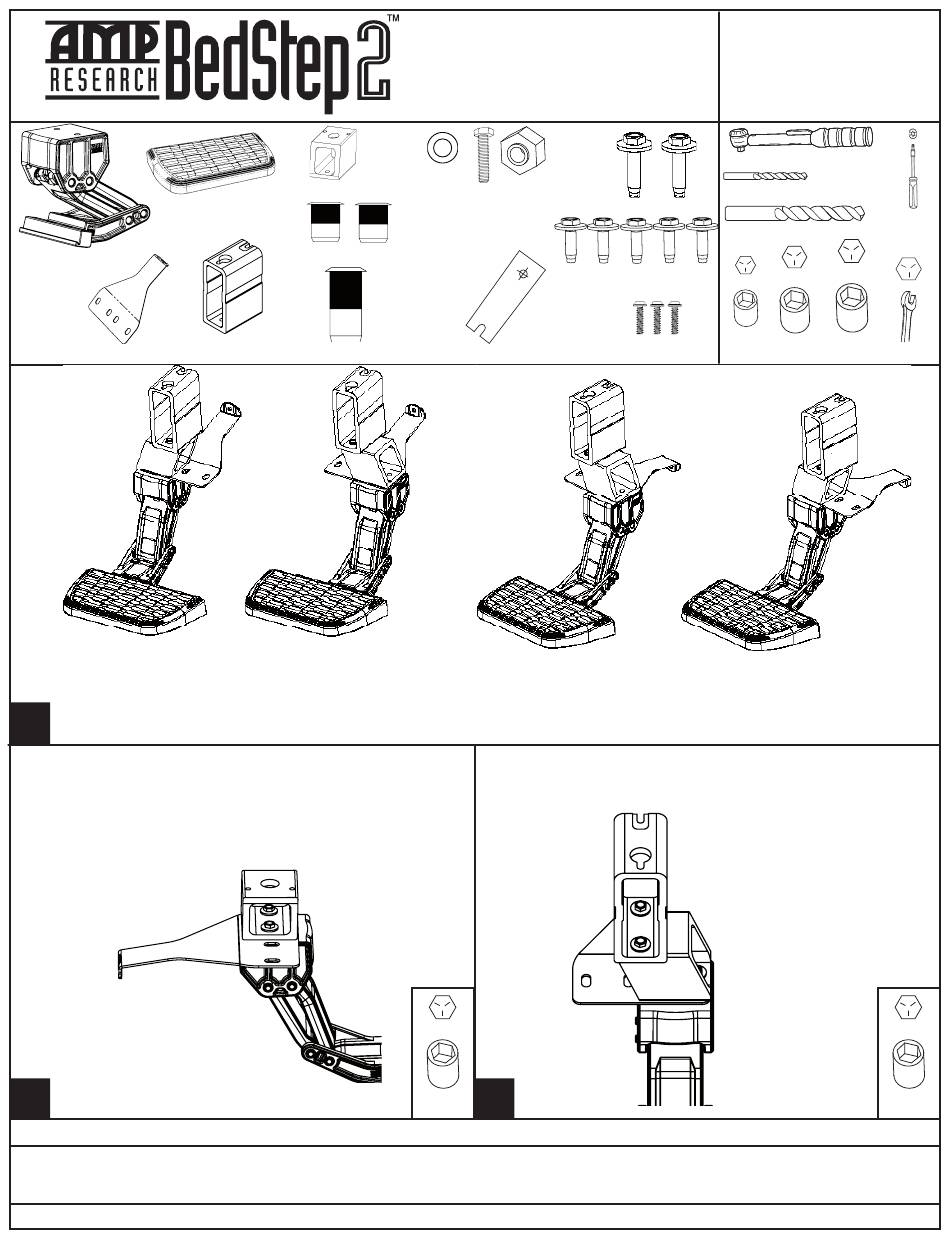

Using a 15mm Socket assemble Lateral Mount onto Link-
age Assembly with M10 Washered Hex Bolts. Steel Frame
Bracket is to be assembled between Linkage Assembly
and Lateral Mount. Do not tighten bolts yet. Dirver's side
configuration shown below... see Step 1 for passenger side
configuation.
2
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST
BedStep2™ is invented, designed, engineeried and manufactured exclusively by AMP Research and may be covered by one of the following patents:
6,641,158; 6,830,257; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975. Made in USA © 2011 AMP Research
Three-year limited warranty. Professional installation is recommended.
www.amp-research.com
15-03840-90
19-03905-90
15-03833-90
19-03945-90
Passenger side Configuration
all 5.5' Bed Lenghts
Chevy Silverado / GMC Sierra
1500
2014 (all Beds)
2500/3500 2015 (all Beds)
80-03205-90
19-03900-90
19-03947-90
Drivers side Configuration
all 6.5' & 8' Bed Lenghts
Using a 13mm Socket assemble Frame Mount onto Lateral
Mount with M8 Washered Hex Bolts. Torque bolts to 16 ft-
lbs.
3
15mm
/4
PART NUMBER:
75407-01A
Torque wrench
1/4" Drill Bit
19-03901-90
17/32" Drill Bit
11-03639-90
13 mm
15 mm
Passenger side Configuration
all 6.5' & 8' Bed Lenghts
IM75407 rev 07.0.4
T25
18 mm
19mm
13mm
