APPLICATION
Ford Super Duty
1
2
3

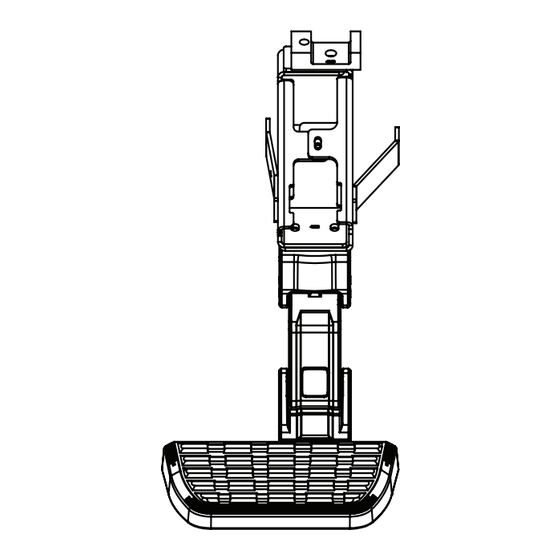

Brackets must be configured for Passenger or Driver-Side as shown below:
1
REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST
Designed and manufactured by AMP Research
Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/
Professional installation is recommended.
www.realtruck.com
(Fits all beds/Cabs)
8
4
9
5
10
6
7
11
Driver-Side
Orientation
• Made in Mexico © 2024 AMP Research • Three-year limited warranty.
®
MODEL YEAR
2017 - 2022
12
13
T25 Torx
14
13mm torque
15
16
Passenger-Side
Orientation
1/5
PART NUMBER
75413-01A
Torque wrench
13mm Box
Wrench
11/32" Drill Bit
Swivel Joint
extension
10" Extension
13, 15, 22mm 7/8"
3" Extension
IM75413 rev 04.30.24
1/8" Drill Bit
Advertisement
Related Manuals for AMP Research BedStep2 75413-01A
Summary of Contents for AMP Research BedStep2 75413-01A
- Page 1 REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST Designed and manufactured by AMP Research • Made in Mexico © 2024 AMP Research • Three-year limited warranty. ® Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/ Professional installation is recommended.
- Page 2 Assemble bracket as shown in the next three steps. Note: Driver side shown. Rotate frame spacer 180° for passenger side. (See image in step 1 for passenger orientation). Torque bolts to 16 Ft-lbs. A. Install brackets (3 Torque bolts 13 & 15mm &...
- Page 3 Offset the step pad to the rear position of the lower linkage assembly and secure using provided PT Screws (13). Tighten to 5 Ft-lbs using T25 Torx bit. Adjust step pad to be in line with fender . T25 Torx Verify that step pad (2) is parallel to the bottom of the body line.
- Page 4 Install forward support bracket (5) using supplied M8 hardware (8) bolts and (9) nuts. Torque bolts to 16 Ft-lbs. 13mm Torque wrench 13mm Box Wrench 13mm torque extension Attach rearward support bracket (6) using supplied M8 hardware (8) Bolts and (9) Nuts.
- Page 5 Install rearward support bracket (6) using supplied M8 Hardware(8) Bolts and (9) Nuts. Torque to 16 Ft-lbs. To deploy the step, press down using your foot on the outside edge of the step pad. To retract, gently kick up on the underside of the step www.realtruck.com IM75413 rev 04.30.24...
- Page 6 AMERICAN DESIGNED & ENGINEERED Thank you for your recent Realtruck Purchase. REGISTER YOUR PRODUCT TODAY FOR FASTER SERVICE & PRODUCT UPDATES Please visit: https://realtruck.com/warranty-registration/ or scan the QR Code Product Registration Benefits: • Ensure we have your purchase receipt and product info in our system which is required for warranty.
- Page 7 ® Here’s what you should know... OPERATION The AMP Research BedStep is foot operated and deploys and retracts with a nudge of your foot. ® To deploy, press down using your left foot, on the forward outside corner of the step pad.
