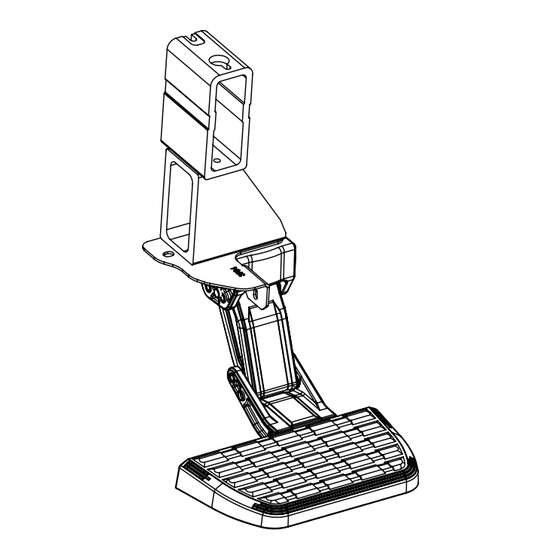

AMP Research BedStep2 REALTRUCK 75411-01A Manual

AMP Research BedStep2 REALTRUCK 75411-01A Manual

Dodge ram ds 2500 / 3500 2014 - 2018

Advertisement

Quick Links

APPLICATION
Dodge Ram DS 2500 / 3500
3500 - Excludes all duallys
1
6
7
For 6.5' bed length components must be configured for Passenger or Drivers-Side as shown.
Driver-Side
Orientation
For 8' bed length components must be configured for Passenger or Drivers-Side as shown.
1
REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST
Designed and manufactured by AMP Research
Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/
© 2024 AMP Research • Three-year limited warranty. • Professional installation is recommended.
www.realtruck.com
2
3
10
9
8
Driver-Side
Orientation
• Made in Mexico
®
MODEL YEAR
2014 - 2018
4
12
11
1/4
PART NUMBER
75411-01A
5
Torque wrench
1/4" Drill Bit
3/8" Drill Bit
13
Align this edge up to vertical reinforcement
plate on edge of bed channel
.
Approx 4.10"
13 mm 15 mm
Passenger-Side
Orientation
Passenger-Side
Orientation
IM75411 rev 04.09.24
T25

Advertisement

loading
Need help?

Need help?

Do you have a question about the BedStep2 REALTRUCK 75411-01A and is the answer not in the manual?

Questions and answers

Summary of Contents for AMP Research BedStep2 REALTRUCK 75411-01A

  • Page 1 REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST Designed and manufactured by AMP Research • Made in Mexico ® Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/ © 2024 AMP Research • Three-year limited warranty. • Professional installation is recommended. www.realtruck.com IM75411 rev 04.09.24...
  • Page 2 Use supplied drill template and mark holes in Center Template on bed channel front bed channel mount. Pre drill holes using and align edge up to vertical reinforcement plate on edge of 1/4” drill bit. Next drill hole to 3/8”. bed channel.
  • Page 3 Set bolts into lower lateral mount. Set bracket into Using a 13mm Socket with extension, slide link- place and use provided hardware to bolt bracket age assembly into slots in frame mount. Torque to inner bed brace. to 16ft-lbs. 13mm Set linkage into position, tighten bolts using Tighten bracket bolt with 13mm socket and 15mm Socket.
  • Page 4 To retract, gently kick up on the underside of the step To deploy the step, press down using your foot on pad. the outside edge of the step pad. www.realtruck.com IM75411 rev 04.09.24...
  • Page 5 AMERICAN DESIGNED & ENGINEERED Thank you for your recent Realtruck Purchase. REGISTER YOUR PRODUCT TODAY FOR FASTER SERVICE & PRODUCT UPDATES Please visit: https://realtruck.com/warranty-registration/ or scan the QR Code Product Registration Benefits: • Ensure we have your purchase receipt and product info in our system which is required for warranty.
  • Page 6 ® Here’s what you should know... OPERATION  The AMP Research BedStep is foot operated and deploys and retracts with a nudge of your foot. ®  To deploy, press down using your left foot, on the forward outside corner of the step pad.
