APPLICATION
Chevy Silverado / GMC Sierra
Chevy Silverado / GMC Sierra
2
1
8
7

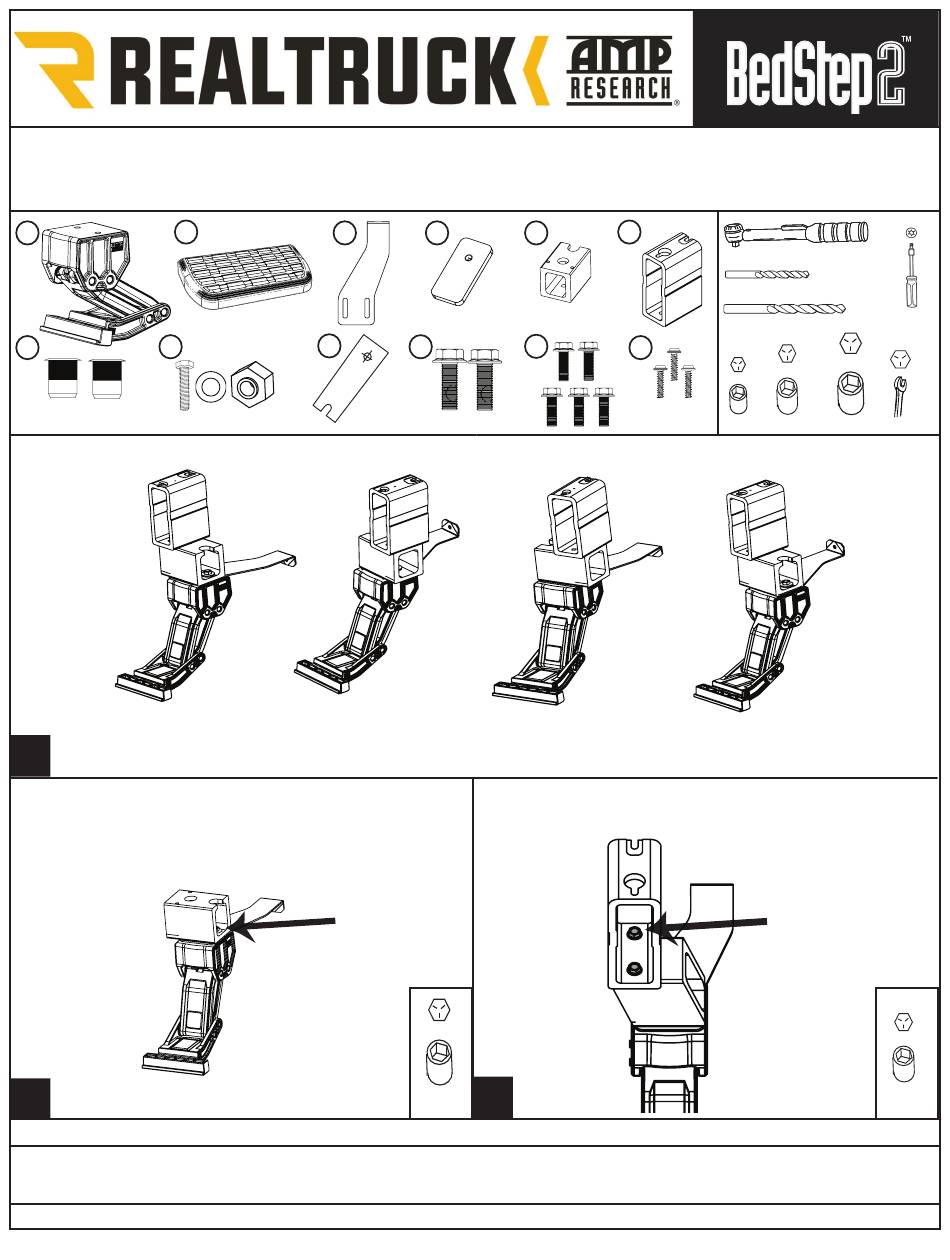

Brackets must be configured as shown. Note: Driver Side shown, Mirror for Passenger side.
Driver side configuration for:
HD 2500/3500 with 6.5 & 8' Bed Lengths
1
1500 with 8' & 6.5' Bed Lengths
Note: On 1500 Models with 5.5' bed lengths aftermarket fender flares may contact step pad.
Using a 15mm Socket assemble Lateral mount onto Linkage
assembly. Steel bracket is to be assembled between linkage and
lateral mount. Do not tighten bolts yet. See step 1 for bracket
orientation based on chassis and bed length.
2
NOTE: DRIVER SIDE SHOWN. MIRROR FOR
PASSENGER SIDE.
REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST
Designed and manufactured by AMP Research
Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/
© 2024 AMP Research • Three-year limited warranty. • Professional installation is recommended.
www.realtruck.com
MODEL YEAR
1500
1999 - 2013
2500/3500
1999 - 2014
3
4
9
10
Passenger side configuration for:
Driver side configuration for:
HD 2500/3500 with 6.5 & 8' Bed Lengths
1500 with 5.5' Bed Length
1500 with 8' & 6.5' Bed Lengths
15mm
• Made in Mexico
®
1/4
(Does not fit stepside beds)
(Does not fit stepside beds)
6
5
11
12
Using a 13mm Socket assemble Frame mount onto Lateral mount.
Torque bolts to 16 ft-lbs.
3
PART NUMBER
75400-01A
75400-01A
Torque wrench
1/4" Drill Bit
17/32" Drill Bit
13 mm
18 mm
15 mm
Passenger side configuration for:
1500 with 5.5' Bed Length
IM75400 rev 04.09.24
T25
19mm
13mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AMP Research BedStep2 REALTRUCK 75400-01A
Summary of Contents for AMP Research BedStep2 REALTRUCK 75400-01A
- Page 1 REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST Designed and manufactured by AMP Research • Made in Mexico ® Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/ © 2024 AMP Research • Three-year limited warranty. • Professional installation is recommended. www.realtruck.com IM75400 rev 04.09.24...
- Page 2 On 2011 and newer HD model trucks remove 8mm bolt from bed channel. Using supplied template mark the hole for the inner bolt on the front bed channel. On older model trucks line template up to bed channel edge and mark both hole locations.
- Page 3 Remove Linkage assembly and center punch hole. Pre drill hole using a 1/4” Drill bit. Next drill hole to 17/32”. WARNING: Fuel tank on back side of frame rail. Do NOT drill through second wall of boxed frame rail. With Rivet Nut Tool held in place with 19mm wrench, Assemble linkage into place and tighten with 13mm tighten Hex Bolt until Rivet Nut deforms and secures itself socket (Torque to 16 ft-lbs).
- Page 4 To deploy the step, press down using your foot on the To retract, gently kick up on the underside of the step pad. outside edge of the step pad. www.realtruck.com IM75400 rev 04.09.24...
- Page 5 AMERICAN DESIGNED & ENGINEERED Thank you for your recent Realtruck Purchase. REGISTER YOUR PRODUCT TODAY FOR FASTER SERVICE & PRODUCT UPDATES Please visit: https://realtruck.com/warranty-registration/ or scan the QR Code Product Registration Benefits: • Ensure we have your purchase receipt and product info in our system which is required for warranty.
- Page 6 ® Here’s what you should know... OPERATION The AMP Research BedStep is foot operated and deploys and retracts with a nudge of your foot. ® To deploy, press down using your left foot, on the forward outside corner of the step pad.
