  • Page 1 USER USER RES-3000 Manual Manual 8th Gen Intel ® Core ™ i7/i5/i3 SoC IP67 Rugged Embedded System High Performance, Fanless -30°C to 70°C Extended Temperature 1.0.0 Edition 20200204...
  • Page 2 Record of Revision Version Date Page Description Remark 1.00 2020/02/04 Official Release...
  • Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. It does not represent commitment of Vecow Co., Ltd. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of the product or documentation or any infringements upon the rights of third parties, which may result from such use.
  • Page 4 Order Information Model Name Processor GigE LAN USB 2.0 ® RES-3000-8665U Intel Core™ i7-8665UE ® RES-3000-8365U Intel Core™ i5-8365UE ® RES-3000-8145U Intel Core™ i3-8145UE ® ® RES-3000-4305U Intel Celeron 4305UE Order Accessories Part Number Description DDR4 32G Certified DDR4 32GB 2666MHz RAM...

  • Page 5: Table Of Contents

    1.1 Overview 1.2 Features 1.3 Product Specification 1.4 Supported CPU List 1.5 Mechanical Dimensions CHAPTER 2 GETTING TO KNOW YOUR RES-3000 2.1 Packing List 2.2 Front Panel I/O Functions 2.3 Rear Panel I/O and Functions CHAPTER 3 SYSTEM SETUP 3.1 How to Use Your RES-3000 3.2 Mount Your RES-3000...
  • Page 6 APPENDIX A : Watchdog Function APPENDIX B : Software Functions APPENDIX C : RAID Functions APPENDIX D : Power Consumption APPENDIX E : Supported Memory & Storage List...

  • Page 7: Chapter 1 General Introduction

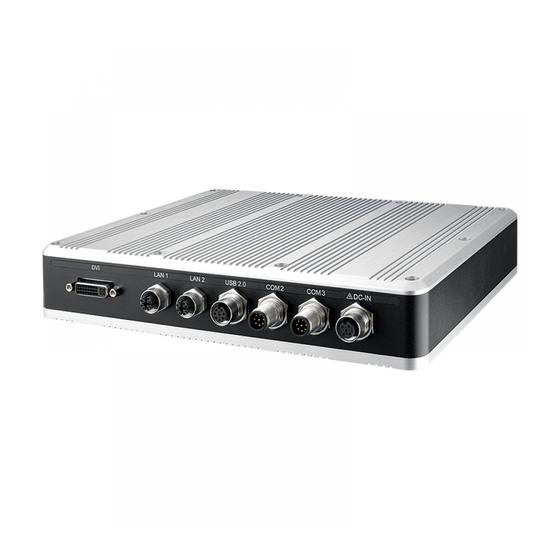

    RES-3000 is an IP67 certified rugged Ultra-compact Fanless Embedded Box ® PC. Powered by 8th generation Intel Core™ i7/i5/i3 processor (Whiskey Lake), DDR4 2400MHz up to 32GB memory, RES-3000 supports up to 40% greater ® productivity than former generation solutions; Advanced Intel UHD Graphics 620 graphics engine supports DirectX 12, OpenGL 4.5 and OpenCL 2.1 API;...

  • Page 8: Features

    IP67 Waterproof DVI-D Connector, up to 1920 x 1200 @60Hz Storage SATA 1 SATA III (6Gbps) mSATA 1 SATA III (Mini PCIe Type, 6Gbps) Storage Device • 1 mSATA Socket • 1 Internal 2.5" SSD/HDD Bracket (Optional) ©Vecow RES-3000 User Manual GENERAL INTRODUCTION...
  • Page 9 Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 12.0, X-coded M12 Connector ® LAN 2 Intel I210 GigE LAN, X-coded M12 Connector Power Power Input 9V to 48V, DC-in Power Interface A-coded M12 Connector Power Switch IP67 Waterproof Power Button Others Optional Infineon SLB9665 supports TPM 2.0 Watchdog Timer...

  • Page 10: Supported Cpu List

    Up to 4.1 GHz ® Intel Core™ i3-8145UE Up to 3.9 GHz ® ® Intel Celeron 4305UE Up to 2.0 GHz 1.5 Mechanical Dimensions Unit: mm (inch) 296.2 (11.66") 75.0 (2.95") 282.2 (11.11") 250.0 (9.84") A Detail ©Vecow RES-3000 User Manual GENERAL INTRODUCTION...

  • Page 11: Chapter 2 Getting To Know Your Res-3000

    GETTING TO KNOW YOUR RES-3000 2.1 Packing List Item Description RES-3000 Rugged Embedded System Driver/User Manual DVD Wall Mount Kit PHILLIPS F#6-32 screws for wall mount kit M12 to USB cable (2M Length) M12 to DC terminal block cable (2M Length)

  • Page 12: Front Panel I/O Functions

    • Twinkling : Data transferring. 2.3 Rear Panel I/O and Functions In Vecow’s RES-3000, all I/O connectors are located on the Rear panel. Most of the general connections to the computer device, such as DVI-D, M12 jack for LAN,USB2.0,COM port and DC-IN , are placed on the Rear panel.
  • Page 13 Moreover, both of LAN 1 and LAN 2 supports Wake on LAN and Pre-boot functions. The pin-outs of LAN 1 and LAN 2 are listed as follows: Pin No. LAN1 LAN2 LAN0_MDI_1P LAN1_MDI_1P LAN0_MDI_1P LAN1_MDI_1P LAN0_MDI_2N LAN1_MDI_2N LAN0_MDI_2P LAN1_MDI_2P LAN0_MDI_4P LAN1_MDI_4P LAN0_MDI_4N LAN1_MDI_4N LAN0_MDI_3N LAN1_MDI_3N LAN0_MDI_3P LAN1_MDI_3P GETTING TO KNOW YOUR RES-3000...
  • Page 14 The default definition of COM 1 and COM 2 is RS-232, if you want to change to RS-422 or RS-485, you can find the setting in BIOS. The pin-outs of COM2 and COM3 are listed as follows: ©Vecow RES-3000 User Manual GETTING TO KNOW YOUR RES-3000...
  • Page 15 COM 3 DC-IN This system supports 9V to 48V DC power input by M12 DC Cable in the rear side. The pin-outs of DC-IN jack are listed as follows: Pin No. DC-IN Pin No. USB2.0 GETTING TO KNOW YOUR RES-3000...

  • Page 16: Chapter 3 System Setup

    SYSTEM SETUP 3.1 How to Use Your RES-3000 3.1.1 M12 A code/X code Step 1 Remove M12 cover. (Example DC-IN) Step 2 Confirm M12 connector pin defined. ©Vecow RES-3000 User Manual SYSTEM SETUP...
  • Page 17 Step 3 Confirm wire. Step 4 Turn wire connector. Step 5 Locked. STSTEM SETUP...
  • Page 18 3.1.2 DVI Step 1 Remove DVI cover. Step 2 Confirm DVI connector pin defined. Step 3 Confirm wire. ©Vecow RES-3000 User Manual SYSTEM SETUP...
  • Page 19 Step 4 Turn wire connector. Step 5 Locked. STSTEM SETUP...

  • Page 20: Mount Your Res-3000

    3.2 Mount Your RES-3000 3.2.1 Wall Mount Step 1 Fasten four PHILLIPS #6-32 screws. 296.2 (11.66”) 282.2 (11.11”) 250.0 (9.84”) ©Vecow RES-3000 User Manual SYSTEM SETUP...
  • Page 21 3.2.2 VESA Mount (75x75 mm) 75.0 (2.95”) STSTEM SETUP...

  • Page 22: Chapter 4 Bios Setup

    Figure 4-1 : Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown. ©Vecow RES-3000 User Manual BIOS SETUP...

  • Page 23: Main

    4.2 Main Figure 4-2 : BIOS Main Menu The main menu displays BIOS version and system information. There are two options on the main menu, system date and system time. System Date Set the date. Use tab to switch between date elements. System Time Set the time.
  • Page 24 Enabled or Disabled Hyper-Threading Technology. Enable/disable AES (Advanced Encryption Standard) Intel Trusted Execution Technology Enables utilization of additional hardware capabilities provided by Intel Trusted Execution Technology. Changed require a full power cycle to take effect. ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 25 4.3.2 Power & Performance Figure 4-3-2 : Power & Performance 4.3.2.1 CPU - Power Management Control Figure 4-3-2-1 : CPU - Power Management Control Boot performance mode Select the performance state that the BIOS will set starting from reset vector. Intel®...
  • Page 26 MEBx Setup. Note : This option does not disable Manageability Features in FW. AMT Configuration Configure Intel Active Management Technology Parameters. ME Unconfig on RTC Clear Disabling this option will cause ME not be unconfigured on RTC clear. ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 27 4.3.4 Trusted Computing Figure 4-3-4 : Trusted Computing Control the TPM device status and display related information if TPM chip is present. 4.3.5 ACPI Settings Figure 4-3-5 : ACPI Settings Enable Hibernation Enables or disables system ability to hibernate (OS/S4 sleep state). This option may be not effective with some OS.
  • Page 28 Set parameters of serial port 1 (COM1). Serial Port 2 Configuration Set parameters of serial port 2 (COM2). Serial Port 3 Configuration Set parameters of serial port 3 (COM3). Serial Port 4 Configuration Set parameters of serial port 4 (COM4). ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 29 4.3.8 Hardware Monitor Figure 4-3-8 : Hardware Monitor and Settings The IT8786 SIO features an enhanced hardware monitor providing thermal, fan speed, and system voltages’ status monitoring. Smart Fan Support Smart Fan Support. Work with Full Speed if "Smart Fan Support" is Disabled. Smart Fan Mode Default : Using the default smart fan table.
  • Page 30 Legacy Console Redirection Settings Legacy Console Redirection Settings. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console Redirection Enable or Disable. 4.3.10 Intel TXT Information Figure 4-3-10 : Intel TXT Information Display Intel TXT information. ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 31 4.3.11 Acoustic Management Configuration Figure 4-3-11 : Acoustic Management Settings Acoustic Management Configuration Option to enable or disable automatic acoustic management. 4.3.12 PCI Subsystem Settings Figure 4-3-12 : PCI Subsystem Settings Above 4G Decoding Globally Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address Space (Only if System Supports 64 bit PCI Decoding).
  • Page 32 Maximum time the device will take before it properly reports itself to the host controller. 'Auto' uses default value : for a root port it is 100ms, for a hub port the delay is taken from hub descriptor. ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 33 4.3.14 CSM Configuration Figure 4-3-14 : CSM Settings CSM Support Enable/disable CSM support. GateA20 Active UPON REQUEST-GA20 can be disabled using BIOS services. ALWAYS-do not allow disabling GA20; this option is useful when any RT code is executed above 1MB. Option ROM Messages Set display mode for option ROM.
  • Page 34 Support to Enable/disable IPSEC certificate for Ikev. PXE boot wait time Wait time to press EEEEESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. ©Vecow RES-3000 User Manual BIOS SETUP...

  • Page 35: Chipset Functions

    4.4 Chipset Functions Figure 4-4 : BIOS Chipset Menu System Agent (SA) Configuration System Agent (SA) Parameters. PCH-IO Configuration PCH Parameters. LVDS Configuration LVDS Configuration. 4.4.1 System Agent (SA) Configuration Figure 4-4-1 : System Agent Settings VT-d VT-d capability. Above 4GB MMIO BIOS assignment Enable/disable above 4GB MemoryMappedIO BIOS assignment.
  • Page 36 Enable or disable integrated LAN to wake the system. Serial IRQ Mode Configure serial IRQ mode. State After G3 Specify what state to go to when power is re-applied after a power failure (G3 state). ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 37 4.4.2.1 PCI Express Configuration Figure 4-4-2-1 : PCI Express Configuration DMI Link ASPM Control The control of Active State Power Management of the DMI Link. Native PCIE Enable PCI Express Native Support Enable/Disable. This feature is available in vista and beyond Windows OS. PCI Express device settings BIOS options for PCI Express device setting.
  • Page 38 On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device. SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive. ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 39 4.4.2.3 BIOS Security Configuration of PCH-IO Figure 4-4-2-3 : BIOS Security Settings BIOS Lock Enable/disable the PCH BIOS lock enable (BLE bit) feature. 4.4.3 LVDS Configuration Figure 4-4-3 : LVDS Panel Settings The LVDS Configuration option will be present if LVDS panel is connected on system. LCD Panel Type Select LCD Panel Resolution.

  • Page 40: Security

    4.5 Security Figure 4-5 : BIOS Security Menu Administrator Password Set administrator password. User Password Set user password. Secure Boot Secure Boot configuration. ©Vecow RES-3000 User Manual BIOS SETUP...
  • Page 41 4.5.1 HDD Security Configuration Figure 4-5-1 : HDD Security Settings Set User Password Set HDD user password. *** Advisable to power cycle system after setting hard disk passwords ***. Discard or save changes option in setup does not have any impact on HDD when password is set or removed.

  • Page 42: Boot

    Select the keyboard NumLock state. Quiet Boot Enables or disables quiet boot option. Boot Option #x Sets the system boot order. Hard Drive BBS Priorities Set the order of the legacy devices in this group. ©Vecow RES-3000 User Manual BIOS SETUP...

  • Page 43: Save & Exit

    4.7 Save & Exit Figure 4-7 : Save & Exit Menu Save Changes and Exit Exit system setup after saving the changes. Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes.

  • Page 44: Appendix A : Watchdog Function

    APPENDIX A : Watchdog Function A.1 Function Description The RES-3000 offers a watchdog timer. A.2 Software Package Contain Distribution folder include x32 and x64 versions, use batch file for installation. There are included as fallowed : Win7_32.bat : Installation for 32-bit driver Win7_64.bat :...
  • Page 45 A.3 Sample Sample folder include x32 and x64 versions, as shown below : Sample RES3K.exe, as shown below : WDT group : Write button : Set WDT when WDT setup text is valid. Stop button : Cancel WDT and counting. Use after Write button action.

  • Page 46: Appendix B : Software Functions

    FALSE (0) : Fail (Initial error, or setup 0 error, or hardware problem) BOOL CancelWDT () Cancel watchdog timer Return : TRUE (1) : Success; FALSE (0) : Fail (Initial error, or hardware problem) Appendix B ©Vecow RES-3000 User Manual...

  • Page 47: Appendix C : Raid Functions

    APPENDIX C : RAID Functions C.1 SATA Mode for RAID Please select SATA Device to RAID mode on BIOS menu. Advanced → SATA Configuration → SATA Mode Selection C.2 OS Installation The system is featured with three SATA, include two internal SATA, 1 mSATA You can select one of SATA ports for OS installation We used internal SATA for Windows 10 OS installation as an example.
  • Page 48 C.6 To Create RAID Volume on "Rapid Storage Technology" Software The system is featured with three SATA HDD's for RAID volume, so there are two options to choose on this page. Let's take RAID 1 as an example, select "RAID 1". Appendix C ©Vecow RES-3000 User Manual...
  • Page 49 C.7 Disk Management : Partition the Disk After RAID 1 volume created, you can see the figure of SATA device allocation. You will find "Volume_0000" in SATA device at BIOS menu. To start Disk Management tool and select "Initialize Disk". Then add "Logical Device"...
  • Page 50 There is a warning will pop-up to ask you if the disk is not a member of original RAID volume. If you press "Rebuild", it will replace the broken SATA HDD to the last one SATA HDD of RAID volume. Appendix C ©Vecow RES-3000 User Manual...

  • Page 51: Appendix D : Power Consumption

    APPENDIX D : Power Consumption Testing Board RES-3000 8GB * 1 USB-1 (USB 3.0) USB 3.0 Loopback Plug USB-2 (USB 3.0) USB 3.0 Loopback Plug USB-3 (USB 3.0) USB 3.0 Loopback Plug USB-4 (USB 3.0) USB 3.0 Loopback Plug USB-5 (USB 2.0) USB Mouse HP G1K28AA USB-6 (USB 2.0)
  • Page 52 Current Consumption Current Consumption 2.240A 20.16W 4.270A 38.43W 1.678A 20.13W 3.300A 39.60W Core™ i7- 8665UE 0.836A 20.07W 1.645A 39.48W 0.455A 21.85W 0.847A 40.64W ** If more help is needed, please contact Vecow technical support. Appendix D ©Vecow RES-3000 User Manual...
  • Page 53 D.2 Intel® Core™ i5-8365UE 1.60GHz (6M Cache, up to 4.10GHz) Power on and boot to Win 10 (64-bit) Standby Mode idle status CPU Power Sleep Mode usage less 3% Input Current Consumption Current Consumption Current Consumption 0.415A 03.73W 0.485A 04.37W 1.465A 13.19W 0.318A...
  • Page 54 Run 100% CPU Power usage with 2D usage with 3D Input Current Consumption Current Consumption 2.040A 18.36W 3.601A 32.41W 1.578A 18.93W 2.666A 31.99W Core™ i3- 8145UE 0.787A 18.88W 1.348A 32.35W 0.414A 19.86W 0.698A 33.49W Appendix D ©Vecow RES-3000 User Manual...
  • Page 55 APPENDIX E : Supported Memory & Storage List E.1 Test Item Testing Board RES-3000 Memory Test MemTest86 V8.2 BurnIn Test BurnInTest Pro V8.1 (build 1025) Memory Burn-in Flash Remove Channel Sleep Hibernate Reset CPU-Z Test Test BIOS Battery *1(DIMM 1) PASS...
  • Page 56 SSD370 TS64GSSD370 64GB innodisk 3MG2-P DGS25-64GD81BC1QC 64GB Kingston SA400S371120G 120GB Intel SSD E 5400s SSDSC2KR120H6 120GB SATA SSD MEMXPRO M3A MI3MA1212802WN 128GB FORESEE S903S128G 128GB FORESEE S903S256G 256GB LITE-ON K8-L1256 256GB LITE-ON K8-L1512 512GB Appendix E ©Vecow RES-3000 User Manual...
  • Page 57 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2020. All rights reserved.
