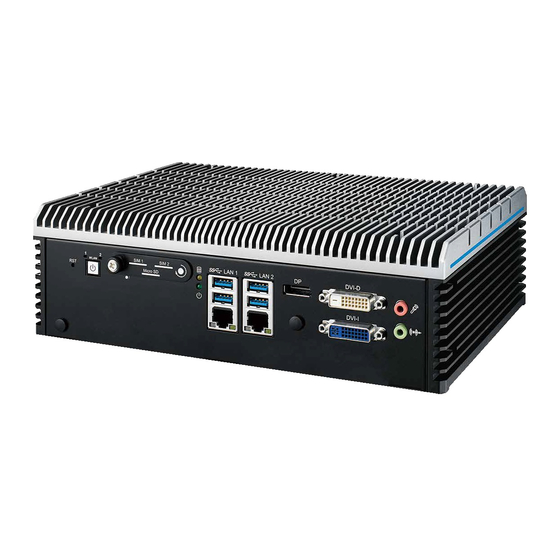

Vecow ECX-2000 Series User Manual

10th gen intel xeon/core i9/i7/i5/i3 fanless embedded system, workstation-grade, 2.5gige lan, 10gige lan, 9v to 50v dc-in
Hide thumbs
Table of Contents

Advertisement

Quick Links

ECX-2000
10th Gen Intel
®
Xeon
Workstation-grade, 2.5GigE LAN, 10GigE LAN, 9V to 50V DC-in
®
/Core
™
i9/i7/i5/i3 Fanless Embedded System
USER
USER
Manual
Manual
1.0.0 Edition 20200925

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECX-2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vecow ECX-2000 Series

Summary of Contents for Vecow ECX-2000 Series

  • Page 1 USER USER ECX-2000 Manual Manual 10th Gen Intel ® Xeon ® /Core ™ i9/i7/i5/i3 Fanless Embedded System Workstation-grade, 2.5GigE LAN, 10GigE LAN, 9V to 50V DC-in 1.0.0 Edition 20200925...
  • Page 2 Record of Revision Version Date Page Description Remark 0.10 2020/09/09 All Preliminary Release 2020/09/17 All Official Release 2020/09/25 P73, 134 Update ©Vecow ECX-2000 User Manual...
  • Page 3 This manual is released by Vecow Co., Ltd. for reference purpose only. All product offerings and specifications are subject to change without prior notice. Vecow Co., Ltd. is under no legal commitment to the details of this document. Vecow shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of this document, the products, or any third party infringements, which may result from such use.
  • Page 4 6 USB 3.2, 16 GPIO, with Fan Sink ECX-2000, 4 GigE LAN, 4 COM, 2 Nano SIM, 6 USB 3.2, ECX-2000-4G 16 GPIO, Fanless ECX-2000, 4 GigE LAN, 4 COM, 2 Nano SIM, 6 USB 3.2, ECX-2000F-4G 16 GPIO, with Fan Sink ©Vecow ECX-2000 User Manual...
  • Page 5 2 Nano SIM, 6 USB 3.2, 16 Isolated DIO, Fanless ECX-2000, 2 10G SFP+, 6 GigE LAN with 4 PoE , 4 COM, ECX-2071F 2 Nano SIM, 6 USB 3.2, 16 Isolated DIO, with Fan Sink ©Vecow ECX-2000 User Manual...
  • Page 6 CPU List Series Cores Cores GHz ECC RAM W-1290E W-1290TE ® Intel W-1270E W-1270TE ® Xeon W-1250E W-1250TE i9-10900E i9-10900TE i7-10700E i7-10700TE ® Intel ™ Core i5-10500E i5-10500TE i3-10100E i3-10100TE ©Vecow ECX-2000 User Manual...
  • Page 7 Terminal Board with One 20-pin Terminal Block Connector and TMB-TMBK-20P DIN-Rail Mounting M.2 Storage Module M.2 Key M/Key B PCIe Storage Module 5G Module 5G Module with Antenna 4G Module 4G/GPS Module with Antenna WiFi & Bluetooth WiFi & Bluetooth Module with Antenna ©Vecow ECX-2000 User Manual...

  • Page 8: Table Of Contents

    1.3.21 Specifications of ECX-2055R 1.3.22 Specifications of ECX-2055FR 1.3.23 Specifications of ECX-2055 1.3.24 Specifications of ECX-2055F 1.3.25 Specifications of ECX-2071R 1.3.26 Specifications of ECX-2071FR 1.3.27 Specifications of ECX-2071 1.3.28 Specifications of ECX-2071F 1.4 Supported CPU List ©Vecow ECX-2000 User Manual viii...
  • Page 9 1.5.24 Dimensions of ECX-2055F 1.5.25 Dimensions of ECX-2071R 1.5.26 Dimensions of ECX-2071FR 1.5.27 Dimensions of ECX-2071 1.5.28 Dimensions of ECX-2071F CHAPTER 2 GETTING TO KNOW YOUR ECX-2000 2.1 Packing List 2.1.1 ECX-2000-PoE/6F/4G/2G/2025/2055/2071 Packing List 2.1.2 ECX-2000-PoER/6FR/4R/2R/2025R/2055R/2071R Packing List 71 ©Vecow ECX-2000 User Manual...
  • Page 10 3.10 Mount Your ECX-2000 CHAPTER 4 BIOS SETUP 4.1 Entering BIOS Setup 4.2 Main 4.3 Advanced 4.4 Chipset 4.5 Security 4.6 Boot 4.7 Save & Exit APPENDIX A : Isolated DIO Guide APPENDIX B : Software Functions ©Vecow ECX-2000 User Manual...
  • Page 11 APPENDIX C : RAID Functions APPENDIX D : Power Consumption APPENDIX E : Supported Memory & Storage List ©Vecow ECX-2000 User Manual...

  • Page 12: Chapter 1 General Introduction

    Intel W480E Chipset and CPU support up to 95W TDP, Vecow ECX-2000 Series reinvents itself from the inside out because it is optimized for modern computer vision applications at the edge including Machine Vision, Factory Automation, Intelligent Vending, Intelligent Transportation System (ITS), Robotic Control, AMR/AVG, Deep Learning, and any Artificial Intelligent oriented AIoT or Industry 4.0 applications.

  • Page 13: Features

    • Optimized user-friendly design for easier system maintenance • Supports multiple Ethernet Configuration options such as : 10G LAN/2.5G LAN/10G SFP+/1G SFP • Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 14: Product Specification

    • 2 Front-access 2.5" SSD/HDD Tray Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 15 Relative Humidity 95% at 70°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 16: Specifications Of Ecx-2025Fr

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 17 Relative Humidity 95% at 70°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 18: Specifications Of Ecx-2025

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 19 Relative Humidity 95% at 70°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 20: Specifications Of Ecx-2025F

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 21 Relative Humidity 95% at 70°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 22: Specifications Of Ecx-2000-Poer

    • 2 Front-access 2.5" SSD/HDD Tray Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 23 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 24: Specifications Of Ecx-2000F-Poer

    Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 25 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 26: Specifications Of Ecx-2000-Poe

    • 2 2.5" SSD/HDD Bracket (Internal) Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 27 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 28: Specifications Of Ecx-2000F-Poe

    • 2 2.5" SSD/HDD Bracket (Internal) Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 29 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 30: Specifications Of Ecx-2000-6Fr

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 31 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 32: Specifications Of Ecx-2000F-6Fr

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 33 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 34: Specifications Of Ecx-2000-6F

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 35 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 36: Specifications Of Ecx-2000F-6F

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 37 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 38: Specifications Of Ecx-2000-4R

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 39 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 40: Specifications Of Ecx-2000F-4R

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 41 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 42: Specifications Of Ecx-2000-4G

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 43 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 44: Specifications Of Ecx-2000F-4G

    1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 Intel I210 GigE LAN ® LAN 4 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 45 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 46: Specifications Of Ecx-2000-2R

    • 2 Front-access 2.5" SSD/HDD Tray Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 47 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 48: Specifications Of Ecx-2000F-2R

    • 2 Front-access 2.5" SSD/HDD Tray Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 49 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 50: Specifications Of Ecx-2000-2G

    • 2 2.5" SSD/HDD Bracket (Internal) Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 51 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 52: Specifications Of Ecx-2000F-2G

    • 2 2.5" SSD/HDD Bracket (Internal) Audio Audio Codec Realtek ALC892, 5.1 Channel HD Audio Audio Interface 1 Mic-in, 1 Line-out Ethernet ® LAN 1 Intel I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 53 Relative Humidity 95% at 75°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 54: Specifications Of Ecx-2055R

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 55 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 56: Specifications Of Ecx-2055Fr

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 57 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 58: Specifications Of Ecx-2055

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 59 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 60: Specifications Of Ecx-2055F

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 61 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 62: Specifications Of Ecx-2071R

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 63 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 64: Specifications Of Ecx-2071Fr

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 65 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 66: Specifications Of Ecx-2071

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 67 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 68: Specifications Of Ecx-2071F

    I219LM GigE LAN supports iAMT 14.0 ® LAN 2 Intel I210 GigE LAN ® LAN 3 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ® LAN 4 GigE IEEE 802.3at (25.5W/48V) PoE by Intel I210 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...
  • Page 69 Relative Humidity 95% at 55°C Shock • IEC 60068-2-27 • SSD : 50G @ wallmount, Half-sine, 11ms Vibration • IEC 60068-2-64 • SSD : 5Grms, 5Hz to 500Hz, 3 Axis CE, FCC, EN50155, EN50121-3-2 ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 70: Supported Cpu List

    Up to 4.7GHz i9-10900TE Up to 4.5GHz i7-10700E Up to 4.5GHz i7-10700TE Up to 4.4GHz ® Intel Core™ i5-10500E Up to 4.2GHz i5-10500TE Up to 3.7GHz i3-10100E Up to 3.8GHz i3-10100TE Up to 3.6GHz ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 71: Mechanical Dimension

    1.5.2 Dimensions of ECX-2025FR 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.3 Dimensions of ECX-2025 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 72: Dimensions Of Ecx-2025F

    1.5.5 Dimensions of ECX-2000-PoER 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.6 Dimensions of ECX-2000F-PoER 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 73: Dimensions Of Ecx-2000-Poe

    1.5.8 Dimensions of ECX-2000F-PoE 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.9 Dimensions of ECX-2000-6FR 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 74: Dimensions Of Ecx-2000F-6Fr

    1.5.11 Dimensions of ECX-2000-6F 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.12 Dimensions of ECX-2000F-6F 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 75: Dimensions Of Ecx-2000-4R

    1.5.14 Dimensions of ECX-2000F-4R 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.15 Dimensions of ECX-2000-4G 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 76: Dimensions Of Ecx-2000F-4G

    1.5.17 Dimensions of ECX-2000-2R 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.18 Dimensions of ECX-2000F-2R 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 77: Dimensions Of Ecx-2000-2G

    1.5.20 Dimensions of ECX-2000F-2G 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.21 Dimensions of ECX-2055R 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 78: Dimensions Of Ecx-2055Fr

    1.5.23 Dimensions of ECX-2055 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.24 Dimensions of ECX-2055F 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 79: Dimensions Of Ecx-2071R

    1.5.26 Dimensions of ECX-2071FR 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail 1.5.27 Dimensions of ECX-2071 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 80: Dimensions Of Ecx-2071F

    1.5.28 Dimensions of ECX-2071F 297.0 (11.69) 282.0 (11.10) Unit : mm (inch) 260.0 (10.24) 5.0 (0.20) A Detail ©Vecow ECX-2000 User Manual GENERAL INTRODUCTION...

  • Page 81: Chapter 2 Getting To Know Your Ecx-2000

    2.1 Packing List 2.1.1 ECX-2000-PoE/6F/4G/2G/2025/2055/2071 Packing List Item Description ECX-2000 Fanless Embedded System (According to the configuration of you order, the ECX-2000 series may contain SSD/HDD and DDR4 SODIMM. Please verify these items if necessary.) Vecow Drivers & Utilities DVD Item...

  • Page 82: Ecx-2000-Poer/6Fr/4R/2R/2025R/2055R/2071R Packing List

    2.1.2 ECX-2000-PoER/6FR/4R/2R/2025R/2055R/2071R Packing List Item Description ECX-2000 Fanless Embedded System (According to the configuration of you order, the ECX-2000 series may contain SSD/HDD and DDR4 SODIMM. Please verify these items if necessary.) Vecow Drivers & Utilities DVD SSD/HDD Tray Key...

  • Page 83: Front Panel I/O Functions

    2.2 Front Panel I/O Functions In Vecow ECX-2000 series family, all I/O connectors are located on front panel and rear panel. Most of the general connections to computer device, such as USB, LAN Jack, Display, DVI-D, Display Port and any additional storage, are placed on the front panel.
  • Page 84 Power LED/Green : If the LED is solid green, it indicates that the system is powered on. LED Color Indication System Status • On/Off : Storage status, function or not. Yellow HDD/M.2 KEY M • Twinkling : Data transferring. Green Power System power status (on/off) ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 85 The VGA output mode supports up to 1920x1200 resolution. If use VGA function will need a DVII to VGA module connecting to DVI-I device. Below is the DVII to VGA module picture of a DVII to VGA module. ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 86 Mini PCIe Slot/M.2 KEY B/M.2 KEY E/Nano SIM Slot/WLAN LED Mapping Table : Mini PCIe MPCIe1 SIM2 SIM 1 SIM 2 WLAN M.2 KEY B SIM1 Micro SD M.2 KEY E ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 87 MPCIE1 M2E_CN1 M2B_CN1 M2B_SIM1 MPCIE_SIM1 M2E_LED1 MPCIE_LED1 Note : The SIM card sockets do not support hot-plug. Please make sure to unplug the system power before inserting the SIM card(s). ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 88 1000Mbps Ethernet network; The left LED will keep twinkling/off when Ethernet data packets are being transmitted/received. LED Location LED Color 10Mbps 100Mbps 1000Mbps Green/ Solid Solid Left Orange Green Orange Twinkling Twinkling Twinkling Right Yellow Yellow Yellow Yellow ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 89 • IEEE 802.3ab Gigabit Ethernet standard compliant • IEEE 1588 Precision Time Protocol (PTP) • Up to 9.7KB Jumbo Frame • Triple independent GigE LAN Connection • Supports Wake-on-LAN (WoL) & PXE ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 90 • Up to 9728 bytes Jumbo Frame, Link Aggregation • Supports Wake-on-LAN (WoL) & PXE ® • Intel Ethernet Power Management ® • Intel Data Direct I/O Technology ® • Intel Virtualization Technology for Connectivity (VT-c) ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 91 • Up to 9728 bytes Jumbo Frame, Link Aggregation • Supports Wake-on-LAN (WoL) & PXE ® • Intel Ethernet Power Management ® • Intel Data Direct I/O Technology • -25°C to 55°C Operating Temperature ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...

  • Page 92: Rear Panel I/O & Functions

    You could turn on or off the system power by using this contact. This terminal block supports dual function of soft power-on/power-off (instant off or delay 4 second), and suspend mode. Pin No. Definition Pin No. Definition Ignition ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 93 SIO_GPO70 OUTPUT 1 SIO_GPO71 OUTPUT 2 SIO_GPO72 OUTPUT 3 SIO_GPO73 OUTPUT 4 SIO_GPO74 OUTPUT 5 SIO_GPO75 OUTPUT 6 SIO_GPO76 OUTPUT 7 SIO_GPO77 DIO_GND ----------- External 6-40VDC (NPN) ----------- External 6-48VDC (PNP) ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 94 DO Signal circuit in SINK mode (NPN) Source (PNP) DIO_VDC (20) LOAD 7.2K ISOLATION 6-40V (11) (300mA) 1.5K GNDI GNDO GNDO (10.19) Internal Circuit External Device GNDO DO Signal circuit in source mode (PNp) ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 95 There are 2 USB 3.0 connections available supporting up to 10GB per second data rate in the rear side of ECX-2000. It also compliant with the requirements of Super Speed (SS), high speed (HS), full speed (FS) and low speed (LS). ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 96 Port (5-wire) (9-wire) (3-wire) TXD- TXD- DATA- TXD+ TXD+ DATA+ RXD+ RXD+ ----------- RXD- RXD- ----------- 1 to 4 ----------- RTS- ----------- ----------- RTS+ ----------- ----------- CTS+ ----------- ----------- CTS- ----------- ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 97 100Mbps 1000Mbps Green/ Solid Solid Right Yellow Green Yellow Twinkling Twinkling Twinkling Left Green Green Green Green POE LED LED Color POE Status LED 3 - 6 Solid Green POE ON ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...

  • Page 98: Main Board Expansion Connectors

    JRI_PWR2 JRI_PWR1 SATA1 HDD_PWR_J1 HDD_PWR_J2 SATA2 JSMB1 JI2C1 JPOE_PWR1 JUSBPWR1 JDEBUG1 MPCIE1 JDIO2 JDIO1 SODIMM_1 JCMOS1 JBAT1 SODIMM_2 SUMITB1 SYS_FAN2 M2B_CN1 M2E_CN1 BIOS JHDA_SDO1 SUMITA1 CN_DP1 M2M_CN1 JIGNMODE1 CN_LAN2 CN_LAN1 SYS_LED1 ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 99 The pin-outs of Miscellaneous port are listed in following table : Group Pin No. Description HDD_LED_P HDD LED HDD_LED_N FP_RST_BTN_N RESET BUTTON Ground PWR_LED_P POWER LED PWR_LED_N FP_PWR_BTN_IN POWER BUTTON Ground ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 100 5V (Up to 2A) and 12V (Up to 1A) current to the hard drive or SSD. The pin assignments of HDD_PWR_J1 are listed in the following table : HDD_PWR_J2 HDD_PWR_J1 Pin No. Definition Pin No. Definition +12V ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 101 2.4.7 SODIMM_1, SODIMM_2 : DDR4 Slot There are 2 DDR4 channel onboard, support DDR4 2933, max 64GB Each channel 32GB. SODIMM_1 SODIMM_2 Slot Description SODIMM_1 DDR4 Channel A SODIMM_2 DDR4 Channel B ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 102 2.4.8 CN9 : BIOS Socket If the BIOS needs to be changed, please contact the Vecow RMA service team. 2.4.9 SUMIT A, SUMIT B This system have standard SUMIT A and SUMIT B for SUMIT type add-on cards. SUMITB1 SUMITA1 SUMIT A Pin Out : Pin No.
  • Page 103 B_PER_N0 C_CLKP B_CLKP C_CLKN B_CLKN CPRSNT#/C_PE_CLKREQ# C_PET_P0 C_PER_P0 C_PET_N0 C_PER_N0 C_PET_P1 C_PER_P1 C_PET_N1 C_PER_N1 C_PET_P2 C_PER_P2 C_PET_N2 C_PER_N2 C_PET_P3 C_PER_P3 C_PET_N3 C_PER_N3 PERST# WAKE# Reserved Reserved Reserved +3.3V +3.3V +3.3V +5V_AUX ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 104 Reserved +3.3Vaux USB_D+ USB_D- PETp0 PETn0 SMB_DATA SMB_CLK +1.5V PERp0 PERn0 +3.3Vaux PERST# Reserved reserved Reserved Mechanical Key UIM_VPP REFCLK+ UIM_RESET REFCLK- UIM_CLK UIM_DATA CLKREQ# UIM_PWR Reserved 1.5V Reserved WAKE# 3.3Vaux ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 105 The system's real-time clock is powered by a lithium battery. It is Equipped with Panasonic CR2032 190mAh lithium battery. It is recommended that you not replace the lithium battery on your own. If the battery needs to be changed, please contact the Vecow RMA service team. BAT1 Pin No.
  • Page 106 2.4.13 JDEBUG1 : LPC Port 80 Header The system's provide a LPC Port 80 Header for Debug Card. JDEBUG1 Pin No. Definition Pin No. Definition +3.3V SERIRQ LAD0 LAD1 LAD2 LAD3 FRAME# 24M_CLK PLTRST# ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 107 JDIO1 JDIO1 (8bit-in) : JDIO2 (8bit-out) : Pin No. Description Pin No. Description GPI_0 GPO_0 GPI_1 GPO_1 GPI_2 GPO_2 GPI_3 GPO_3 GPI_4 GPO_4 GPI_5 GPO_5 GPI_6 GPO_6 GPI_7 GPO_7 +V3.3_AUX +V3.3_AUX ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 108 CNVI_WT_D0_P CNVI_WT_D0_N M2E_REFCLK SMB_ALERT# CNVI_WT_D1_P SMB_CLK CNVI_WT_D1_N SMB_DATA M2E_WLAN_DISABLE PCIE_WAKE# M2E_BT_DISABLE PCIE_CLK_REQ0# PLTRST# SUS_CLK PCIE_100M_CLK__N CNVI_MFUART2_RXD PCIE_100M_CLK__P CNVI_MFUART2_TXD CNVI_BLANKING PCIE_RX_N CL_CLK PCIE_RX_P CL_DATA CL_RST_N PCIE_TX_N CNVI_BRI_DT PCIE_TX_P CNVI_RGI_RSP CNVI_RGI_DT Mechanical Key ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 109 2280. M2M_CN1 Pin No. Signal Name Pin No. Signal Name 3.3V 3.3V 3.3V SCUSCLK (3.2KHz)(O)(0/3.3V) PEDET (NC-PCIe/GND-SATA) Connector Key Connector Key Connector Key Connector Key Connector Key Connector Key Connector Key ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 110 PERST# (I/O)(O)(0/3.3V) or N/ PETp0/SATA-A+ PETn0/SATA-A- PERp0/SATA-B- PERp0/SATA-B+ DEVSLP (O) PETp1 PETn1 PERp1 PERn1 PETp2 PETn2 3.3V PERp2 3.3V PERn2 3.3V 3.3V PETp3 DAS/DDS# (I/O)/LED1# (I) PETn3 (0/3.3V) PERp3 3.3V PERn3 3.3V ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 111 2.4.17 M.2 KEY B : USB 3.0/USB 2.0 Support (default), PCIex2 (BIOS option) Module card types include 3042,3052. M2M_CN1 Pin No. Signal Name Pin No. Signal Name +V3.3_AUX +V3.3_AUX +V3.3_AUX SIM_DETECT PCIE_100M_CLK_P PCIE_WAKE# PCIE_100M_CLK_N PCIE_CLK_REQ PLTRST# (default) USB_TX_1P, PCIe_TX_1P ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 112 (default) USB_RX_1P, PCIe_RX_1P (default) USB_RX_1N, PCIe_RX_1N DEVSLP (default) USB_TX_2P, UIM_PWR PCIe_TX_2P (default) USB_TX_2N, UIM_DATA PCIe_TX_2N UIM_CLK (default) USB_RX_2P, UIM_RESET PCIe_RX_2P (default) USB_RX_2N, PCIe_RX_2N Mechanical Key USB- LED1# USB+ W_DISABLE# FULL_CARD_PWR_OFF +V3.3_AUX +V3.3_AUX ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 113 2.4.18 JSMB1 : MBUS Header JSMB1 Pin No. Function SMB_CLK SMB_DAT 2.4.19 JI2C1 : I2C Header JI2C1 Pin No. Function I2C_CLK I2C_DAT ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...

  • Page 114: Main Board Jumper Settings

    You may configure your card to match the needs of your application by DIP switch. As below show the deep switch on and off. 1 : OFF 1 : ON 1 : ON 2 : OFF 2 : OFF 2 : ON ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 115 PIN 11 ~ 18 COM 4 COM 2 LAN 5 LAN 3 LAN 6 LAN 4 On / Off Jumper Setting Function JSBPWR1 Non Wake Up support JSBPWR1 Supported Wake Up (Default) ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 116 2.5.4 JPOE_PWR1 : PoE Power ON Select JPOE_PWR1 Setting Function 1 - 2 PoE power on at standby power ready 2 - 3 PoE power on after system power on (Default) No Jumper Disable PoE power ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 117 Enable security measures defined in the Flash Descriptor. (Default) 2 - 3 Disable Flash Descriptor Security (Flash ME) 2.5.6 JIGNMODE1 : IGNITION Mode JIGNMODE1 Setting Function 1 - 2 H/W mode 2 - 3 S/W mode (default) ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...

  • Page 118: Ignition Control

    2.6.1 Adjust Ignition Control Modes ECX-2000 series provides 16 modes of different power on/off delay periods adjustable via SW1 switch. The default rotary switch is set to 0 in ATX/AT power mode. SW1 : Ignition Control ©Vecow ECX-2000 User Manual...
  • Page 119 5 seconds 60 seconds 5 seconds 90 seconds 5 seconds 120 seconds 10 seconds 10 seconds 10 seconds 30 seconds 10 seconds 60 seconds 10 seconds 90 seconds 10 seconds 120 seconds ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...
  • Page 120 3. For proper ignition control, the power button setting should be "Power Down" mode. In Windows for example, you need to set "When I press the power button" to Shut down. ©Vecow ECX-2000 User Manual GETTING TO KNOW YOUR ECX-2000...

  • Page 121: Chapter 3 System Setup

    SYSTEM SETUP 3.1 How to Open Your ECX-2000 3.1.1 ECX-2025FR/ECX-2025F/ECX-2000F-PoER/ECX-2000F-PoE/ ECX-2000F-6FR/ECX-2000F-6F/ECX-2000F-4R/ECX-2000F-4G/ ECX-2000F-2R/ECX-2000F-2G/ECX-2055FR/ECX-2055F/ ECX-2071FR/ECX-2071F Step 1 Remove four flat head M3x5L screws and take out cover fan. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 122 Step 2 Remove plug fan. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 123 Step 3 Remove six flat head M3x5L screws and take out cooler. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 124 3.1.2 ECX-2025R/ECX-2025/ECX-2000-PoER/ECX-2000-PoE/ ECX-2000-6FR/ECX-2000-6F/ECX-2000-4R/ECX-2000-4G/ ECX-2000-2R/ECX-2000-2G/ECX-2055R/ECX-2055/ ECX-2071R/ECX-2071 Step 1 Remove six Flat head M3x5L screws and Take out Heat Sink. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 125: Installing Cpu

    3.2 Installing CPU Step 1 Open CPU Independent Loading Mechanism (ILM) Step 2 Install CPU. (Be careful CPU pin) ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 126 Step 3 Remove the mylar. Step 4 Close CPU Independent Loading Mechanism (ILM) and finish. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 127: Installing Ddr4 So-Dimm Modules

    3.3 Installing DDR4 SO-DIMM Modules Step 1 Remove three flat head M3x5L screws. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 128 Step 2 Open Cover_Bottom. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 129 Step 3 Install DDR4 RAM module into SO-DIMM socket. Step 4 Install DDR4 RAM module into SO-DIMM socket. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 130: Installing Mini Pcie Card

    3.4 Installing Mini PCIe Card Step 1 Remove three flat head M3x5L screws. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 131 Step 2 Open cover bottom. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 132 Step 3 Install mini PCIe card into slot. Step 4 Fasten one PHILLPIS M2.5 screw. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 133: Installing Nano Sim Card

    3.5 Installing Nano SIM Card Step 1 Release captive panel screw. Step 2 Rotate cover card ard and open. Step 3 Insert Nano SIM card and push to lock. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 134: Installing Micro Sd Card

    3.6 Installing Micro SD Card Step 1 Release captive panel screw. Step 2 Rotate cover card ard and open. Step 3 Insert Micro SD card and push to lock. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 135: Installing Ssd/Hdd

    3.7 Installing SSD/HDD 3.7.1 ECS-2000-R series Step 1 Use the trigger and open SSD/HDD tray. Step 2 Open front door of SSD/HDD tray. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 136 Step 3 Install 2.5" SSD/HDD into the tray and close. Step 4 Lock the SSD/HDD tray with key. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 137 3.7.2 ECS-2000 series Step 1 Remove three flat head M3x5L screws. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 138 Step 2 Open cover bottom. Step 3 Remove eight Hexagon M3 Nuts. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 139 Step 4 Install SSD/HDD & SATA 22P cable into bracket SSD/HDD. Step 5 Use four flat head M3x5L screws and fasten SSD/HDD. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 140 Step 6 Use eight Hexagon M3 Nuts and fasten bracket SSD/HDD ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 141: Installing

    3.8 Installing M.2 Step 1 Remove three flat head M3x5L screws. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 142 Step 2 Open Cover_Bottom. Step 3 Remove four flat head M3x5L screws and release captive panel screw. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 143 Step 4 Remove cover front. Step 5 Remove four pan head M3x6L screws and take out SUMIT Industry Standard Module. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 144 Step 6 The position of M.2 (NGFF) connector. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 145 Install M.2 into slot and fasten one pan head M3 screw. For Key B 3052, remove the Key B 3042 hex M3 standoff before installation. Key B 3042 Install M.2 into slot and fasten one pan head M2 screw. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 146: Installing Antenna Cable

    3.9 Installing Antenna Cable Step 1 Check antenna cable and washer. Step 2 Remove three flat head M3x5L screws. ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 147 Step 3 Remove hole plug. Step 4 Install SMA cable and fasten washer and nut. ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 148: Mount Your Ecx-2000

    3.10 Mount Your ECX-2000 3.10.1 Wall Mount Fasten six flat head M3x5L screws. 3.10.2 VESA Mount Fasten six flat head M3x5L screws VESA 75 x 75/100 x 100 mm ©Vecow ECX-2000 User Manual SYSTEM SETUP...
  • Page 149 3.10.3 DIN Rail Mount Fasten fourteen flat head M3x5L screws. 3.10.4 2U Rack Mount ©Vecow ECX-2000 User Manual SYSTEM SETUP...

  • Page 150: Chapter 4 Bios Setup

    Figure 4-1 : Entering Setup Screen BIOS provides an interface for users to check and change system configuration. The BIOS setup program is accessed by pressing the <Del> key when POST display output is shown. ©Vecow ECX-2000 User Manual BIOS SETUP...

  • Page 151: Main

    Set the time. Use <Tab> to switch between time elements. 4.3 Advanced Figure 4-3 : BIOS Advanced Menu Select advanced tab to enter advanced BIOS setup options, such as CPU configuration, SATA configuration, and USB configuration. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 152 Technology). When disabled only one thread per core is enabled. Enable/disable CPU Advanced Encryption Standard instructions. Intel Trusted Execution Technology ® Enables utilization of additional hardware capabilities provided by Intel Trusted Execution Technology. Changes require a full power cycle to take effect. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 153 Enable/disable C1E. When enabled, CPU will switch to minimum speed when all cores enter C-State. Dual Tau Boost Enable Dual Tau Boost feature. This is only applicable for CML-S 35W/65W/125W sku. When DPTF is enabled, this feature is ignored. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 154 When disabled AMT BIOS Features are no longer supported and user is no longer able to access MEBx Setup. AMT Configuration ® Configure Intel Active Management Technology Parameters. ME Unconfig on RTC Clear State Disabling this option will cause ME not to unconfigure on RTC clear. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 155 Enables or disables S3 video repost. 4.3.6 SMART Settings Figure 4-3-6 : SMART Settings SMART Self Test Run SMART self test on all HDDs during POST. 4.3.7 IT8786 Super IO Configuration Figure 4-3-7 : IT8786 Super IO Settings ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 156 Temperature Limit value of Fan Start (Degree C). (Range : 10~80) PWM Start Value (%) Default PWM Value of Fan. (Range : 15%~100%) Full Speed Temperature Temperature Limit value of Fan Full Speed (Degree C).. (Range : 50~90) ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 157 Legacy Console Redirection Legacy Console Redirection Settings. Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) Console redirection enable or disable. 4.3.10 Intel TXT Information Figure 4-3-10 : Intel TXT Information Display Intel TXT information. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 158 Globally Enables or Disables Hot-Plug support for the entire System. If system has Hot-Plug Capable Slots and this option set to Enabled, it provides a Setup screen for selecting PCI resource padding for Hot-Plug. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 159 IP6 Configuration Policy Set IP6 Configuration Policy. PXE boot wait time Wait time to press ESC key to abort the PXE boot. Media detect count Number of times presence of media will be checked. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 160 Controls the execution of UEFI and Legacy Storage OpROM. Video Allows more than two frequency ranges to be supported. Other PCI devices Determines OpROM execution policy for devices other than network, storage, or video. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 161 Maximum time the device will take before it properly reports itself to the Host Controller. 'Auto' uses default value, for a root port it is 100 ms, for a hub port the delay is taken from the hub descriptor. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 162 This should be enabled only if both WWAN and WLAN solutions are based on Intel components Discrete Bluetooth Module SerialIo UART0 needs to be enabled to select BT Module Advanced settings Configure ACPI objects for wireless devices WWAN Configuration Configure WWAN related options ©Vecow ECX-2000 User Manual BIOS SETUP...

  • Page 163: Chipset

    4.4.1 System Agent (SA) Configuration Figure 4-4-1 : System Agent Settings VT-d VT-d capability. Above 4GB MMIO BIOS assignment Enable/disable above 4GB MemoryMappedIO BIOS assignment. This is disabled automatically when aperture size is set to 2048MB. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 164 2048MB aperture. To use this feature, please disable CSM Support. DVMT Pre-Allocated Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device. DVMT Total Gfx Mem Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 165 Specify what state to go to when power is re-applied after a power failure (G3 state). S0 State : Always turn-on the system when power source plugged-in. S5 State : Always turn-off the system when power source plugged-in. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 166 Enable/Disable the control of Active State Power Management on SA side of the DMI Link. Native PCIE Enable PCIE Express Native Support Enable/Disable. PCI Express device settings Bios options for PCI Express device setting. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 167 On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device. SATA Device Type Identifies that the SATA port is connected to solid state drive or hard disk drive. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 168 [Normal] System power on by power button [Ignition] System power on by ignition pin Delay On Timer (Second) The delay times after user trigger ignition on signal Delay Off Timer (Second) The delay times after user trigger ignition off signal ©Vecow ECX-2000 User Manual BIOS SETUP...

  • Page 169: Security

    Voltage Guard Higher limit value Voltage Guard Higher limit value setting range : 15V~55V 4.5 Security Figure 4-5 : BIOS Security Menu Administrator Password Set administrator password. User Password Set user password. Secure Boot Customizable Secure Boot Settings. ©Vecow ECX-2000 User Manual BIOS SETUP...
  • Page 170 User/Deployed, and CSM function is disabled. Secure Boot Mode Secure Boot mode selector Standard/Custom. In custom mode Secure Boot Variables can be configured without authentication Key Management Enables expert users to modify Secure boot policy variables without full authentication ©Vecow ECX-2000 User Manual BIOS SETUP...

  • Page 171: Boot

    Boot Option Sets the system boot order. New Boot Option Policy Controls the placement of newly detected UEFI boot options. Hard Drive BBS Priorities Set the order of the Legacy devices in this group. ©Vecow ECX-2000 User Manual BIOS SETUP...

  • Page 172: Save & Exit

    Restore Defaults Restore/Load Default values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options ©Vecow ECX-2000 User Manual BIOS SETUP...

  • Page 173: Appendix A : Isolated Dio Guide

    POE 1 POE 3 Do NOT use these functions in below : 1. PE-2000 : DIO1 (ID = 0), POE 2. PE-3000 : POE (ID = 0) 3. UE-1000 : USB (ID = 0) ©Vecow ECX-2000 User Manual Appendix A...
  • Page 174 DIO Connector (NPN, Default) 6-48V DC DIO_VDC (Pin 20) DO (Pin 11-18) DIO_GND (Pin 10, 19) Source Mode Device DIO Connector (PNP) 6-48V DC DIO_VDC (Pin 20) DO (Pin 11-18) DIO_GND (Pin 10, 19) ©Vecow ECX-2000 User Manual Appendix A...
  • Page 175 Header folder include head file for software developer or System Integration. Manual folder include API description. Sample folder include sample program, driver library, and API library for Windows/ Linux Source folder include sample program source code that compile on Visual Studio 2008/ubuntu16.04. ©Vecow ECX-2000 User Manual Appendix A...
  • Page 176 A.4 Sample Execute demo tool. Windows Linux Sample, as shown below : Vecow_DIO Vecow_DIO_loopback Vecow_POE Vecow_WDT ©Vecow ECX-2000 User Manual Appendix A...

  • Page 177: Appendix B : Software Functions

    APPENDIX B : Software Functions B.1 Driver API Guide In Header folder, Vecow.h and VecowLinux.h contain usabled API for Windows/Linux. BOOL initial_SIO(BYTE Isolate_Type, BYTE DIO_NPN) Initial machine for IO and watch dogtimer. Isolate_Type : DIO type. 1 : Isolated DIO;...
  • Page 178 BOOL get_GPIO1(WORD *GPIO_data) Get GPIO. GPIO_data ([15:0]) : GPIO state, pin setting by hexadecimal bitmask. 1 : High; 0 : Low. Return : TRUE (1) : Success. FALSE (0) : Fail (Initial error or hardware problem). ©Vecow ECX-2000 User Manual Appendix B...
  • Page 179 FALSE (0) : Fail (Driver not exists, or version is too old, or out of range error). BOOL get_POE_configuration(BYTE ID, BYTE *Auto, BYTE *Mask) Get POE configuration (by variable). ID : POE ID. Range : 0~15. ©Vecow ECX-2000 User Manual Appendix B...
  • Page 180 B. POE ([3:0]) : POE state, pin setting by hexadecimal bitmask. 1 : On; 0 : Off. Return : TRUE (1) : Success. FALSE (0) : Fail (Initial error, or out of range error, or hardware problem). ©Vecow ECX-2000 User Manual Appendix B...
  • Page 181 1. Please select SATA device to RAID mode on BIOS menu. Advanced → SATA Configuration → SATA Mode Selection → Intel RST Premium → Save Changes and Reset. 2. Into BIOS menu again, select Intel(R) Rapid Storage Technology on BIOS menu. ©Vecow ECX-2000 User Manual Appendix C...
  • Page 182 3. Select Create RAID Volume on BIOS menu. 4. Select disks to create RAID Volume then Save Changes and Reset to install OS with EFI mode. ©Vecow ECX-2000 User Manual Appendix C...
  • Page 183 The RAID environment has been done if you completed the steps above. C.5 To Insert SATA HDD for RAID 1 Please note, you can use two SATA ports for SATA HDD, except for mSATA slot. ©Vecow ECX-2000 User Manual Appendix C...
  • Page 184 Let's take RAID 1 as an example, select "RAID 1". C.7 Disk Management : Partition the Disk After RAID 1 volume is created, you can see the figure of SATA device allocation. You will find "Volume_0000" in SATA device at BIOS menu. ©Vecow ECX-2000 User Manual Appendix C...
  • Page 185 Then add "Logical Device" for Windows access. C.8 If One SATA HDD on RAID Volume is Out-of-use After RAID 1 volume is created, you can see the figure of SATA device allocation. HDD CAUTION Sign ©Vecow ECX-2000 User Manual Appendix C...
  • Page 186 A warning will pop-up to ask you if the disk is not a member of the original RAID volume. If you press "Rebuild", it will replace the broken SATA HDD to the last SATA HDD of RAID volume. ©Vecow ECX-2000 User Manual Appendix C...
  • Page 187 USB Mouse HP G1K28AA USB-6 USB Keyboard AOPEN CMS-730 SATA 0 Innodisk 3MG2-P DGS25-64GD81BC1QC 64GB SATA 1 FORESEE S903S256G 256GB Graphics Output Power Plan Balance (Windows10 Power plan) Power Source Chroma 62006P-100-25 Test Program BurnInTest ©Vecow ECX-2000 User Manual Appendix D...
  • Page 188 3D Input Current Consumption Current Consumption Core™ i7- 4.139A 37.25W 4.372A 39.35W 10700TE Core™ i7- 3.090A 37.08W 3.232A 38.78W 10700TE Core™ i7- 1.595A 38.28W 1.689A 40.54W 10700TE Core™ i7- 0.826A 41.30W 0.869A 43.45W 10700TE ©Vecow ECX-2000 User Manual Appendix D...
  • Page 189 3D Input Current Consumption Current Consumption Core™ i5- 5.133A 46.20W 5.431A 48.88W 10500E Core™ i5- 3.900A 46.80W 3.996A 47.95W 10500E Core™ i5- 2.015A 48.36W 2.020A 48.48W 10500E Core™ i5- 1.020A 51.00W 1.064A 53.20W 10500E ©Vecow ECX-2000 User Manual Appendix D...
  • Page 190 3D Input Current Consumption Current Consumption ® Xeon 7.913A 71.22W 8.075A 72.68W W-1270E Xeon ® 5.552A 66.62W 5.769A 69.23W W-1270E ® Xeon 2.877A 69.05W 2.894A 69.46W W-1270E ® Xeon 1.409A 70.45W 1.460A 73.00W W-1270E ©Vecow ECX-2000 User Manual Appendix D...
  • Page 191 3D Input Current Consumption Current Consumption ® Xeon 8.815A 79.34W 8.987A 80.88W W-1290E Xeon ® 6.568A 78.82W 6.602A 79.22W W-1290E ® Xeon 3.306A 79.34W 3.355A 80.52W W-1290E ® Xeon 1.619A 80.95W 1.695A 84.75W W-1290E ©Vecow ECX-2000 User Manual Appendix D...
  • Page 192 Burn-in Flash Remove Channel Sleep Hibernate Reboot CPU-Z Test Test BIOS Battery PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS PASS (SODIMM_1) PASS PASS PASS PASS PASS PASS (SODIMM_2) ©Vecow ECX-2000 User Manual Appendix E...
  • Page 193 Brand Info (Celsius) KINGSTON 16GB DDR4-2666 SODIMM KSM26SED8/16ME 25ºC SL LINK 8GB DDR4-3200 SODIMM J48GDH1G8TMJC 25ºC SMART 32GB DDR4-3200 SODIMM ST4097SO420825SA 25ºC Innodisk 32GB DDR4-3200 SODIMM M4D0-BGS2QCEM-H03 25ºC Innodisk 32GB DDR4-3200 SODIMM M4D0-BGS2Q5EM-H03 25ºC ©Vecow ECX-2000 User Manual Appendix E...
  • Page 194 M.2 2280 SATA PM31 256GB ST MEMXPRO 256GB FP28S-B5GTMS464C1 M.2 SATA M.2 2280 SATA PM31 512GB WT MEMXPRO 512GB FP28S-E1GTMS464W1 M.2 2280 SATA PT31 512GB WT MEMXPRO 512GB FP28S-E1GMTS594W1 M.2 (S80) 3TE7 Innodisk DEM28-01TDK1ECAQF-H03 ©Vecow ECX-2000 User Manual Appendix E...
  • Page 195 M.2 PCIe M.2 PCIe SSD DMD8TT01TB3E8DC1 M.2 (P80) 3TE2 Innodisk DEM28-01TM61ECAQF-H03 M.2 (P80) 3TE6 Innodisk DEM28-01TDD1ECAQF-H03 Exascend 1920GB EXP3M4D0019V2N8C0E M.2 (P80) 3TG3-P Innodisk DGM28-02TDA1ECBEH-H03 ** If more help is needed, please contact Vecow Technical Support.** ©Vecow ECX-2000 User Manual Appendix E...
  • Page 196 No part of this publication may be reproduced in any form or by any means, electric, photocopying, or recording, without prior authorization from the publisher. The rights of all the brand names, product names, and trademarks belong to their respective owners. © Vecow Co., Ltd. 2020. All rights reserved.
