1.4.1. Enabling the interface's video inputs (dip 2-3)

Only the enabled video inputs can be accessed when switching through the interface's video
sources. It`s recommended to enable only the required inputs for the disabled will be
skipped when switching through the video-interfaces inputs.

1.4.2. Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input "Camera-IN" while the
reverse gear is engaged.
Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF.
1.5.

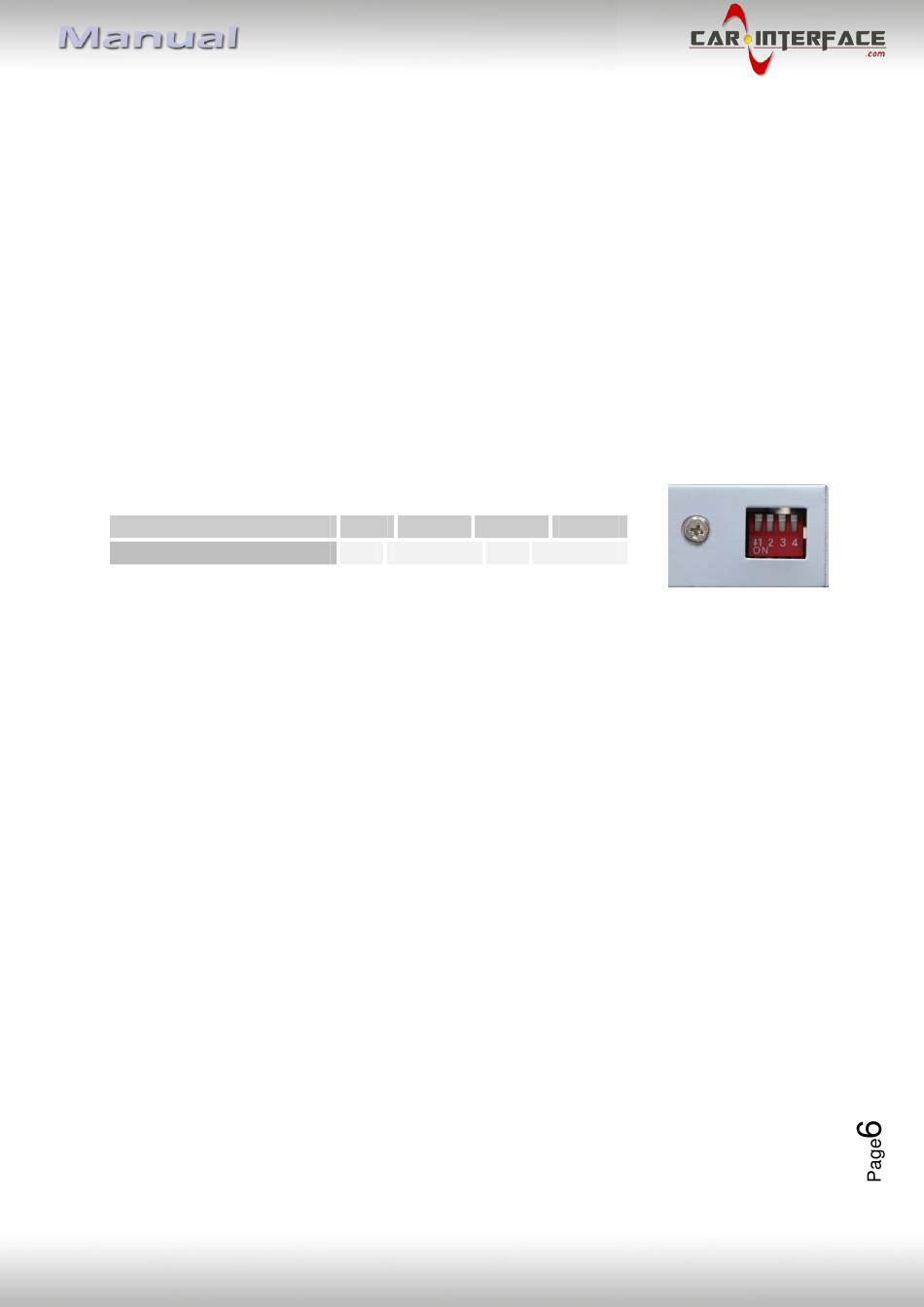

Settings of the 4 Dip switches (CAN function - red)

Dip position down is ON and position up is OFF.
Navigation / Sy5tem
R4.0 IntelliLink systems
Set all 4 dips to OFF.
After each Dip-switch-change a power-reset of the Can-box has to be performed!
Version 16.01.2018
Dip 1 Dip 2 Dip 3
OFF OFF OFF
HW:25-GD (V101)
Dip 4
OFF
CI-VL3-R40
