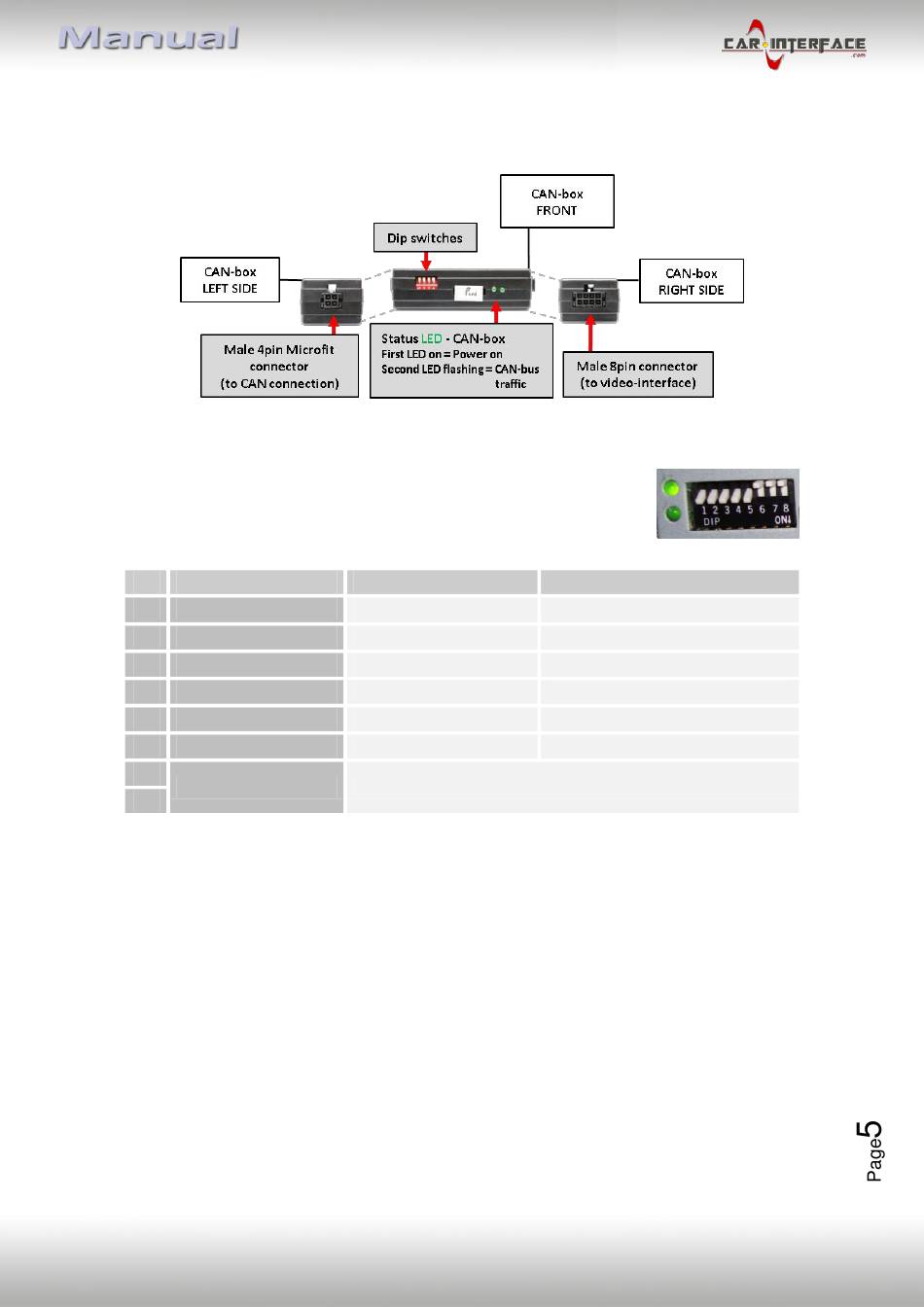

1.3.2. CAN-bus box

The CAN box reads the vehicle's digital signals out of the vehicle's CAN-bus and converts
them for the video interface.
1.3.2.1.

Dip-switch settings

Some settings must be selected by the dip-switches on the
video interface. Dip position down is ON and position up is OFF.
Dip Function
1 No function
2 CVBS AV1-input
3 CVBS AV2-input
4 No function
5 Rear-view cam type
6 No function
7
No function
8
See the following chapters for detailed information.
1.3.2.2.

Enabling the interface's video inputs (dip 2-3)

Only the enabled video inputs can be accessed by switching through the interface's video
sources. It is recommended to enable only the required inputs. So the disabled inputs will be
skipped while switching through the video interfaces inputs.
1.3.2.3.

Rear-view camera setting (dip 5)

If set to OFF, the interface switches to factory LVDS picture while the reverse gear is engaged
to display factory rear-view camera or factory optical park system picture.
If set to ON, the interface switches to its rear-view camera input while the reverse gear is
engaged.
Note: Dip 1, 4, 6, 7 and 8 are out of function and have to be set to OFF.
Version 01.02.2018
ON (down)
enabled
enabled
after-market
-
HW: 25-(V92),(V41)
OFF (up)
Set to OFF
disabled
disabled
Set to OFF
factory or none
Set to OFF
Set to OFF
CI-VL2-SY2-P
