Polycom RealPresence EduCart 500 Setup Sheet page 6

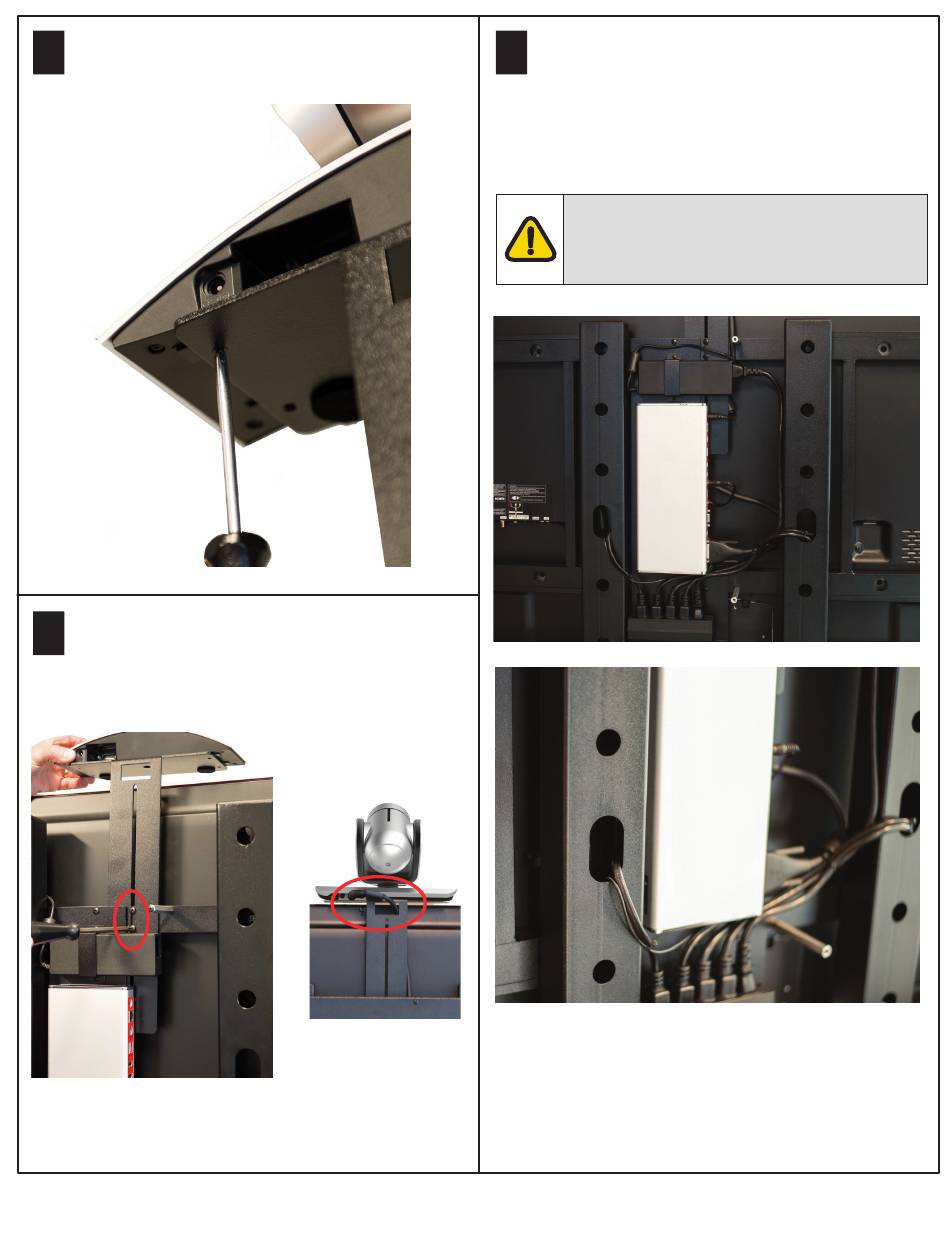

Attach the EagleEye IV camera to the camera
16
mounting bracket using four M3 x 6mm Phillips
flat head screws.
Loosen the two screws on the camera bracket
17
and lower the camera shelf to the top of the
display. Tighten the screws. Route the camera
cable behind the camera bracket and through
the hole.
Polycom® RealPresence® EduCart 500 Setup Sheet
TM
Attach and route the cables. Run the power cord
18
from the power bar, down the adjacent pole, and
exit the cord end at the hole at the bottom of the
pole. Run an ethernet cable the same way. Store
excess cable with the cable wrap bracket at the
bottom of the cart base. Refer to the wiring
diagram at the end of this document for details.
Only EduCart 500 components should be
plugged into the power outlet block. Do not
power any other electrical equipment from this
power outlet.
6
