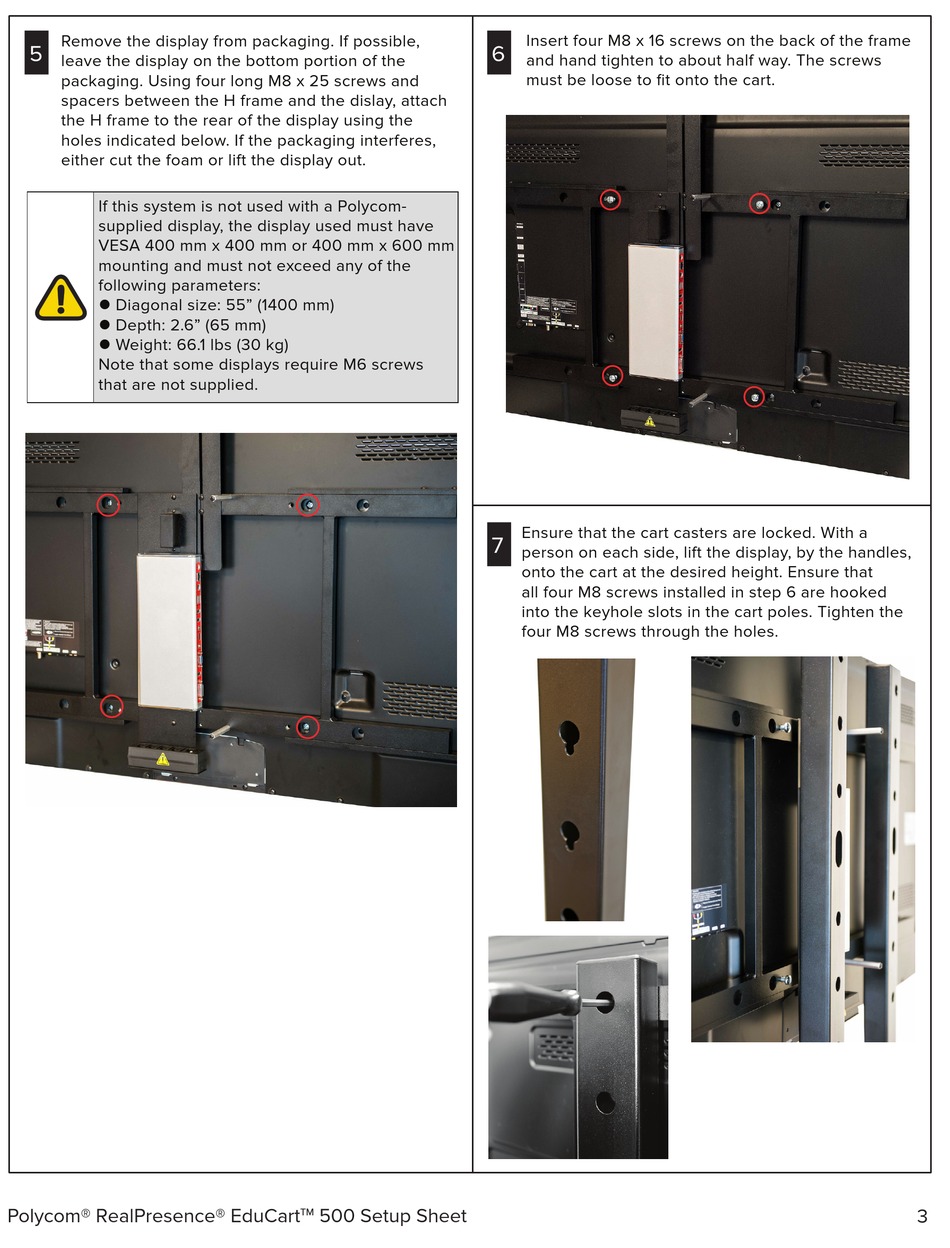

Polycom RealPresence EduCart 500 Setup Sheet page 3

Remove the display from packaging. If possible,
5
leave the display on the bottom portion of the
packaging. Using four long M8 x 25 screws and
spacers between the H frame and the dislay, attach
the H frame to the rear of the display using the
holes indicated below. If the packaging interferes,
either cut the foam or lift the display out.
If this system is not used with a Polycom-
supplied display, the display used must have
VESA 400 mm x 400 mm or 400 mm x 600 mm
mounting and must not exceed any of the
following parameters:
 Diagonal size: 55" (1400 mm)
 Depth: 2.6" (65 mm)
 Weight: 66.1 lbs (30 kg)
Note that some displays require M6 screws
that are not supplied.
Polycom® RealPresence® EduCart 500 Setup Sheet
TM
Insert four M8 x 16 screws on the back of the frame
6
and hand tighten to about half way. The screws
must be loose to fit onto the cart.
Ensure that the cart casters are locked. With a
7
person on each side, lift the display, by the handles,
onto the cart at the desired height. Ensure that
all four M8 screws installed in step 6 are hooked
into the keyhole slots in the cart poles. Tighten the
four M8 screws through the holes.
