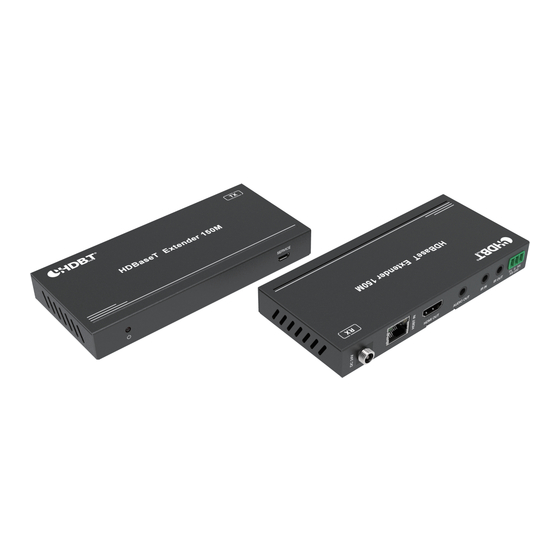

18Gbps HDMI over HDBaseT Extender
with Bi-directional IR (150M)
VER 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM-EX150HT and is the answer not in the manual?

Questions and answers

Related Manuals for LINK-MI LM-EX150HT

Summary of Contents for LINK-MI LM-EX150HT

  • Page 1 18Gbps HDMI over HDBaseT Extender with Bi-directional IR (150M) VER 1.0...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 394ft / 120 meters between transmitter and receiver via a single CAT5e/6 cable (Using CAT6a/7 cable extends up to 492ft / 150M). It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2.

  • Page 4: Package Contents

    3. Package Contents Item 18Gbps HDMI over HDBaseT Extender (Transmitter) 18Gbps HDMI over HDBaseT Extender (Receiver) IR Blaster cable (1.5 meters) 20~60KHz IR Receiver cable (1.5 meters) Mounting Ears 3-pin Phoenix connectors 24V/1A Locking Power adapter User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0...
  • Page 5 Connections Inputs: 1x HDMI Type A [19-pin female] 1x SERVICE [Mini-USB, Update port] Outputs: 1x HDMI Type A [19-pin female] Transmitter 1x HDBT OUT [RJ45, 8-pin female] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] Inputs: 1x HDBT IN [RJ45, 8-pin female]...

  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel SERVICE HDMI OUT HDMI IN IR IN IR OUT Name Function description Power LED Red LED indicates when the transmitter is powered. SERVICE port Firmware update port. DC 24V input for 24V 1A power adapter. Note that the extender supports PoC function, it means that either DC 24V transmitter or receiver is powered supply by 24V/1A power adapter,...

  • Page 7: Receiver Panel

    3-pin pluggable connector for RS-232 command tranmission. RS-232 The RS-232 command will pass-through from transmitter to receiver or receiver to transmitter. 5.2 Receiver Panel SERVICE IR IN IR OUT HDMI OUT AUDIO OUT Name Function description Power LED Red LED indicates when the receiver is powered. SERVICE port Firmware update port.

  • Page 8: Ir Pin Definition

    IR IN IR port input for receiving the signal of IR remote. IR port output for control of display device. This IR output IR OUT signal is from IR IN port of transmitter. 3-pin pluggable connector for RS-232 command tranmission. RS-232 The RS-232 command will pass-through from transmitter to receiver or receiver to transmitter.
  • Page 9 The following is IR system diagram about IR cable use method. TV remote DVD remote IR receiver cable CAT 5e/6 cable HDMI OUT HDMI IN IR IN IR OUT HDMI OUT AUDIO OUT IR IN IR OUT Transmitter Receiver IR blaster cable Note that IR remote sends signal distance for 0~5 meters / 0~8 meters, and angle is plus-minus 45 degrees / vertical direction .

  • Page 10: Application Example

    6. Application Example HDMI Matrix with RS-232 function DVD or Blu-ray Player Transmitter HDMI OUT HDMI IN IR IN IR OUT IR Blaster Power Supply IR Extender IR Extender CAT 5e/6 cable UHDTV IR Blaster Receiver HDMI OUT AUDIO OUT IR IN IR OUT UHDTV...
